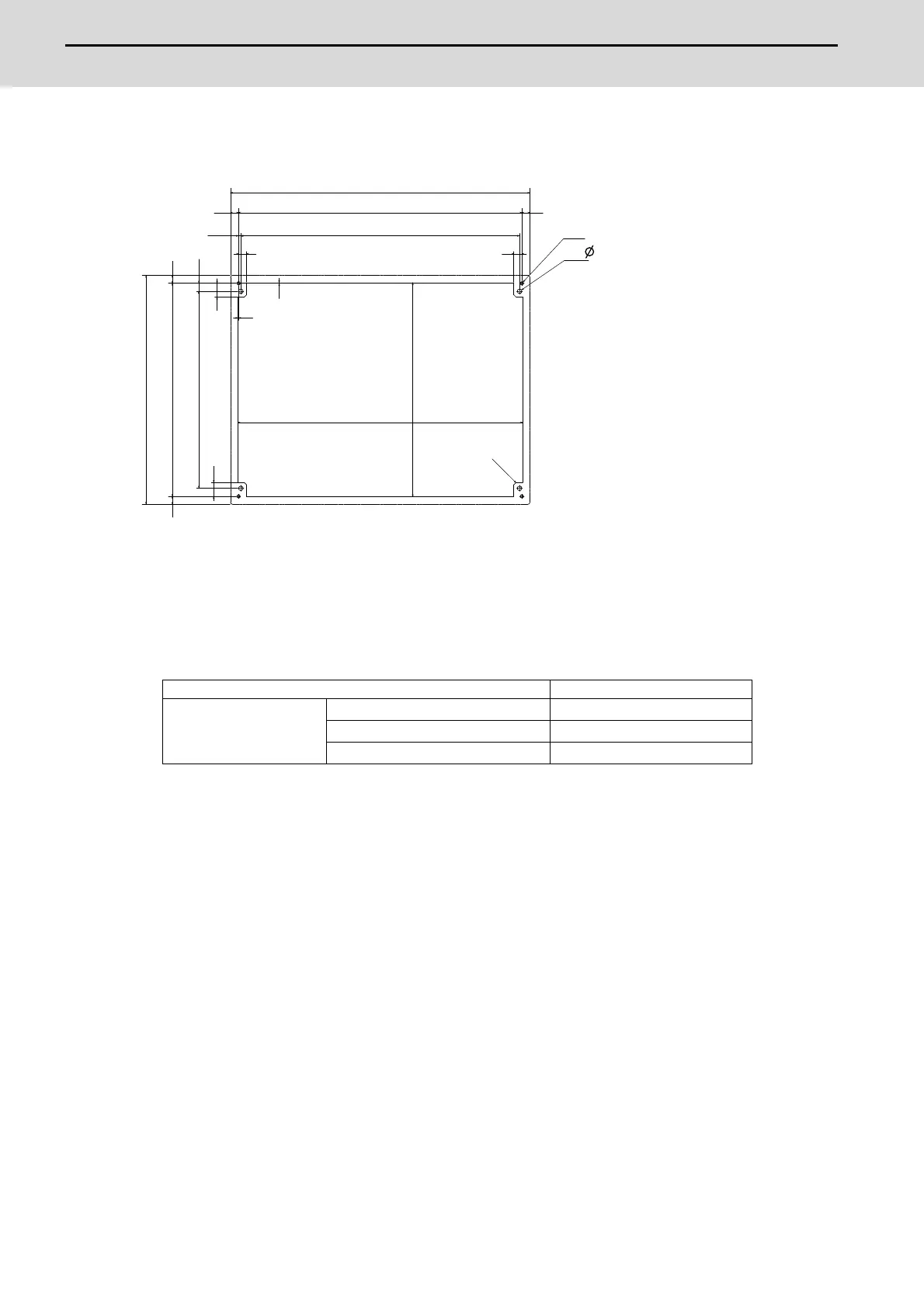

[Panel cut dimension]
4.9.2 Precautions
[Spot defect of LCD]
The display inspection standard at the time of shipment from MITSUBISHI is as follows.
Item Reference value
Spot defect
Bright spot defect
N ≦ 3
Black spot defect
N ≦ 3
Total number of defects
N ≦ 5
0.5
172±0.3 186±0.3
246±0.3
2±0.2
(7) (7)
12
12
[mm]
260
247
187
200
242±0.3
7
7
(7)(7)
7±0.2
4-C 2
4-M3
0.5
(Unit outline)
(Unit outline)
(Square hole dimension)
(Square hole dimension)
screw
4 - 4 holes
