M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
307
IB-1501269-J
10.9 Connecting with Analog I/O Signal (FCU8-DX202)

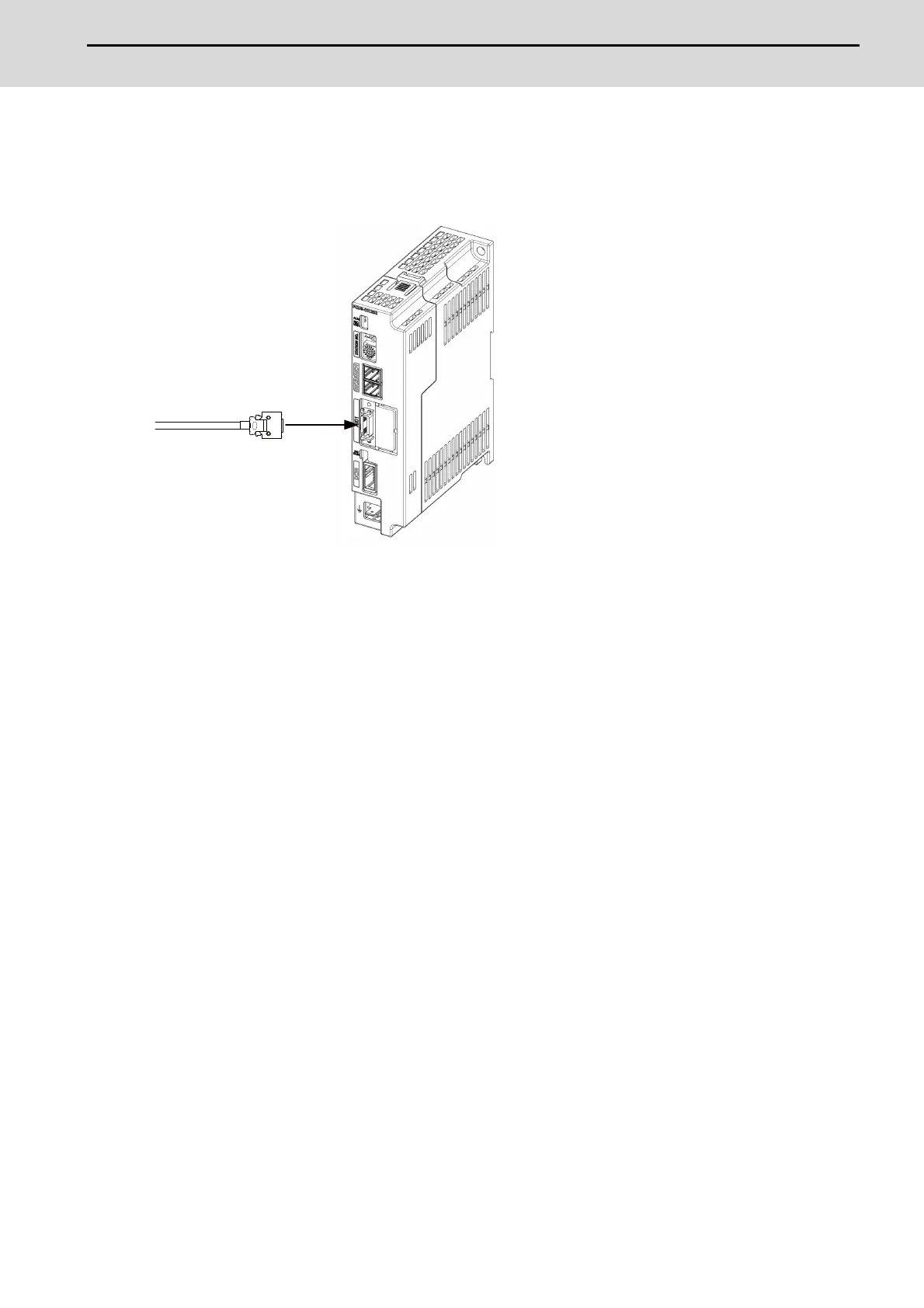

For the analog input/output signals, connect J221 cable to the AIO1 connector of FCU8-DX202. The analog input/output
signals are available to connect up to four points for the input, and up to one point for the output.
<Related items>
Cable drawing "Cable : J221 Cable"
Connector pin assignment: "General Specifications: Remote I/O Unit" (AIO1 connector)
