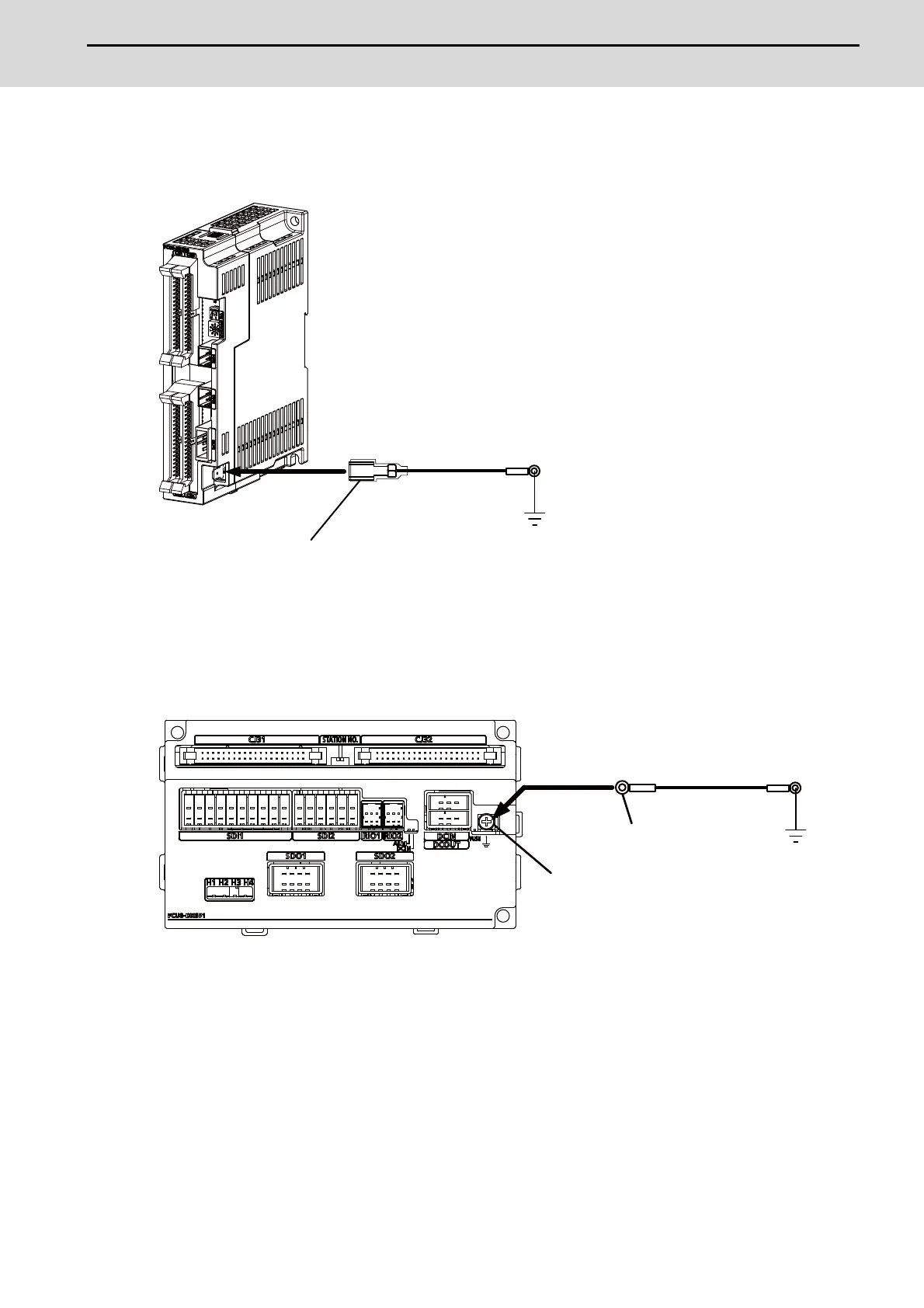

10.3 Connecting with Frame Ground
[FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 / FCU8-DX213 / FCU8-DX213-1 /
FCU8-DX654 / FCU8-DX654-1 / FCU8-DX408 / FCU8-DX409]
<Flat terminal type>
Flat terminal: 175021-1 / 175023-1
Protection cover: 174817-2
Recommended manufacturer : Tyco Electronics
[FCU8-DX651]
FG
Frame ground
250 Series flat terminal
FG
M4
Round terminal
screw
Frame ground
