Mitsubishi M800S series

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
100
IB-1501269-J

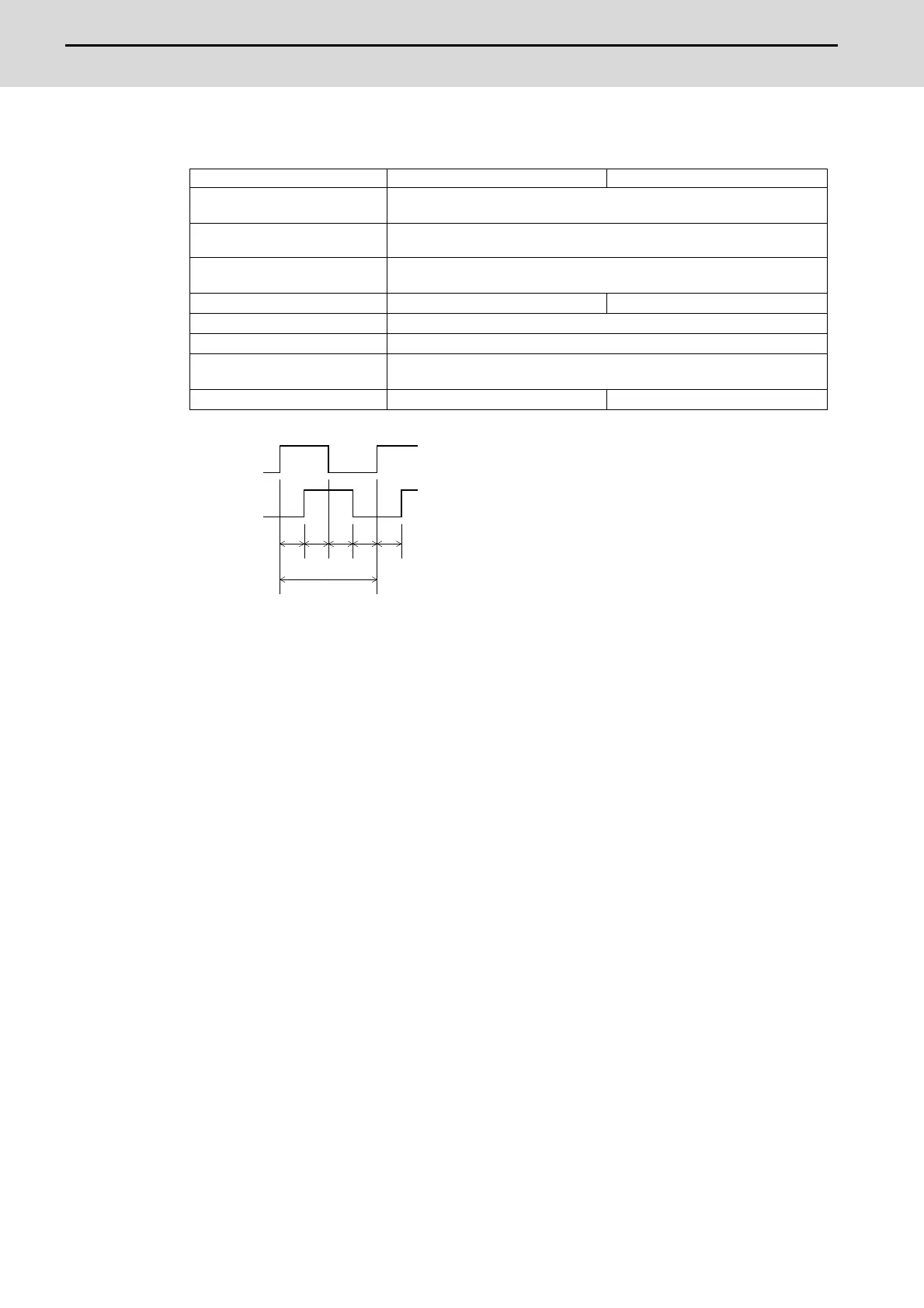

<Specification of input part>
a.b.c.d.e: A phase or B phase rising edge (falling edge) phase difference = T/4 ± T/10
T: A or B phase cycle
5V manual pulse generator 12V manual pulse generator
Number of pulse phases
Two phases (A phase, B phase, a phase difference 90 degrees)
(Refer to the waveform below.)
Signal output of manual pulse
generator
Open collector output
Signal voltage
H level 3.5V to 5.25V
L level 0V to 0.5V
Power supply voltage 5VDC±10% 12VDC±10%
Current consumption 100mA or less
Number of pulses per rotation 25 pulse/rev,100 pulse/rev
Input frequency (rotation speed)
1kHz or less (2400r/min or less for 25pluse/rev, 600r/min or less for 100pluse/
rev)
Cable length 20m or less 50m or less
T
b da c e
A
(B) phase
B(A) phase
