M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
104
IB-1501269-J

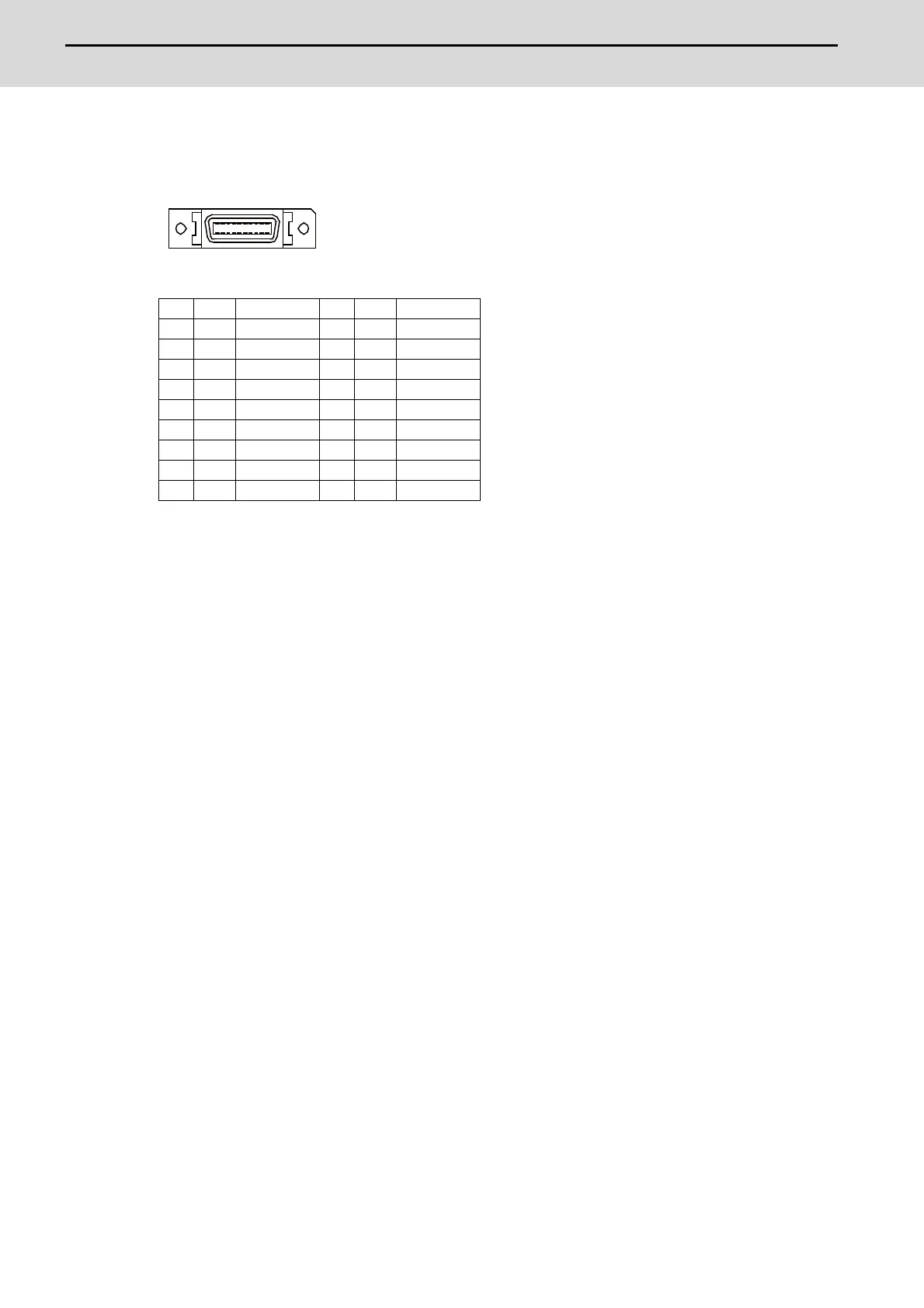

(18) AIO (Analog input, Analog output)
Analog input and analog output can be connected to this connector.
- Connect connector case with FG pattern.
<Cable side connector type>
Plug : 10120-3000PE
Shell : 10320-56F0-008
Recommended manufacturer : 3M
(Note) When using the jackscrew M2.6-type 10320-56S0-008-F for the shell, do not fasten the screws
too tightly otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
1 0V 11 0V
2 IAI0 12 NC
3 NC 13 NC
4 NC 14 NC
5 0V 15 0V
6 NC 16 NC
7 OAO 17 NC
8 NC 18 NC
9 0V 19 NC
10 NC 20 NC
To Next Page
