M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
132
IB-1501269-J

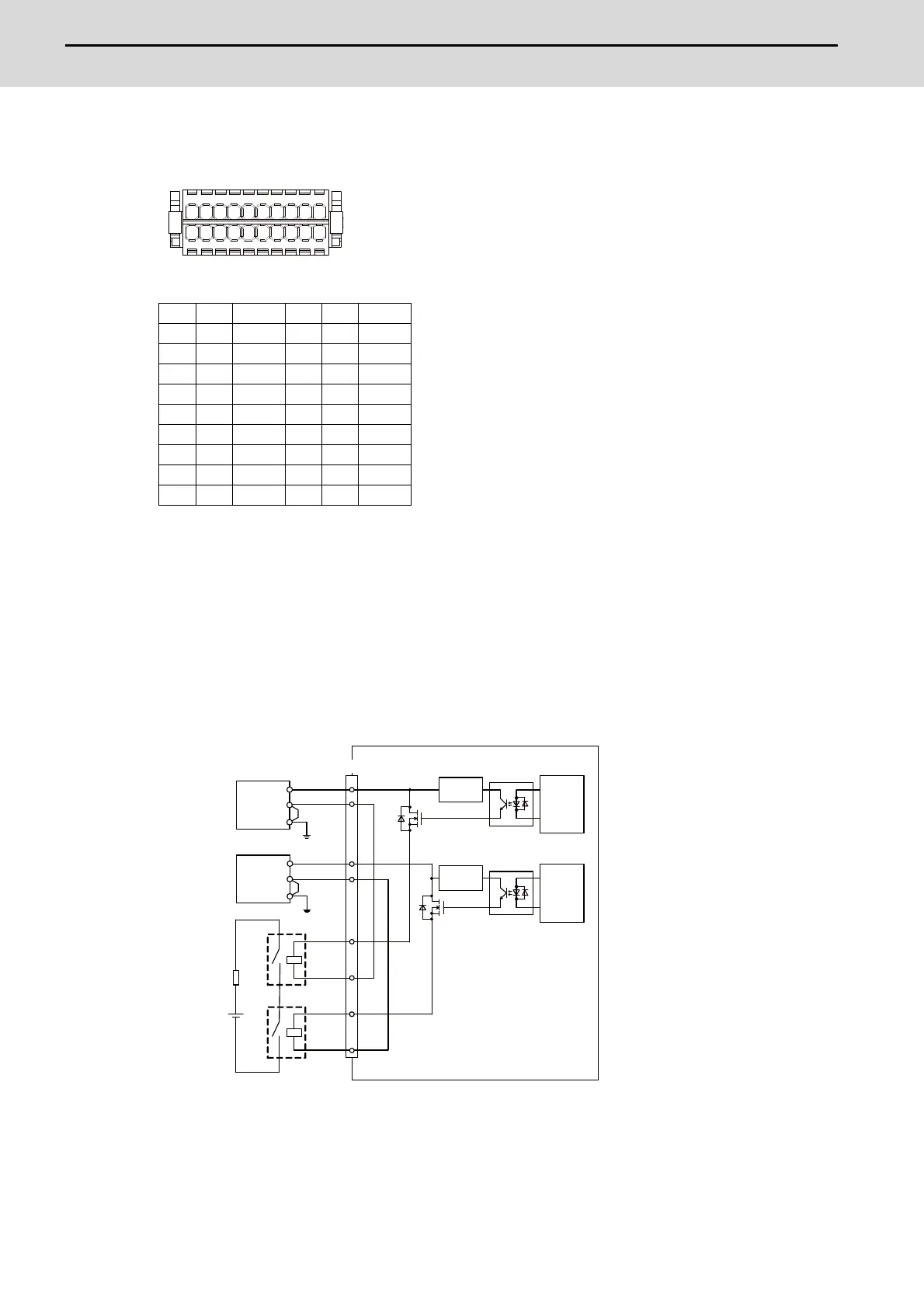

(8) SDO (Safety machine signal output)
<Cable side connector type>
Connector : 713-1110/037-000
Recommended manufacturer : WAGO
(The cable side connector is attached to the unit.)
(a) Outline of digital signal output circuit
Use within the specification ranges shown below.
Output circuit
10 I IO24VB 20 IO0VB
9 I IO24VA 19 IO0VA
8 O SY03B 18 COMB-
7 O SY03A 17 COMA-
6 O SY02B 16 COMB-
5 O SY02A 15 COMA-
4 O SY01B 14 COMB-
3 O SY01A 13 COMA-
2 O SY00B 12 COMB-
1 O SY00A 11 COMA-
101
11 20
|
IO0VB
IO24VA
IO0VA
IO24VB
SY0A
SY3A
COMA-
COMB-
0V
FG
SDO
|
SY0B
SY3B
0V
FG
Source output
Load
Stabilized
power supply
Control
circuit
24VDC(+)
Control
circuit
Safety relay
Safety relay
Voltage
conversion
Voltage
conversion
Stabilized
power supply
24VDC(+)
