M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
145
IB-1501269-J

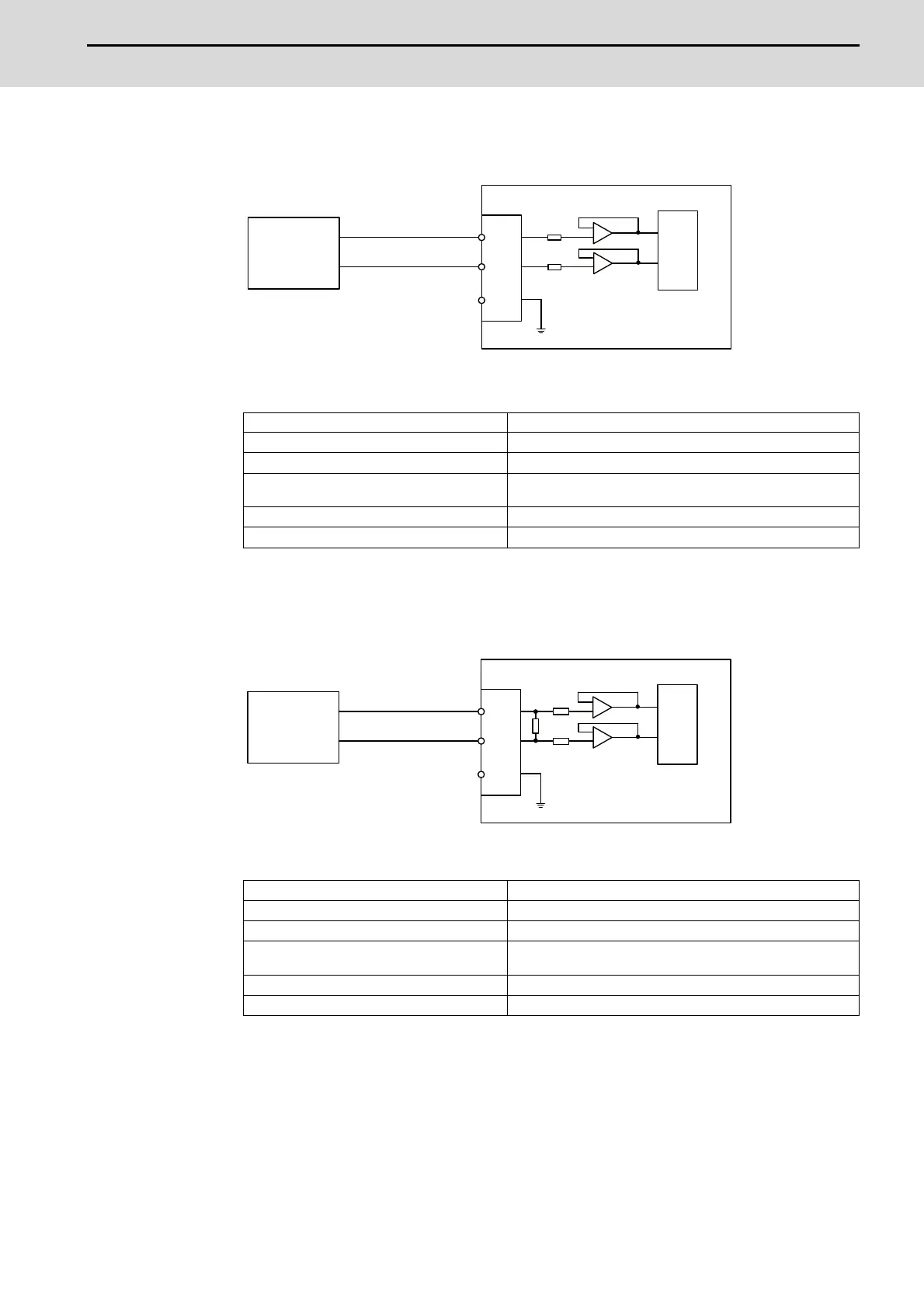

(a-1) Outline of voltage input circuit
Input circuit
Input conditions
Set the input signal within the range as shown in the conditions below.
(a-2) Outline of current input circuit
Input circuit
Input conditions
Set the input signal within the range as shown in the conditions below.
Input voltage range -10V to +10V
Max. input rating ±13V
Resolution |-10V to +10V| / 64000 = 312.5μV
Max. input delay (AI input to R register
output)
40ms
Disconnection detection function Not provided
Precision ± 0.5%FS (FS : Full Scale)
Input current range -20mA to +20mA
Max. input rating ±30mA
Resolution |-20mA to +20mA| / 32000 = 1.25μA
Max. input delay (AI input to R register
output)
40ms
Disconnection detection function Not provided
Precision ±0.5%FS (FS : Full Scale)
ADC
AI
V+
V-
FG
FG
FCU8-DX409
Voltage
source
ADC
AI
I+
I-
FG
FG
FCU8-DX409
Current
source
