Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
151
IB-1501269-J

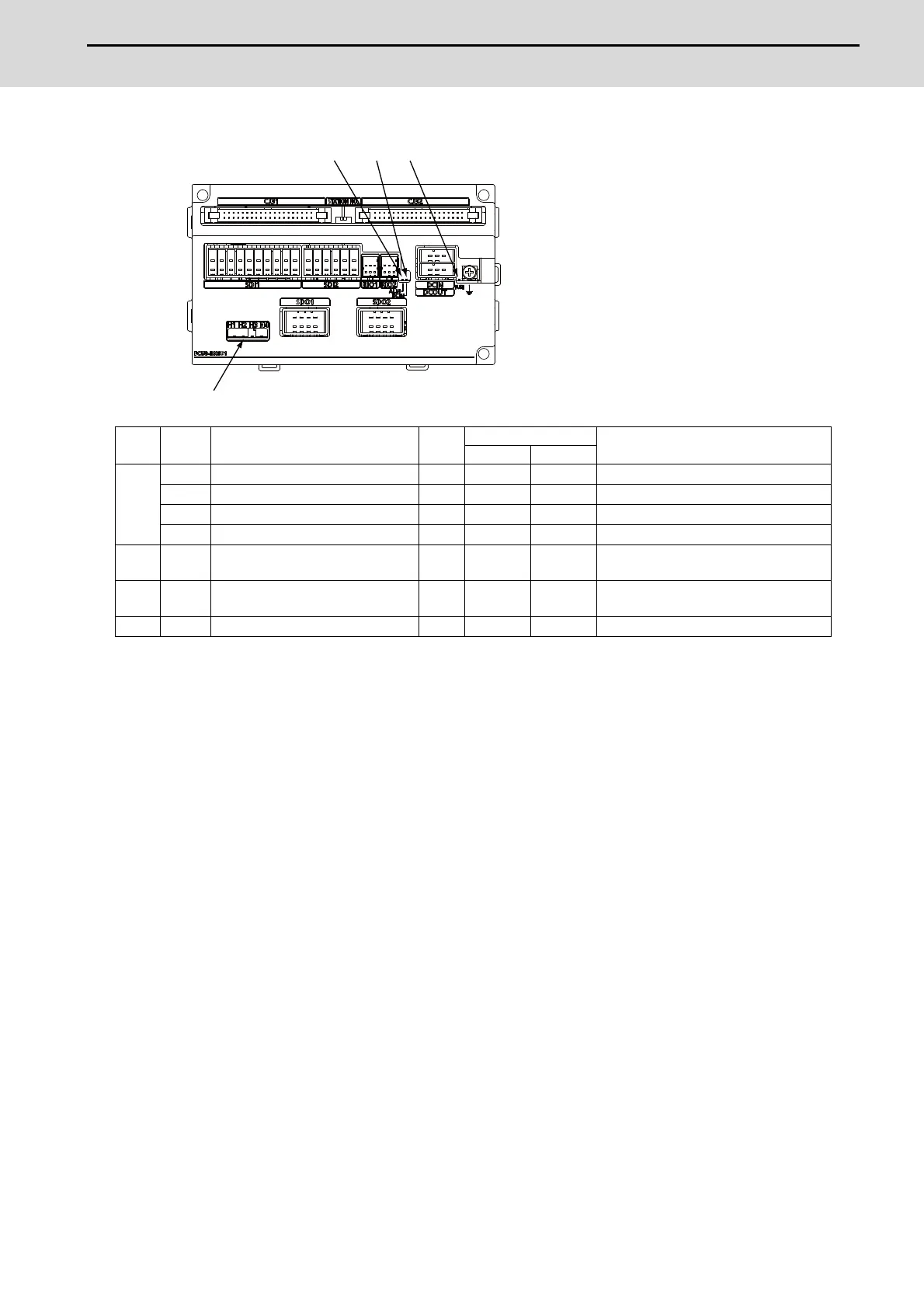

[LED : FCU8-DX651]
No. Name Function Color
Status
Details
Normal At fault
(1)
H1 Safety relay output SYR00 status Green Lit Not lit Not lit when a relay has been blown out.
H2 Safety relay output SYR01 status Green Lit Not lit Not lit when a relay has been blown out.
H3 Safety relay output SYR02 status Green Lit Not lit Not lit when a relay has been blown out.
H4 Safety relay output SYR03 status Green Lit Not lit Not lit when a relay has been blown out.
(2) ALM RIO communication error Red Not lit Lit
Lit when RIO communication error has
occurred.
(3) DCIN
Energization status of 24VDC input of
DCIN connector
Green Lit Not lit Lit when a current is applied.
(4) FUSE Fuse status Green Lit Not lit Not lit when a fuse has been blown out.
(1)
(4)(3)
(2)
