M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
160
IB-1501269-J

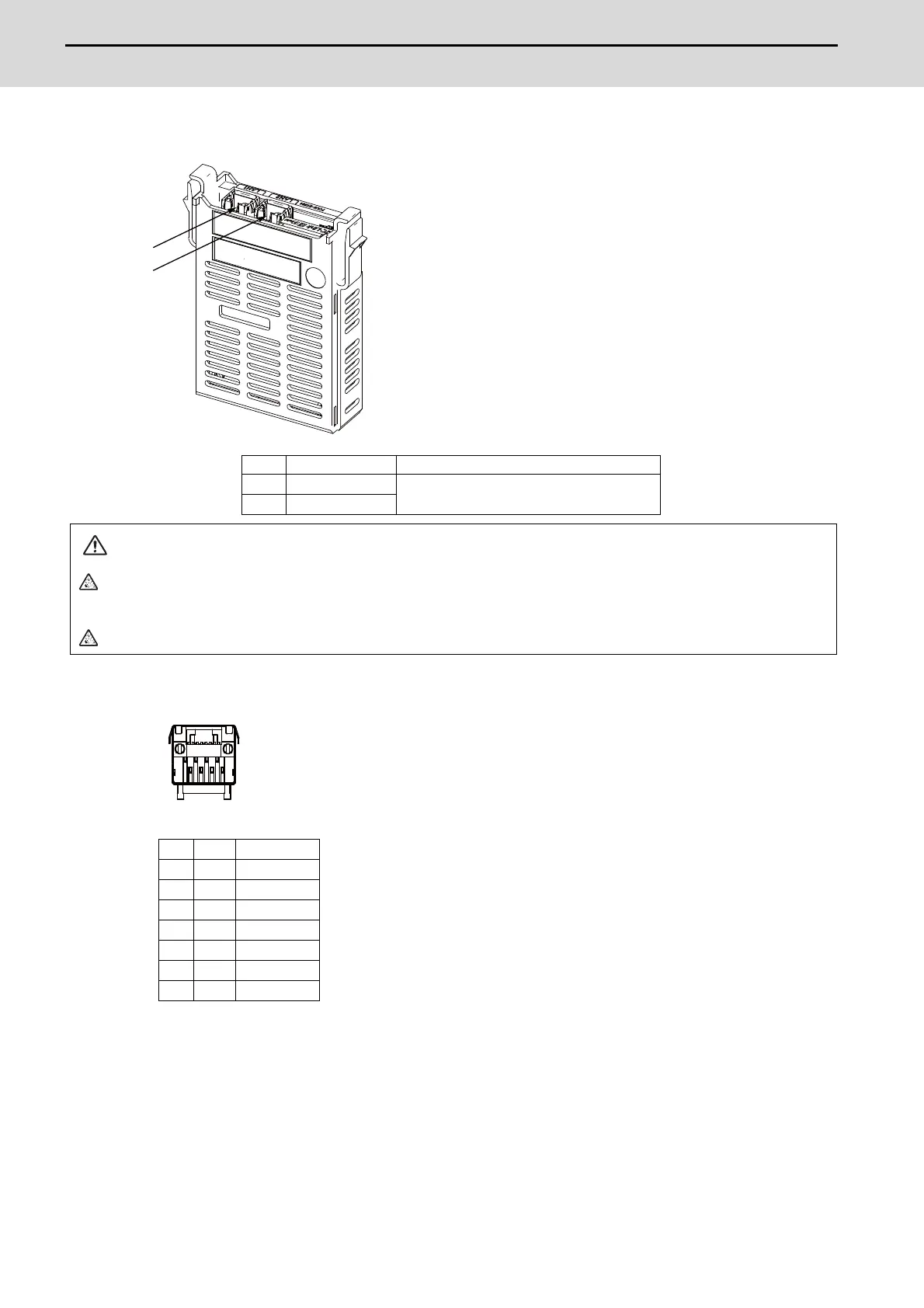

[Connector]
(1) LAN1 (CC-Link IE Field communication 1st channel)
(2) LAN2 (CC-Link IE Field communication 2nd channel)
- Connect connector case with FG pattern.
<Cable side connector type>
Connector : J00026A0165
Recommended manufacturer : Japan Telegartner
No. Connector name Function
(1) LAN1
CC-Link IE Field communication
(2) LAN2
CAUTION
Do not apply any voltage to the connectors other than voltage specified in this manual. Failure to observe this
could cause bursting, damage, etc.
Connect the cables to the designated connectors. Incorrect connections could damage the device.
1 I/O TXRXD0+
2 I/O TXRXD0-
3 I/O TXRXD1+
4 I/O TXRXD2+
5 I/O TXRXD2-
6 I/O TXRXD1-
7 I/O TXRXD3+
8 I/O TXRXD3-
(1)
(2)
81
