Mitsubishi M800S series

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
173
IB-1501269-J

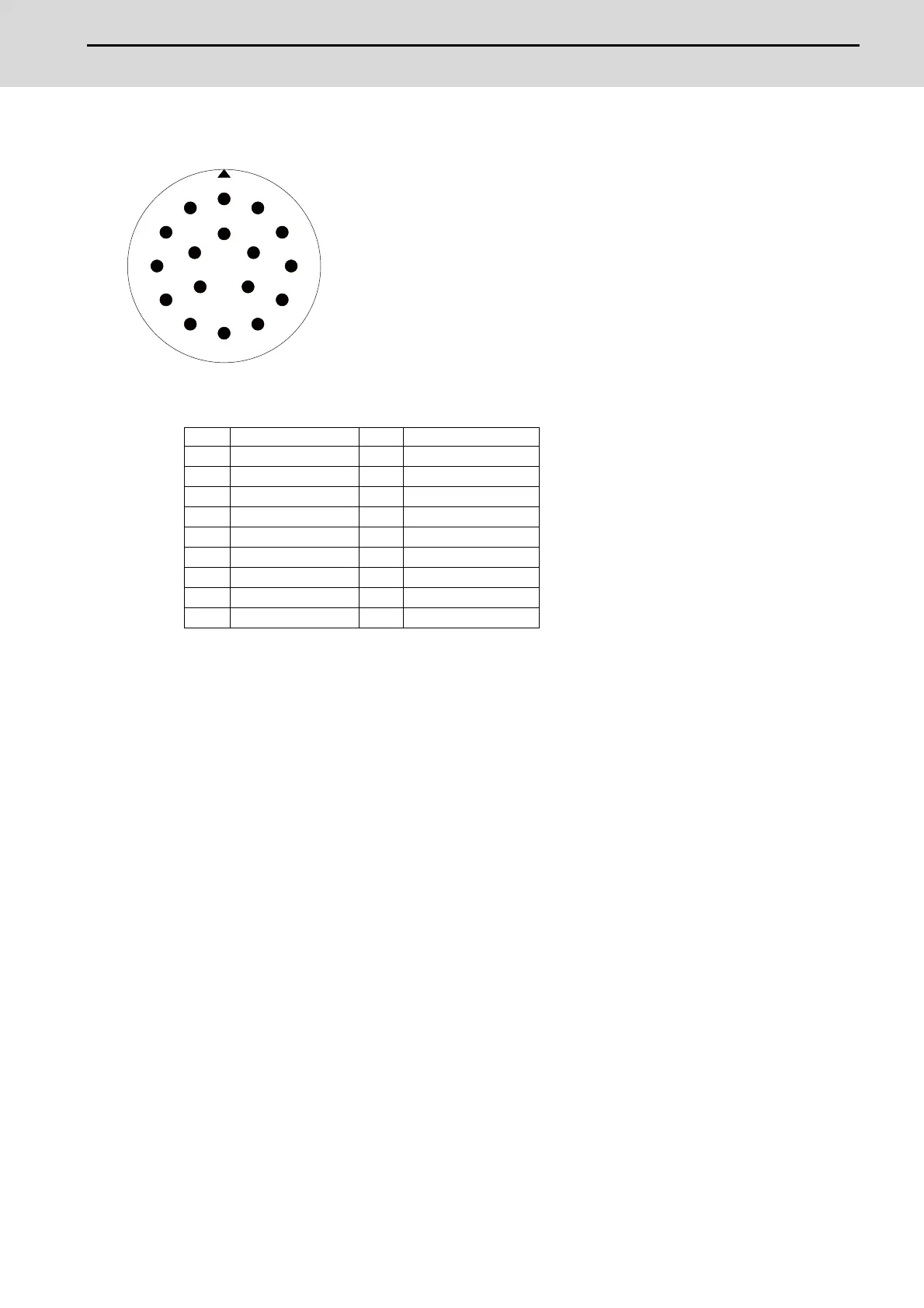

[Connector]
Connector pin assignment
Pin Function Pin Function
A A phase K 0V
B Z phase L -
C B phase M -
D - N A phase reverse
E Case grounding P Z phase reverse
F - R B phase reverse
G - S -
H +5V T -
J -
F
J
T
G
L
K
M
H
C
D
E
R
S
P
N
B
A
