Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
183
IB-1501269-J

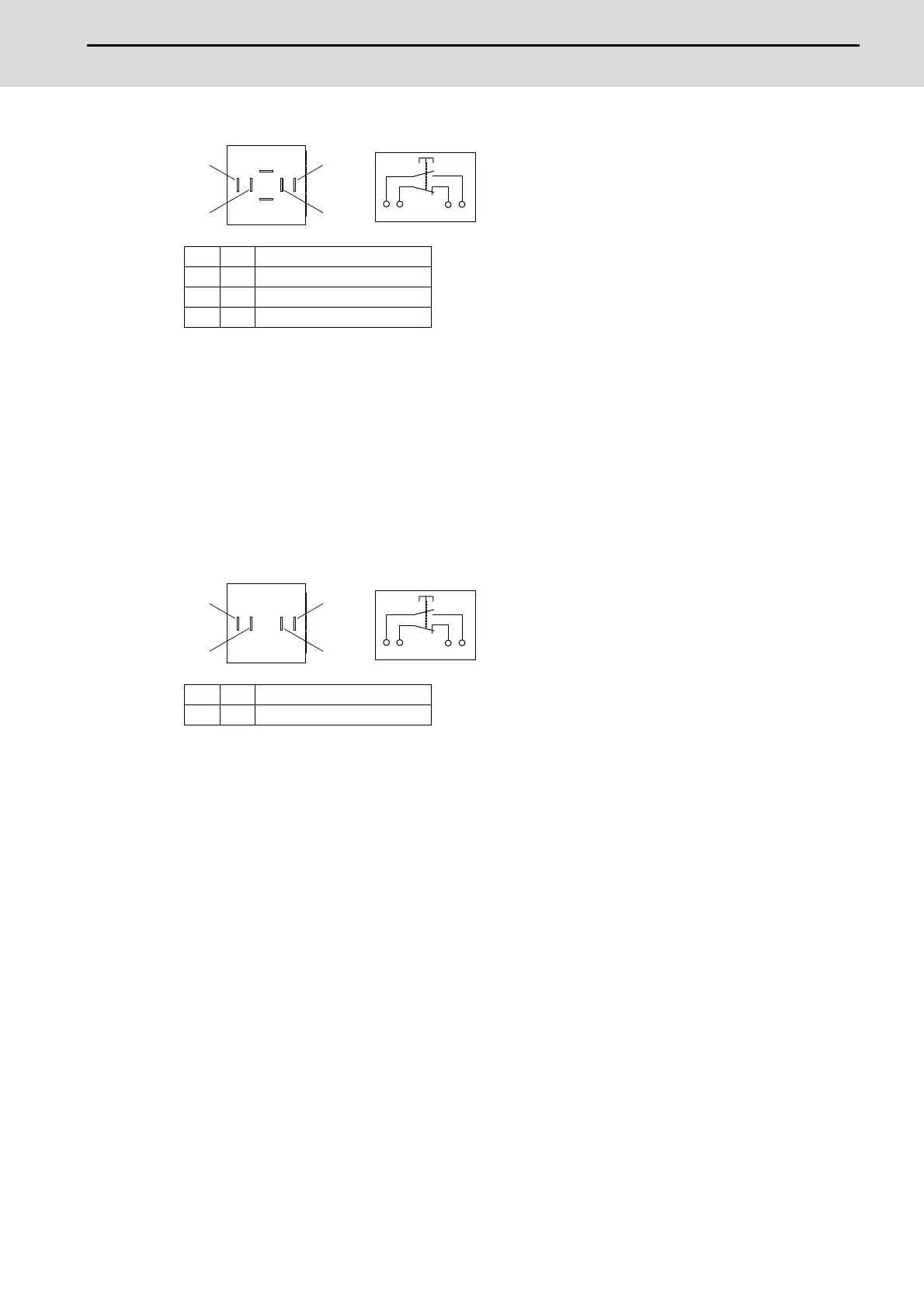

(4) ON switch
(Note) Connect LGCON terminal and ON terminal of G170 cable to NO terminal of ON switch.
<Switch type>
Switch : AH165-SLW11X3/0063
Recommended manufacturer : IDEC
Connection : Terminal
<Cable side connector type>
Connector: Faston terminal #110
Recommended manufacturer : -
(5) OFF switch
(Note) Contact LGCOFF terminal and OFF terminal of G170 cable to NO terminal of OFF switch.
<Switch type>
Switch : AH165-SLB11X3/0063
Recommended manufacturer : IDEC
Connection : Terminal
<Cable side connector type>
Connector: Faston terminal #110
Recommended manufacturer : -
a I Lamp terminal (+)
b O Lamp terminal (-)
NO O Contact 1 (A contact)
NC O Contact 2 (B contact)
NO O Contact 1 (A contact)
NC O Contact 2 (B contact)
NCNC
NO NO
b
a
NCNO NC NO
Switch
NCNC
NO NO
NCNO NC NO
Switch
