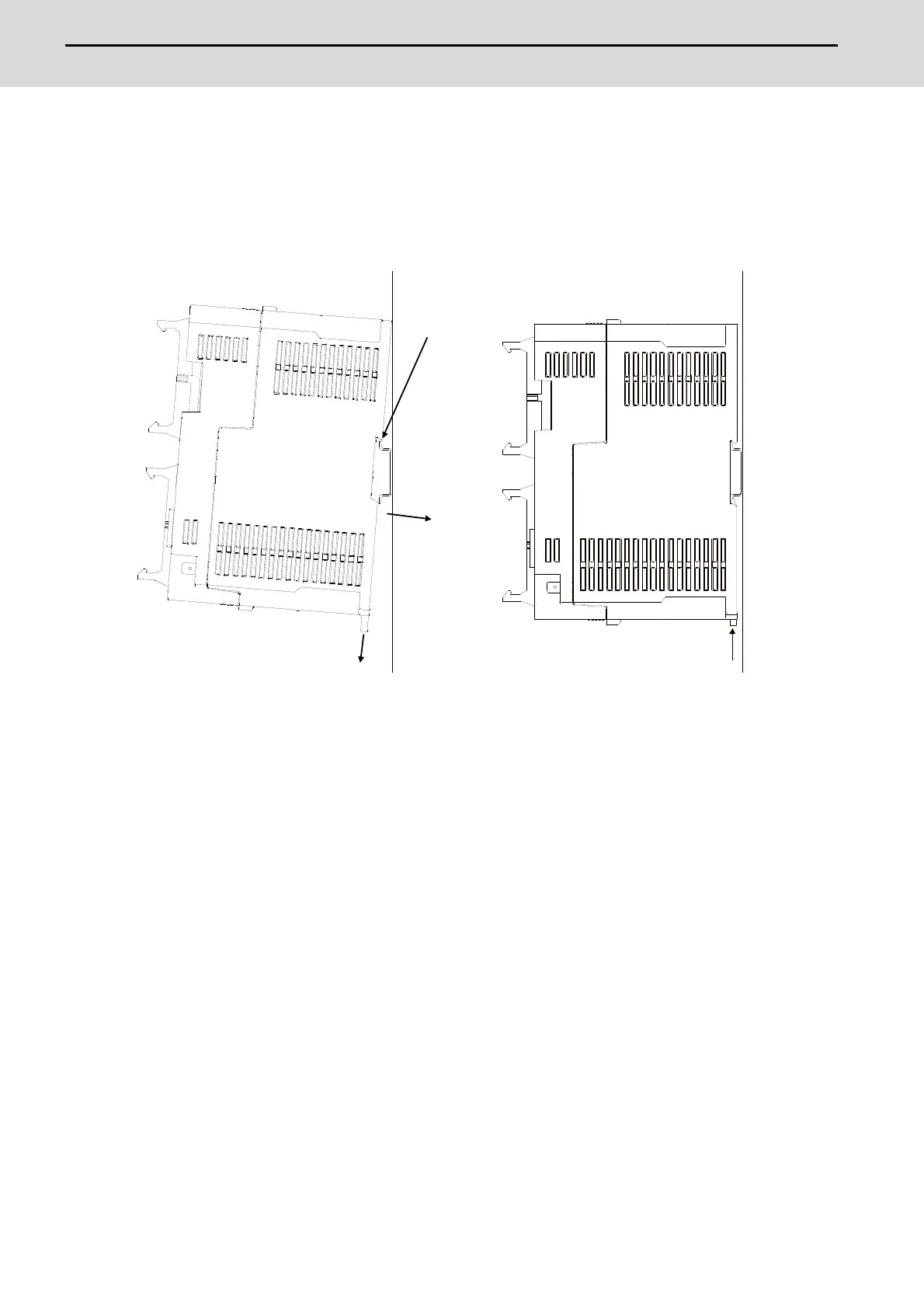

[Install to DIN rail]
(1) Set down the rail hook.
(2) Hook the upper latch of the unit on the DIN rail.
(3) Push the unit into the rail.
(4) Lock it.
Designate the type below as DIN rail standard
- TH35-7.5Fe : 7.5
- TH35-7.5AL : 7.5
- TH35-15Fe : 15
(1)
(2)
(3)
(4)
