M800S/M80/E80 Series Connection and Setup Manual

10 Connection of Remote I/O Unit

301

IB-1501269-J

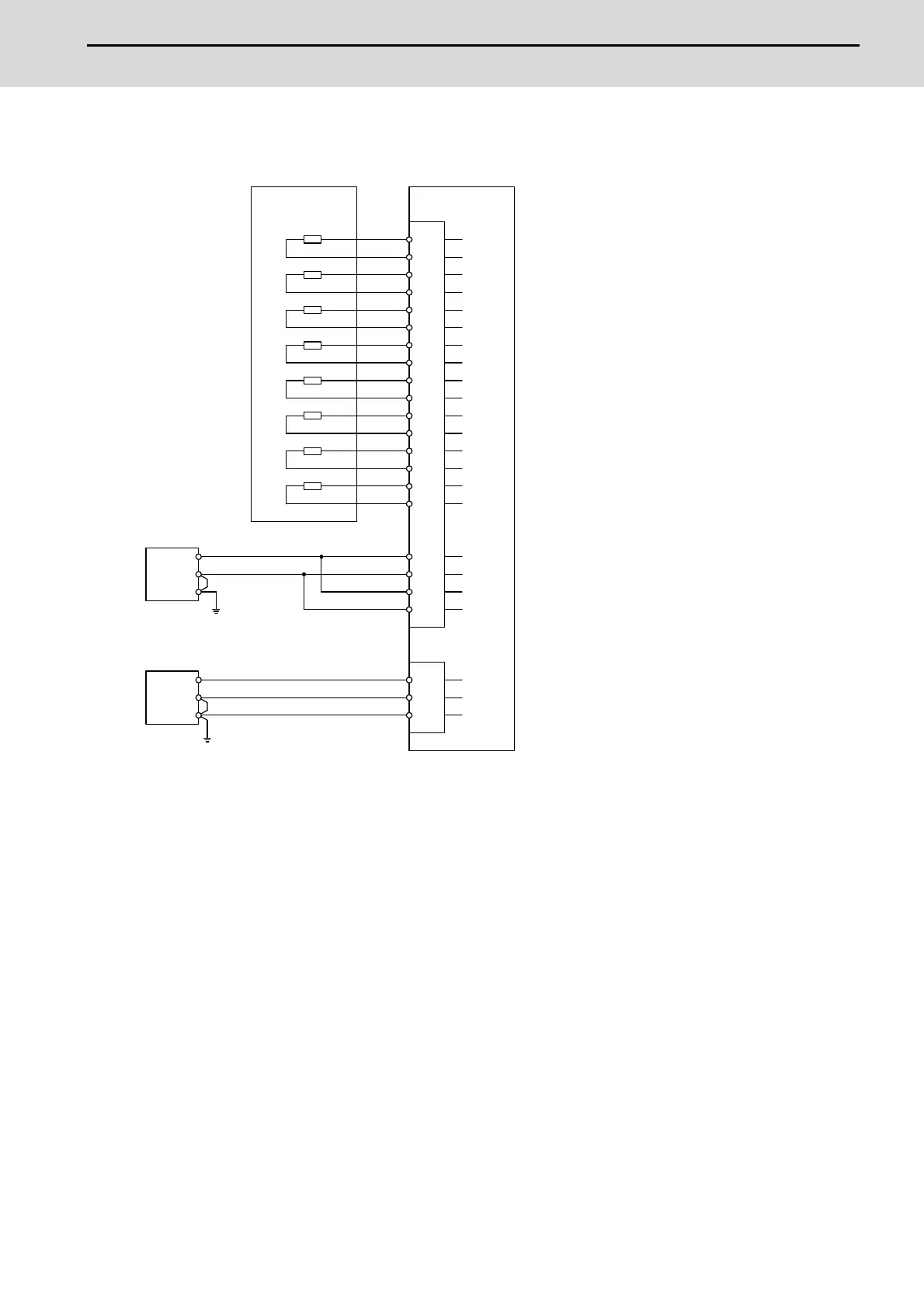

[Machine output : FCU8-DX213 / FCU8-DX213-1]

FCU8-DX213/213-1

Y01

COMB-

Y02

COMA-

Y03

COMB-

Y04

COMA-

Y05

COMB-

Y06

COMA-

Y07

COMB-

CJ36

Y00

COMA-

IO24VA

IO24VB

IO0VA

IO0VB

DCIN

+24V

24VDC(+)

Stabilized

power supply

Machine side

Stabilized

power supply
