M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
318
IB-1501269-J

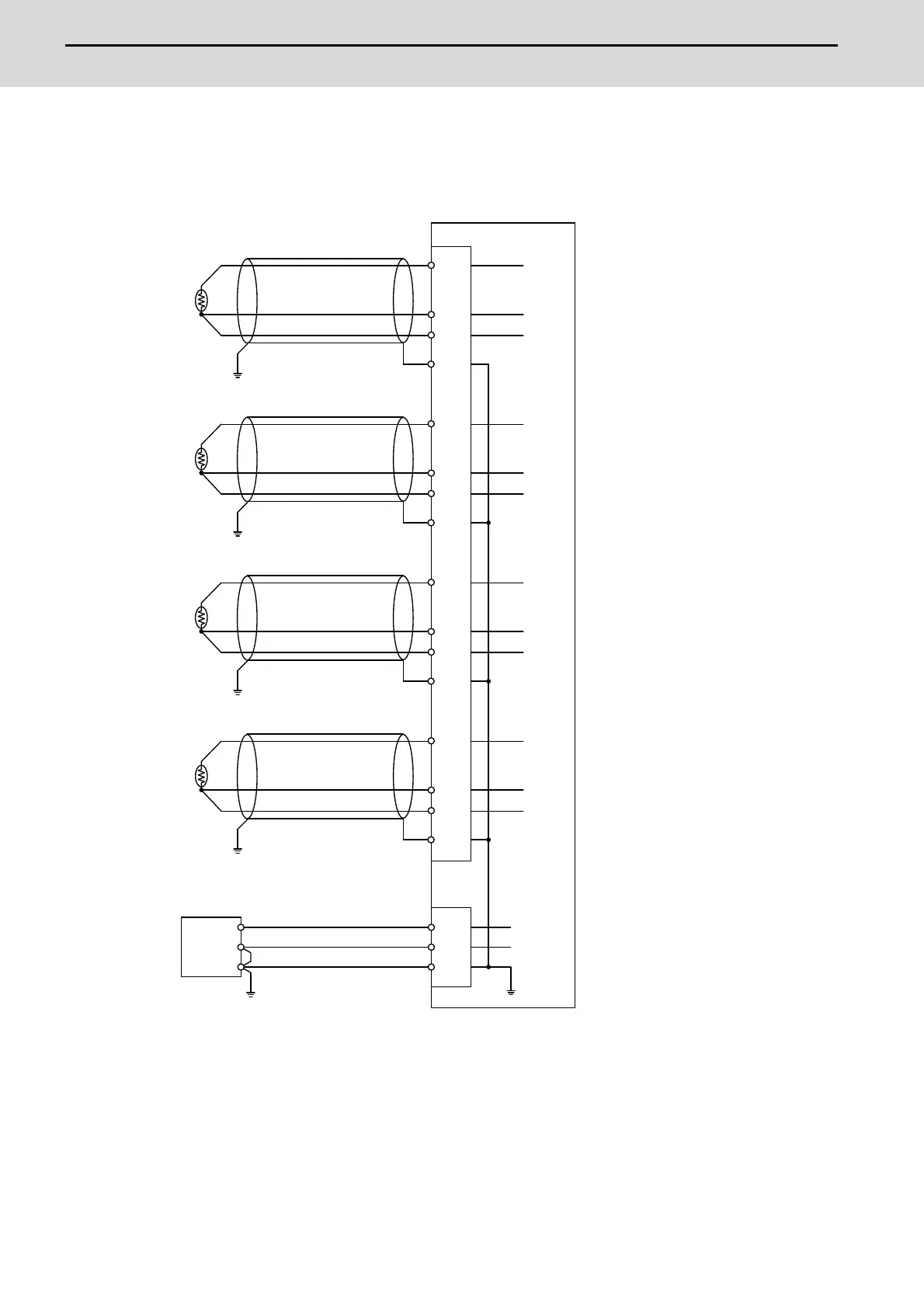

(d) Connecting with the resistance temperature detector input signal
There are 3-wire type and 4-wire type for the connecting method of resistance temperature detector.
- Use the twisted cable with shield to reduce the influence of noise.
- Connect the shield to FG pin of AI connector. Ground the cold junction compensation resistor side, too.
- Do not connect or disconnect the cables between units while the power is ON.
AI
3
1
FCU8-DX409
5
6
FG
A
B
b
CH1
7
12
9
10
FG
A
B
b
CH2
15
13
17
18
FG
A
B
b
CH3
19
24
21
22
FG
A
B
b
CH4
0V
FG
1
2
3
DCIN
0V
FG
+24V
FG
FG
FG
FG
24VDC(+)
<3-wire type>
Resistance
temperature
detector
Shield
Resistance
temperature
detector
Shield
Resistance
temperature
detector
Shield
Resistance
temperature
detector
Shield
