M800S/M80/E80 Series Connection and Setup Manual
11 Connection of Manual Pulse Generator
324
IB-1501269-J

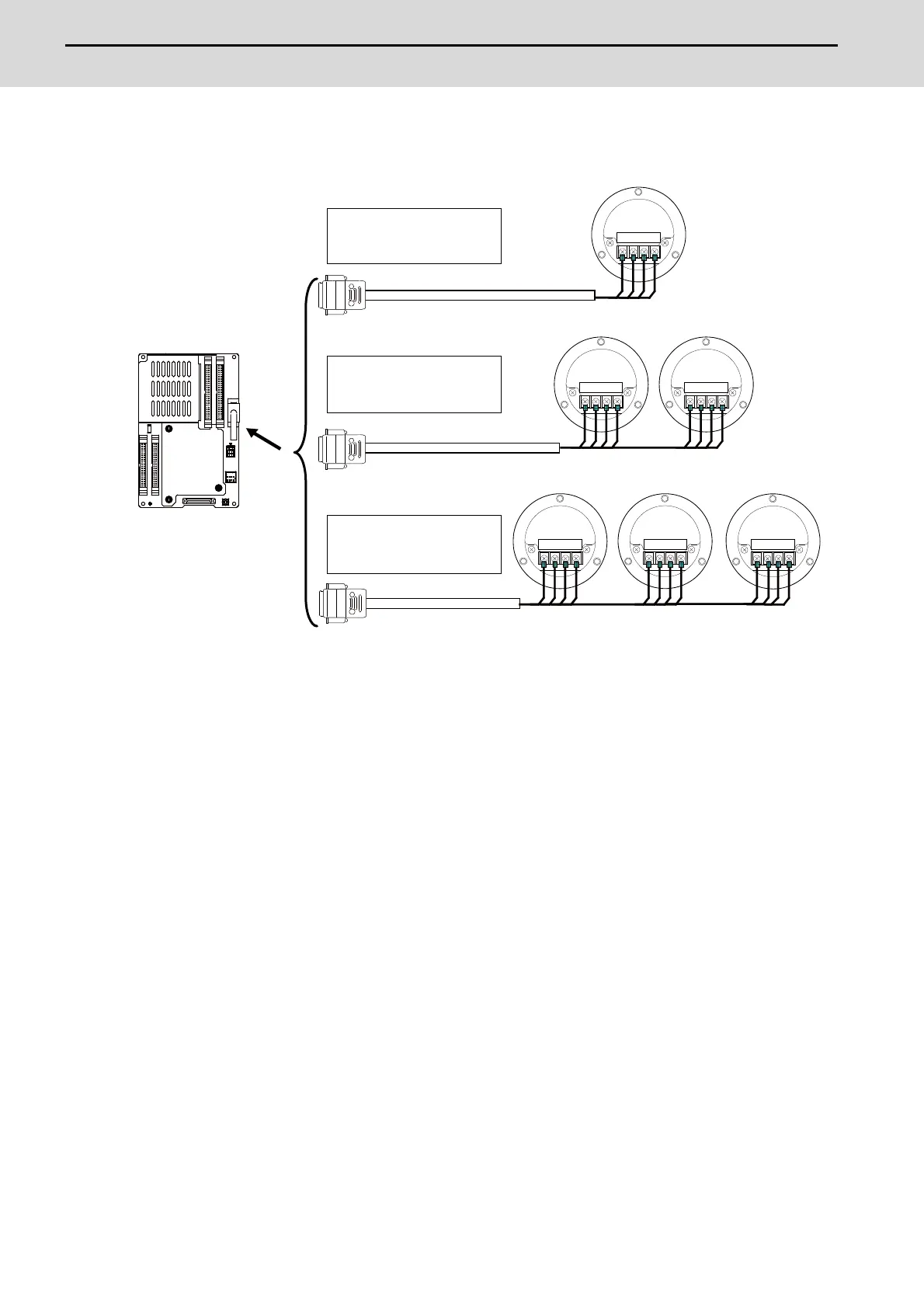

(2) 12V manual pulse generator (maximum cable length: 50m)
(Note 1) When selecting a manual pulse generator, make sure that its case and 0V terminal are insulated.
(Note 2) Select 25pulse/rev or 100pulse/rev on the parameter screen.
MPG
12V 0V A B
NO.1
NO.1NO.2
NO.2NO.3 NO.1
12V 0V A B 12V 0V A B
12V 0V A B 12V 0V A B 12V 0V A B
J020
J021
J022
12V manual pulse
generator
HD60C (Rear view)
When connecting three
12V manual pulse
generators
When connecting two
12V manual pulse
generators
When connecting one
12V manual pulse
generator
Operation panel
I/O unit
