Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
17 Setting the Hardware
396
IB-1501269-J

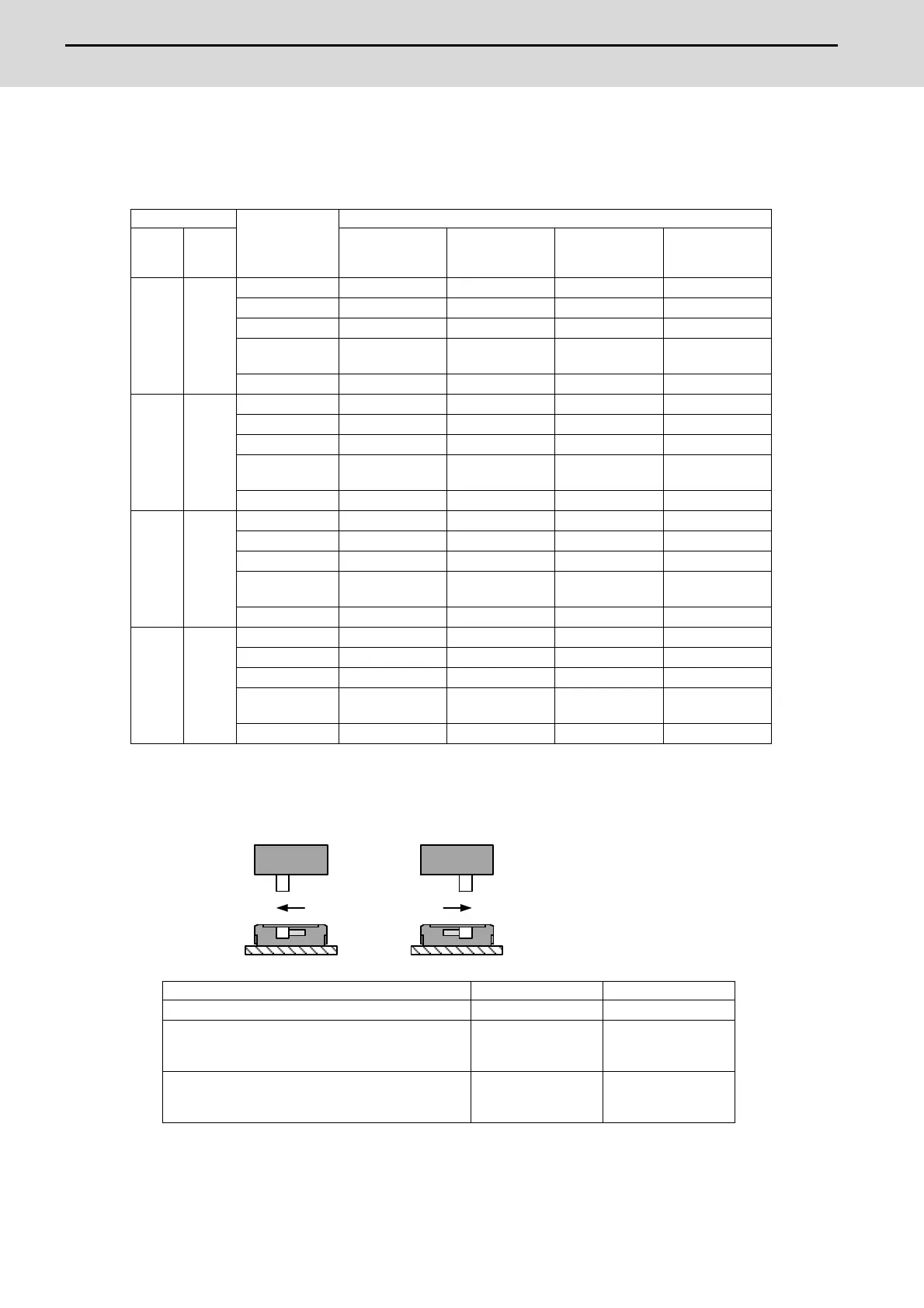

(Note 1) A remote I/O unit has two slide switches (station No. group setting switches) and one rotary switch
(station No. setting switch) for station No. setting, which link the device Nos. (with X/Y). Set the slide
switches and the rotary switch as follows.
The station Nos. of FCU8-DX561 can be set in two ways according to the slide switch (station No. setting
switch). Set the knob to the left for the station No. setting 1 and to the right for the station No. setting 2.
(Note 2) Refer to "17.6.4 PLC Device Assignment of Digital Signal (DI/DO)" for device No. assignment.
Slide switch
Rotary switch
Station No.
12
FCU8-DX213/
DX213-1/
DX220/DX202
FCU8-DX230/
DX231/
DX654/DX654-1
FCU8-DX408 FCU8-DX409
OFF OFF
0 1 1,2 1,2,3 1,2,3,4
1 2 2,3 2,3,4 2,3,4,5
2 3 3,4 3,4,5 3,4,5,6
：
：
：
：
：
：
：
：
：
：
F 16 16,17 16,17,18 16,17,18,19
OFF ON
0 17 17,18 17,18,19 17,18,19,20
1 18 18,19 18,19,20 18,19,20,21
2 19 19,20 19,20,21 19,20,21,22
：
：
：
：
：
：
：
：
：
：
F 32 32,33 32,33,34 32,33,34,35
ON OFF
0 33 33,34 33,34,35 33,34,35,36
1 34 34,35 34,35,36 34,35,36,37
2 35 35,36 35,36,37 35,36,37,38
：
：
：
：
：
：
：
：
：
：
F 48 48,49 48,49,50 48,49,50,51
ON ON
0 49 49,50 49,50,51 49,50,51,52
1 50 50,51 50,51,52 50,51,52,53
2 51 51,52 51,52,53 51,52,53,54
：
：
：
：
：
：
：
：
：
：
F 64 64,1 64,1,2 64,1,2,3
Device Station No. setting 1 Station No. setting 2
DI/DO Station No. 1 Station No. 4
Safety DI (SX00A to SX07A)
/Safety relay output (SY00A to SY03A)
/Relay feedback (SX08A to SX0BA)
Station No. 2 Station No. 5
Safety DI (SX00B to SX07B)
/Safety relay output (SY00B to SY03B)
/Relay feedback (SX08B to SX0BB)
Station No. 3 Station No. 6
Station No. setting 1 Station No. setting 2
