Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
44
IB-1501269-J

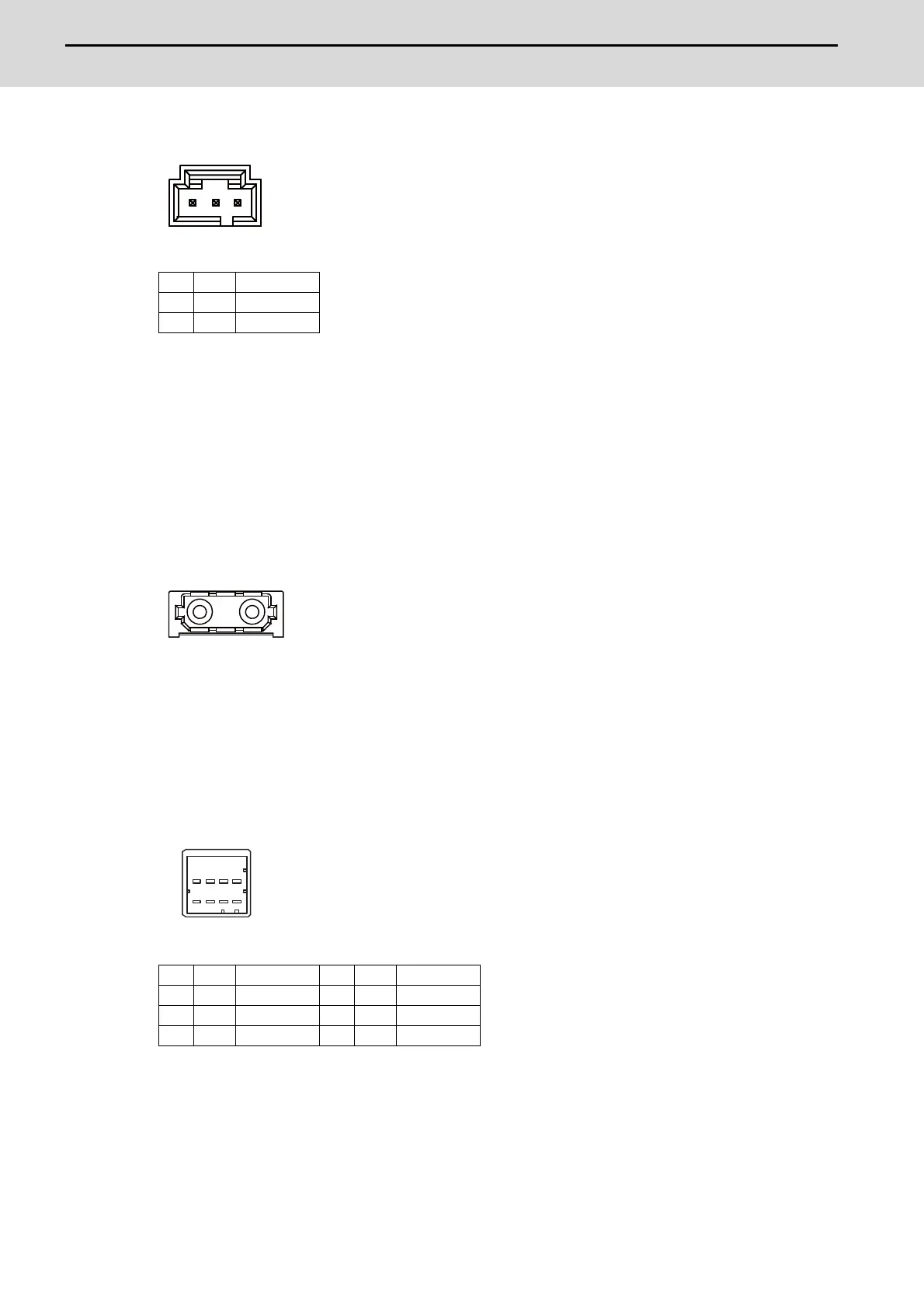

(7) EMG (External emergency stop input)
<Cable side connector type>
Connector : 50-57-9403
Contact : 0016020103
Recommended manufacturer : MOLEX
(Note) Use this when installing an emergency stop switch in the electric cabinet. Connect a terminator (G123
cable) when not using this connector.
(8) OPTH1 (High-speed optical servo communication 1st ch)
(9) OPTH2 (High-speed optical servo communication 2nd ch)
<Cable side connector type>
Connector : LGP-Z0007K
Recommended manufacturer : HONDA TSUSHIN KOGYO
(10) BAT (Battery I/F)
(11) CJ71 (Operation panel I/O unit I/F)
<Cable side connector type>
Connector : 2-1318119-4
Contact : 1318107-1
Recommended manufacturer : Tyco Electronics
1 FG
2 I EMG IN
3 O+24V
A1 I/O TXRXD B1 I/O TXRXD*
A2 - +5V B2 - +3.3V
A3 -- B3 -0V
A4 - FG B4 - 0V
123
1234
B
A
