7, CHECK USTS /MELSEC-A

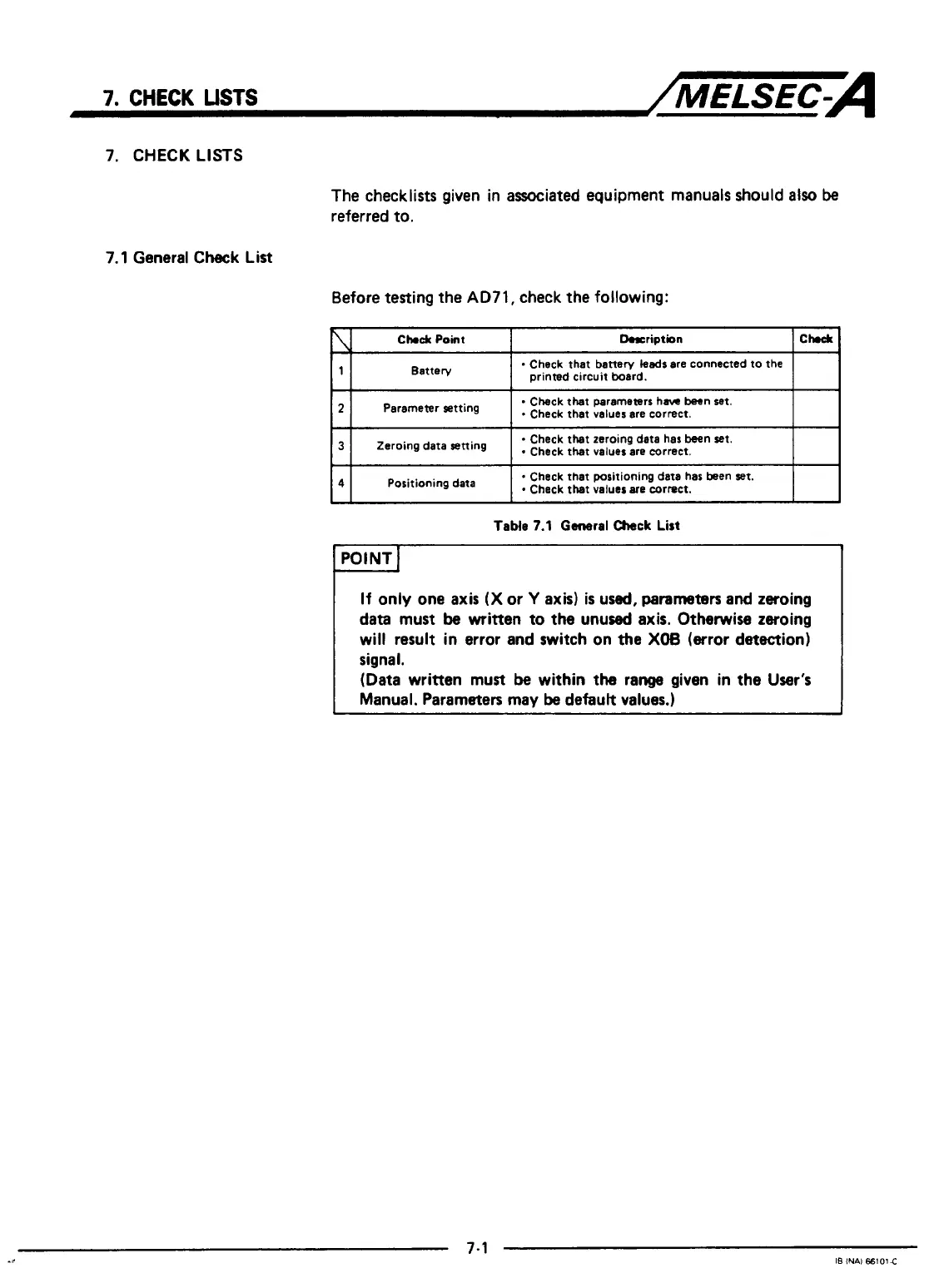

7. CHECK LISTS
The checklists given in associated equipment manuals should also be
referred to.
7.1 General Check List
Before testing the AD71, check the following:
I check Point I kriptbn ChcL
Battety
I printed circuit board.
Check that battery
leads are connected to the
Parameter IBtting
- Check that paramerers hw been sat.
Check that valuas are correct.
I I Zeroing I Check that values are correct.
tetting
- Check that zeroing data has been set.
I I Positioning data I * Check that values are correct.
Check that positioning data has teen
set.
TaMe 7.1 General Check List
POINT I
If only one axis (X or Y axis) is used, parameters and zeroing
data must be written to the unused axis. Otherwise zeroing
will result in error and switch on the XOB (error detection)
signal.
(Data written must be within the range given in the User's
Manual. Parameters may be defautt values.)
7-1
-3 IS INAl 66101E
!
