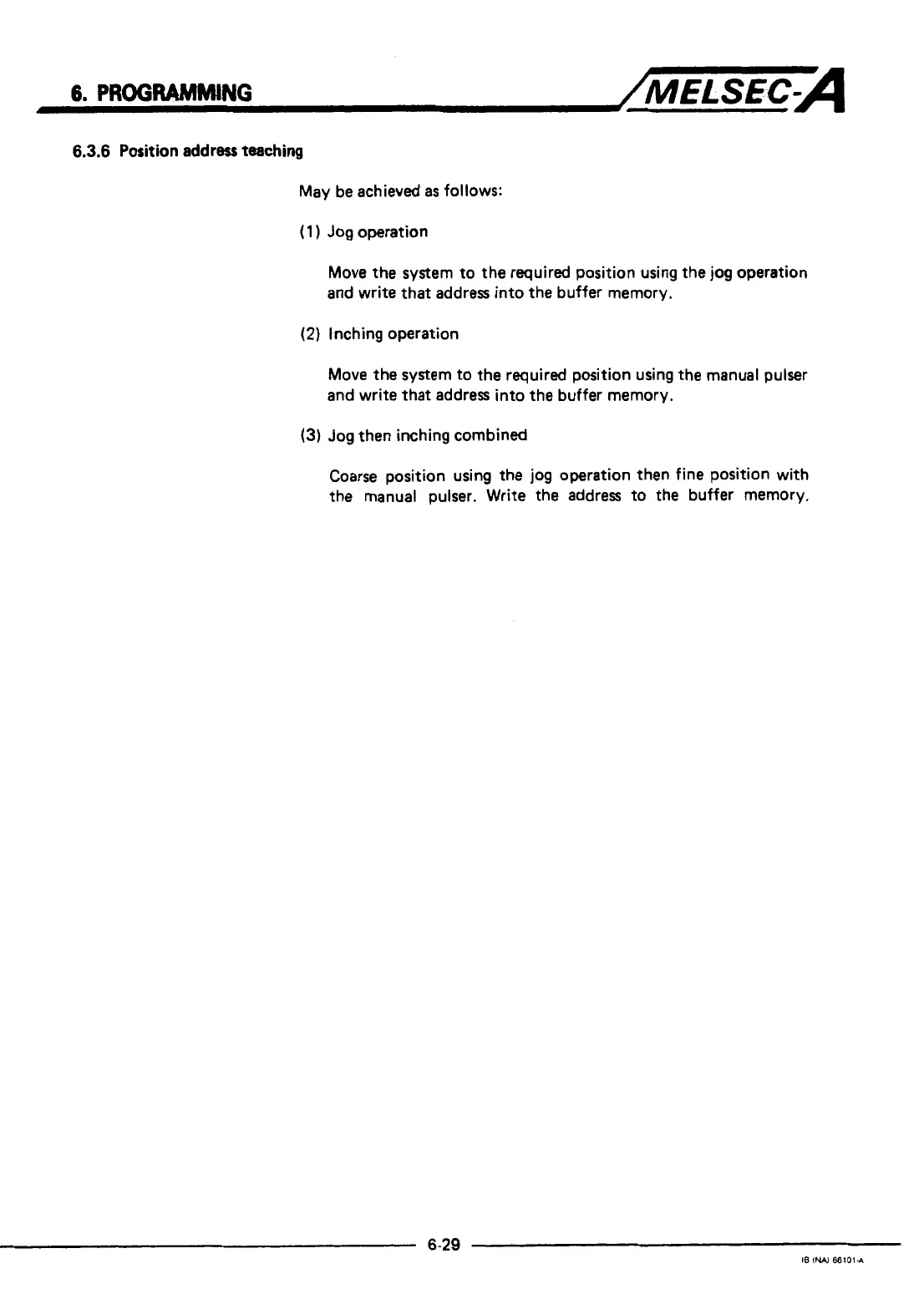

6. PROGRAMMJNG /MELSEC-A
6.3.6 Position address teaching
May be achieved as follows:
Jog operation
Move the system to the required position using the jog operation
and write that address into the buffer memory.
Inching operation
Move the system to the required position using the manual pulser
and write that address into the buffer memory.
Jog then inching combined
Coarse position using the jog operation then fine position with
the manual pulser. Write the address to the buffer memory.
