2) Except Instructions applicable to subset processing

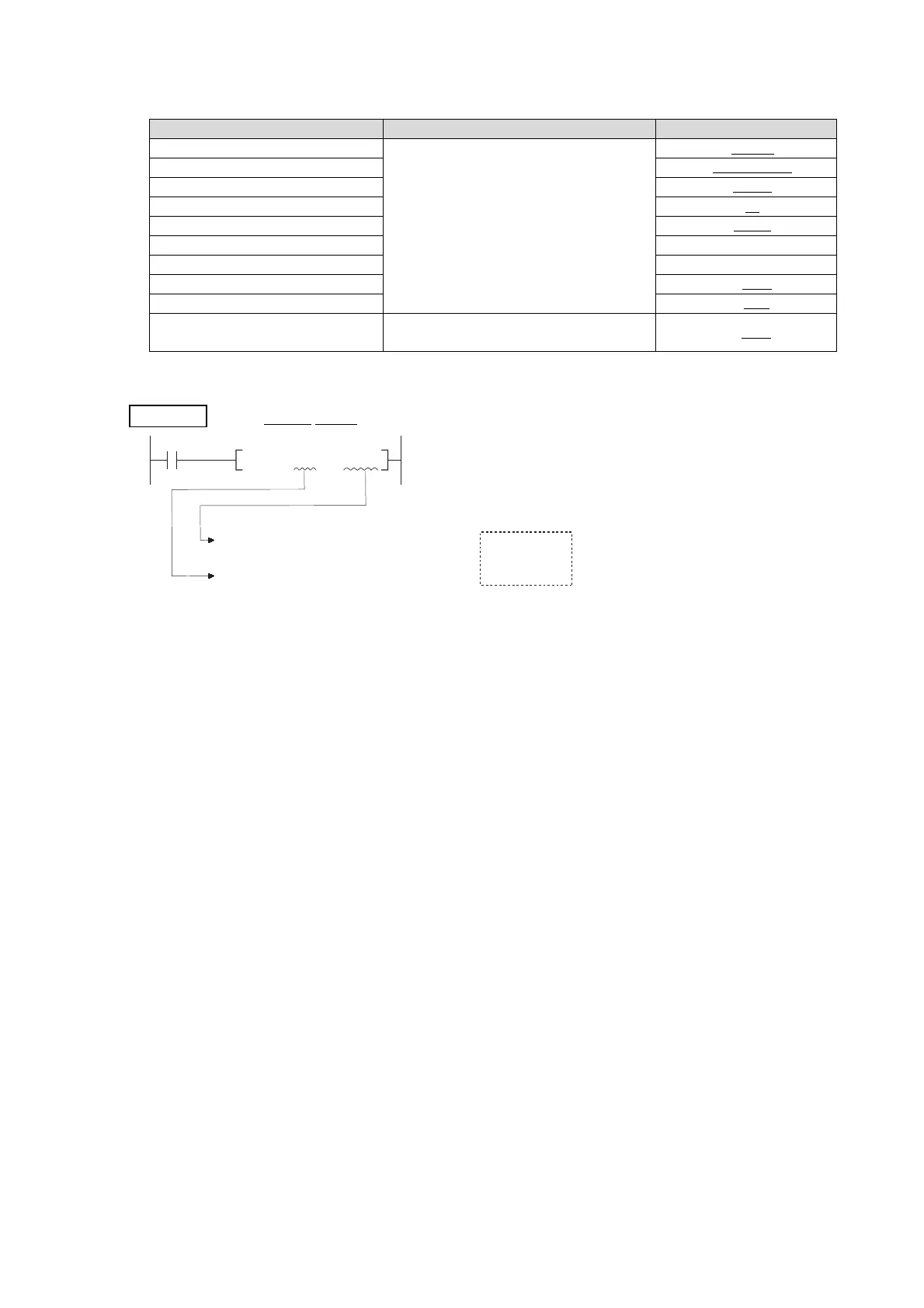

The following table shows steps depending on the devices.

(d) In cases where the conditions described in (a) to (c) above overlap, the number of steps becomes a culmination of

the two.

MOV If U1

\G10 ZR123 has been designated, a total of 2 steps are added.

Devices with Additional Steps Added Steps Example

Intelligent function module device

MOV U4\G10

Multiple CPU shared device MOV U3E1\G10000

Link direct device MOV J3\B20

Index register / standard device register MOV Z0

Serial number access format file register MOV ZR123

Extended data register(D) MOV D123

Extended link register(W) MOV W123

32-bit constant DMOV K123

Real constant EMOV E0.1

Character string constant

For even number: (number of characters) / 2

For odd numbers: (number of characters + 1) / 2

$MOV "123"

Example

MOV

G10 ZR123

Serial number access format file registers

Intelligent function module devices

Increased by 2 steps

: 1 step
