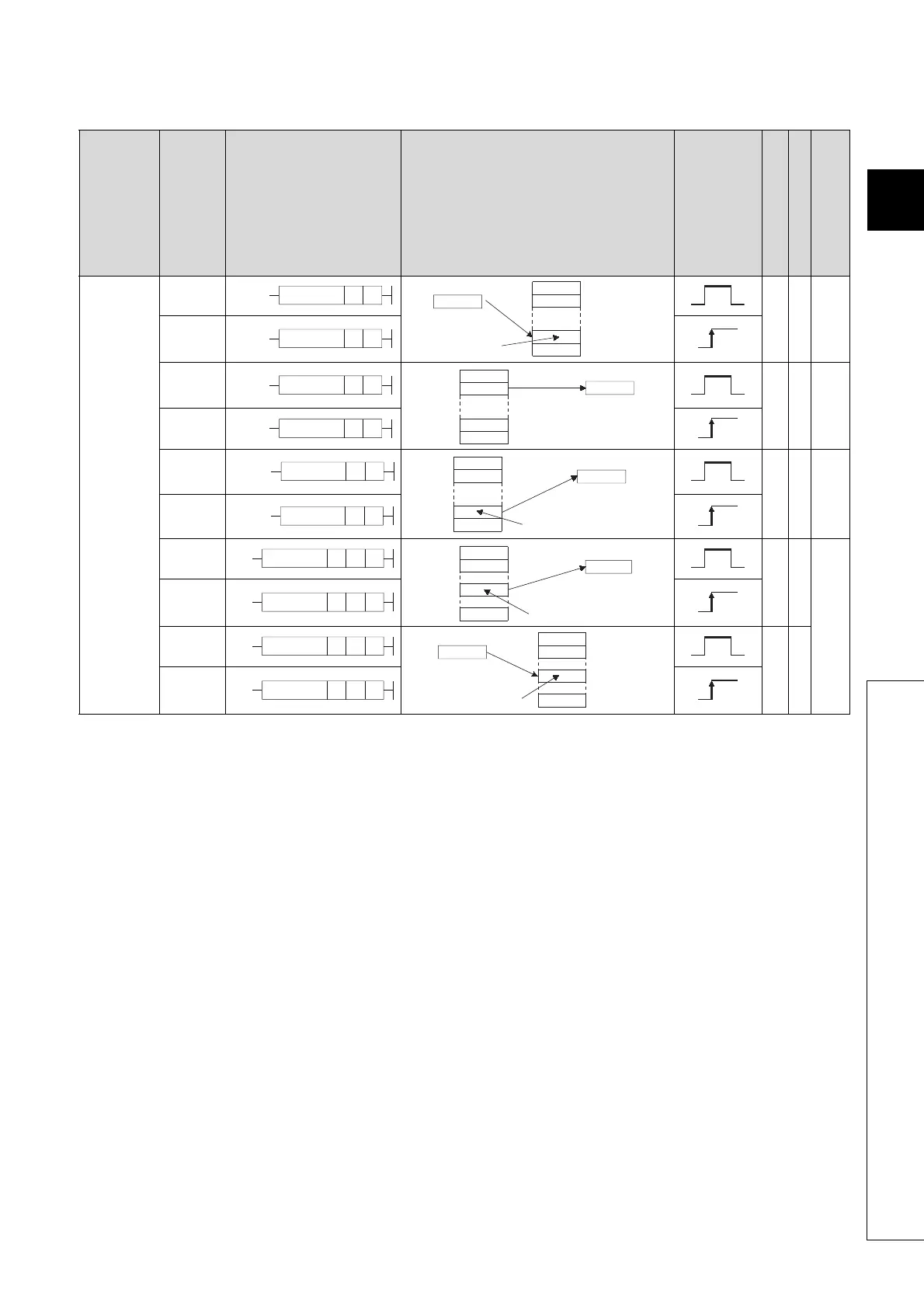

2.5 Application Instructions 2.5.7 Data table operation instructions
2.5.7 Data table operation instructions
Category
Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
Data table
processing
FIFW
3-
Page
418
FIFWP
FIFR
3-
Page
419
FIFRP
FPOP
3-
Page
421
FPOPP
FDEL
4-
Page
423
FDELP
FINS
4-
FINSP
FIFW SD
(S)
Pointer
(D)
Pointer + 1
Device at
pointer + 1
FIFWP SD
FIFR SD
(S)
Pointer
(D)
Pointer - 1
FIFRP SD
FPOP SD
(S)
Pointer
(D)
Pointer - 1
Device at pointer + 1
FPOPP SD
FDEL nSD
(S)
Pointer
(D)
Pointer - 1
Designated by n
FDELP nSD
FINS nSD
(S)
Pointer
(D)
Designated by n
Pointer + 1
FINSP nSD
