OUT

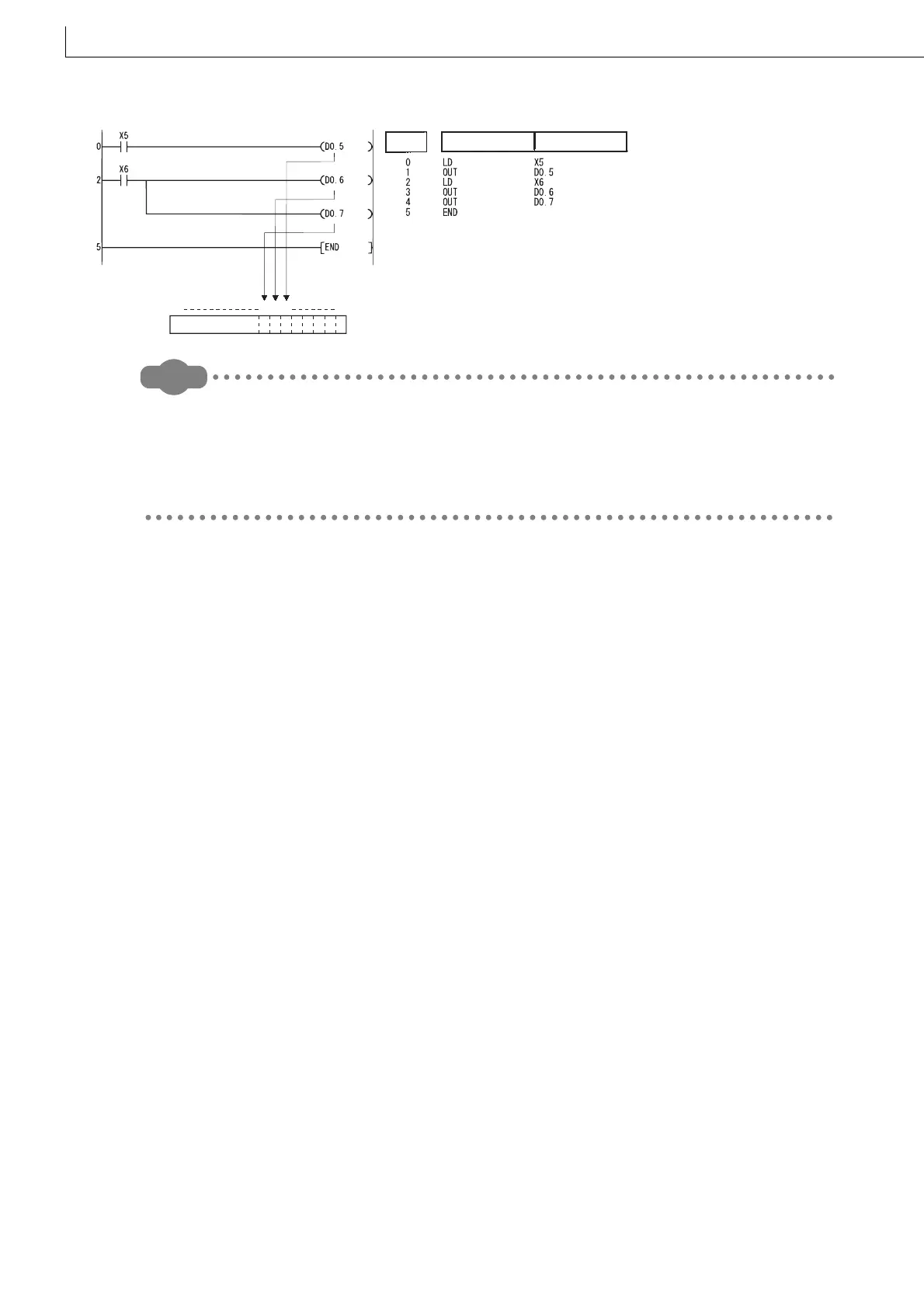

(2) When bit designation has been made for word device
[Ladder Mode] [List Mode]
Remark
The number of basic steps for the OUT instructions is as follows:
• When using internal device or file register (R): 1
• When using direct access output (DY): 2
• When using serial number access format file register
(Only for Universal model QCPU and LCPU): 2
(Basic Model QCPU, High Performance model QCPU, Process CPU, and Redundant CPU): 3
• Devices other than above: 3
b0
D0
b5b15 b6b7
Step
Instruction
Device
