MIDR, MIDRP, MIDW, MIDWP
For MIDW instruction

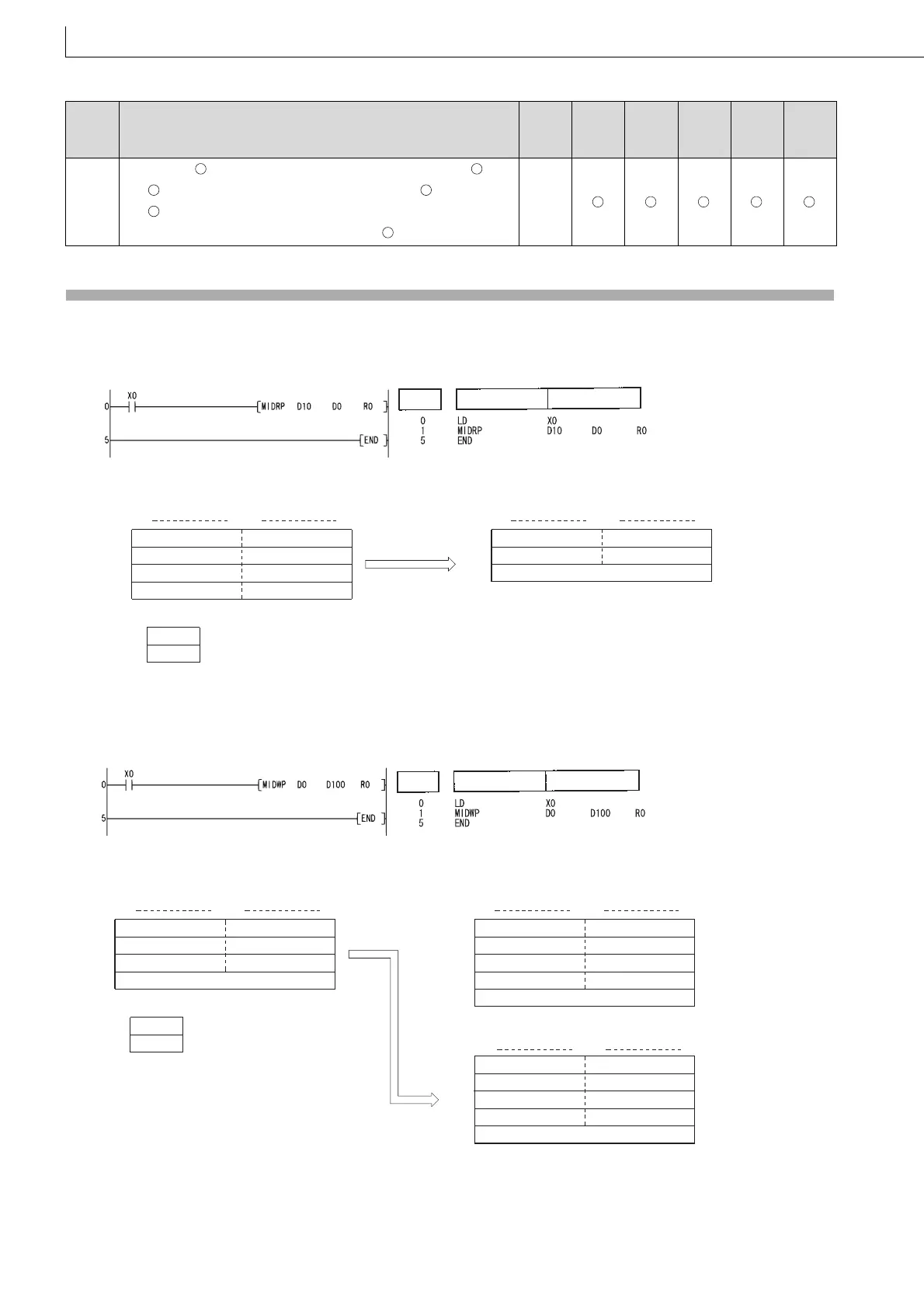

Program Example
(1) The following program stores the 3rd character through the 6th character from the left of the character string stored in the
area starting from D10 at devices starting from D0 when X0 is turned ON.
[Ladder Mode] [List Mode]
[Operation]
(2) The following program stores 4 characters of the character string data stored in the area starting from D0 into the area
starting from the 3rd character from the left of the character string data in the area starting from D100 when X0 is turned
ON.
[Ladder Mode] [List Mode]
[Operation]
Error
code
Error details
Q00J/
Q00/
Q01
QnH QnPH QnPRH QnU LCPU
4101
The value of exceeds the number of characters specified by .
The +1 value exceeds the number of characters for .
The +0 value is 0.
"00
H
" does not exist in the devices specifed by .
––
S2
D
S2 S1
S2
S1
Instruction
Device
Step
3
4R1
R0
D11
42
H
(B)41
H
(A)
32
H
(2)31
H
(1)
33
H
(3)46
H
(E)D12
D13
"BA213ED"
45
H
(D)00
H
D10
D1
32
H
(2)31
H
(1)
33
H
(3)46
H
(E)
D2
00
H
"213E"
D0
b15 b8b7 b0
b15 b8b7 b0
Instruction
Device
Step
3
4
R1
R0
D1
32
H
(2)31
H
(3)
46
H
(F)45
H
(E)
30
H
(0)33
H
(3)
D2
D3
"21FE03"
00
H
D0
D101
55
H
(U)53
H
(S)
43
H
(C)59
H
(Y)
D102
"USCYZ10B"
D100
5A
H
(Z)31
H
(1)
30
H
(0)42
H
(B)
00
H
D103
D104
Before execution
D101
55
H
(U)53
H
(S)
32
H
(2)31
H
(1)
D102
"US21FE0B"
D100
46
H
(F)45
H
(E)
30
H
(0)42
H
(B)
00
H
D103
D104
After execution
b15 b8b7
b0 b15 b8b7 b0
b15 b8b7 b0
