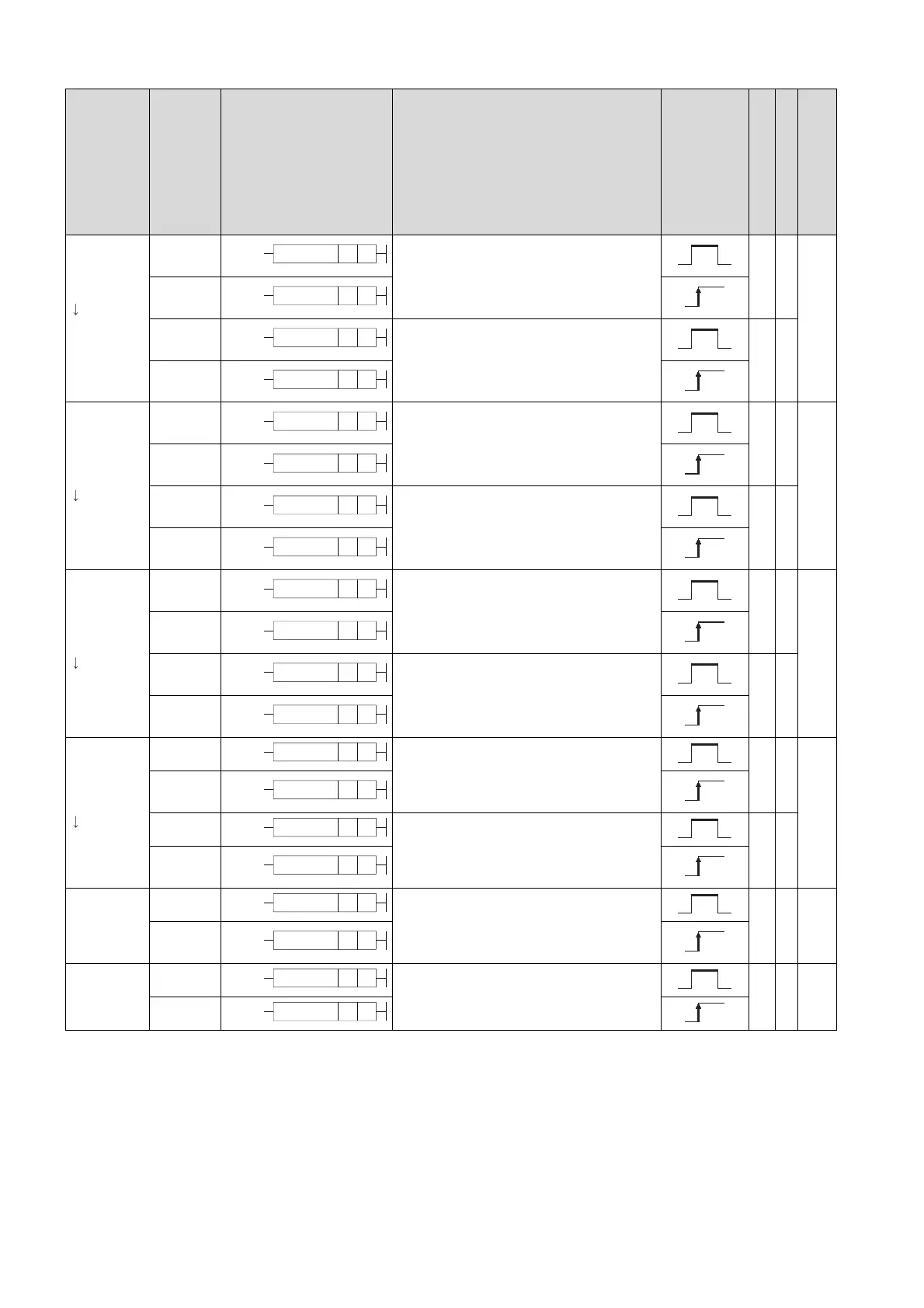

Instruction Symbol
Symbol Processing Details
Execution
Condition
Number of Basic Steps
Subset
See for Description
BCD
Decimal
ASCII
BCDDA
• Converts 1-word BCD value designated by
(S) to a 4-digit, decimal ASCII value, and
stores it at a word device following the word
device number designated by (D).
3-
Page
452
BCDDAP
DBCDDA
• Converts 2-word BCD value designated by
(S) to an 8-digit, decimal ASCII value, and
stores it at word devices following the word
device number designated by (D).
3-
DBCDDAP
Decimal
ASCII
BIN
DABIN
• Converts a 5-digit, decimal ASCII value
designated by (S) to a 1-word BIN value, and
stores it at a word device number designated
by (D).
3-
Page
455
DABINP
DDABIN
• Converts a 10-digit, decimal ASCII value
designated by (S) to a 2-word BIN value, and
stores it at a word device number designated
by (D).
3-
DDABINP
Hexadecimal
ASCII
BIN
HABIN
• Converts a 4-digit, hexadecimal ASCII value
designated by (S) to a 1-word BIN value, and
stores it at a word device number designated
by (D).
3-
Page
457
HABINP
DHABIN
• Converts an 8-digit, hexadecimal ASCII
designated by (S) value to a 2-word BIN
value, and stores it at a word device number
designated by (D).
3-
DHABINP
Decimal
ASCII
BCD
DABCD
• Converts a 4-digit, decimal ASCII value
designated by (S) to a 1-word BCD value,
and stores it at a word device number
designated by (D).
3-
Page
459
DABCDP
DDABCD
• Converts a 8-digit decimal ASCII value
designated by (S) to a 2-word BCD value,
and stores it at the word device number
designated by (D).
3-
DDABCDP
Device
comment
read
operation
COMRD
• Stores comment from device designated by
(S) at a device designated by (D).
3-
Page
461
COMRDP
Character
string length
detection
LEN
• Stores data length (number of characters) in
character string designated by (S) at a
device designated by (D).
3-
Page
463
LENP
BCDDA SD
BCDDAP SD
DBCDDA SD
DBCDDAP SD
DABIN SD
DABINP SD
DDABIN SD
DDABINP SD
HABIN SD
HABINP SD
DHABIN SD
DHABINP SD
DABCD SD
DABCDP SD
DDABCD SD
DDABCDP SD
COMRD SD
COMRDP SD
LEN SD
LENP SD
