9.1 Writing to the CPU Shared Memory of Host CPU
9.1.2 TO, TOP, DTO, DTOP
Program Example

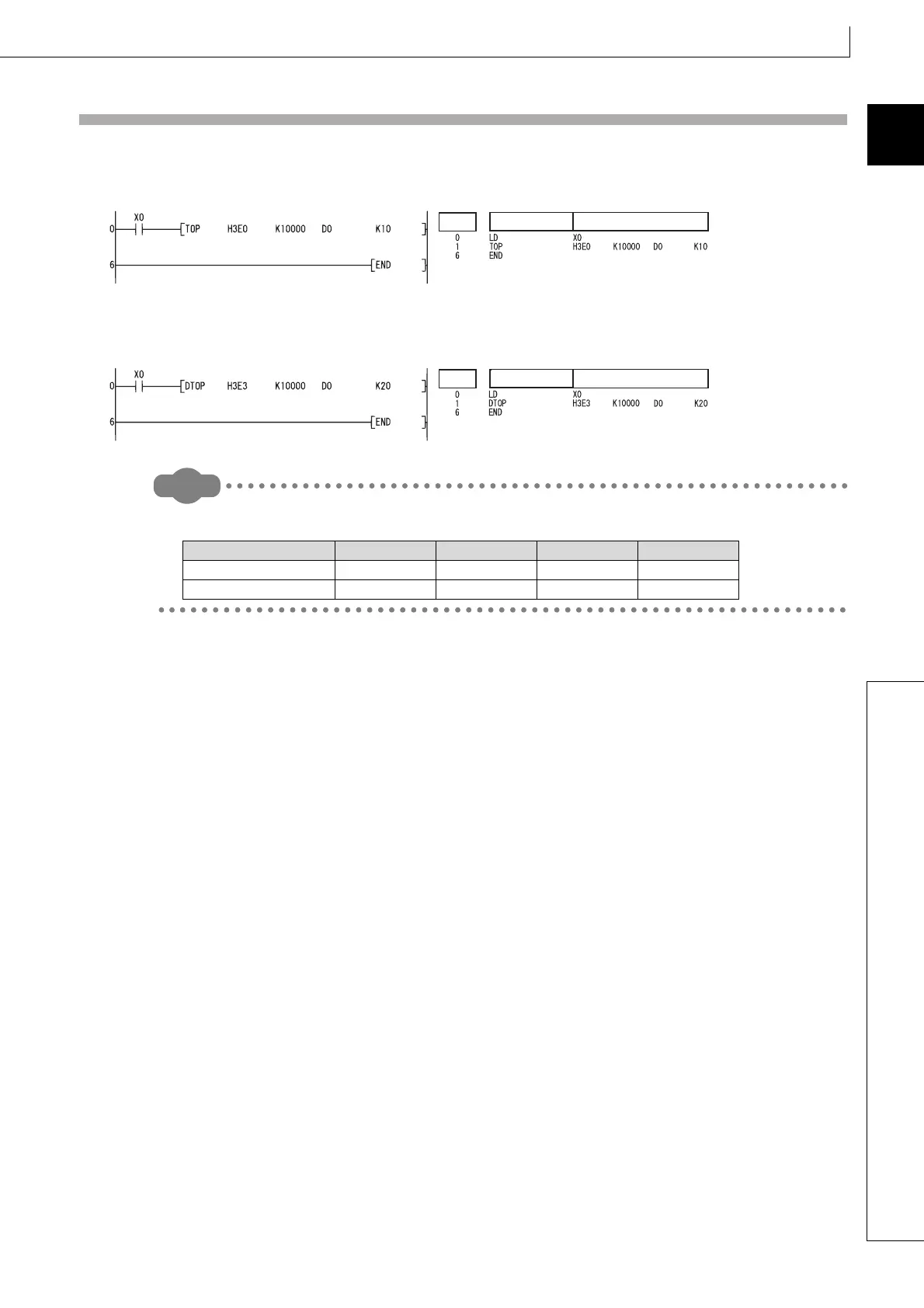

(1) The following program stores 10 points of data from D0 into address 10000 of the CPU shared memory of CPU No. 1
when X0 is turned ON.
[Ladder Mode] [List Mode]
(2) The following program stores 20 points of data from D0 into address 10000 of the CPU shared memory of CPU No. 4
when X0 is turned ON.
[Ladder Mode] [List Mode]
Remark
The n1 is specified by the first 3 digits of the hexadecimal 4 digits which represent the head I/O number of the slot mounted
to the CPU module.
CPU Slot Slot 0 Slot 1 Slot 2
Head I/O number 3E00 3E10 3E20 3E30
n1 3E0 3E1 3E2 3E3
