4 - 6
4 INSTALLATION AND WIRING

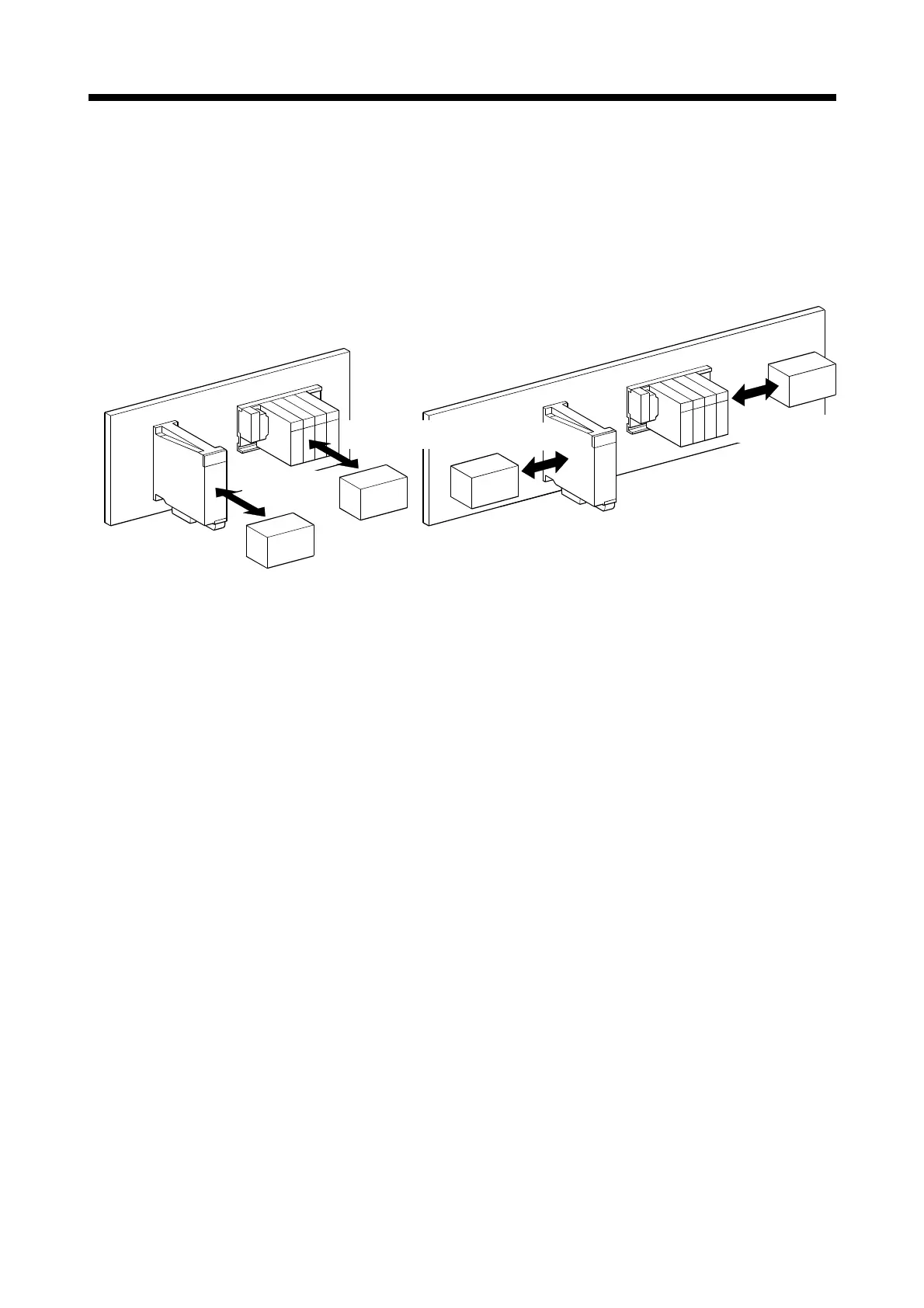

(6) Distances from the other devices
In order to avoid the effects of radiated noise and heat, provide the clearances
indicated below between the Motion controller/base unit and devices that
generate noise or heat (contactors and relays, etc.).
• In front of Motion controller/base unit: 100mm (3.94inch) or more
• On the right and left of Motion controller/base unit: 50mm (1.97inch) or more
100mm(3.94inch)
or more
50mm(1.97inch)
or more
100mm(3.94inch)
or more
Contactor, relay, etc.
50mm(1.97inch)
or more
