8. DEBUGGING FUNCTION

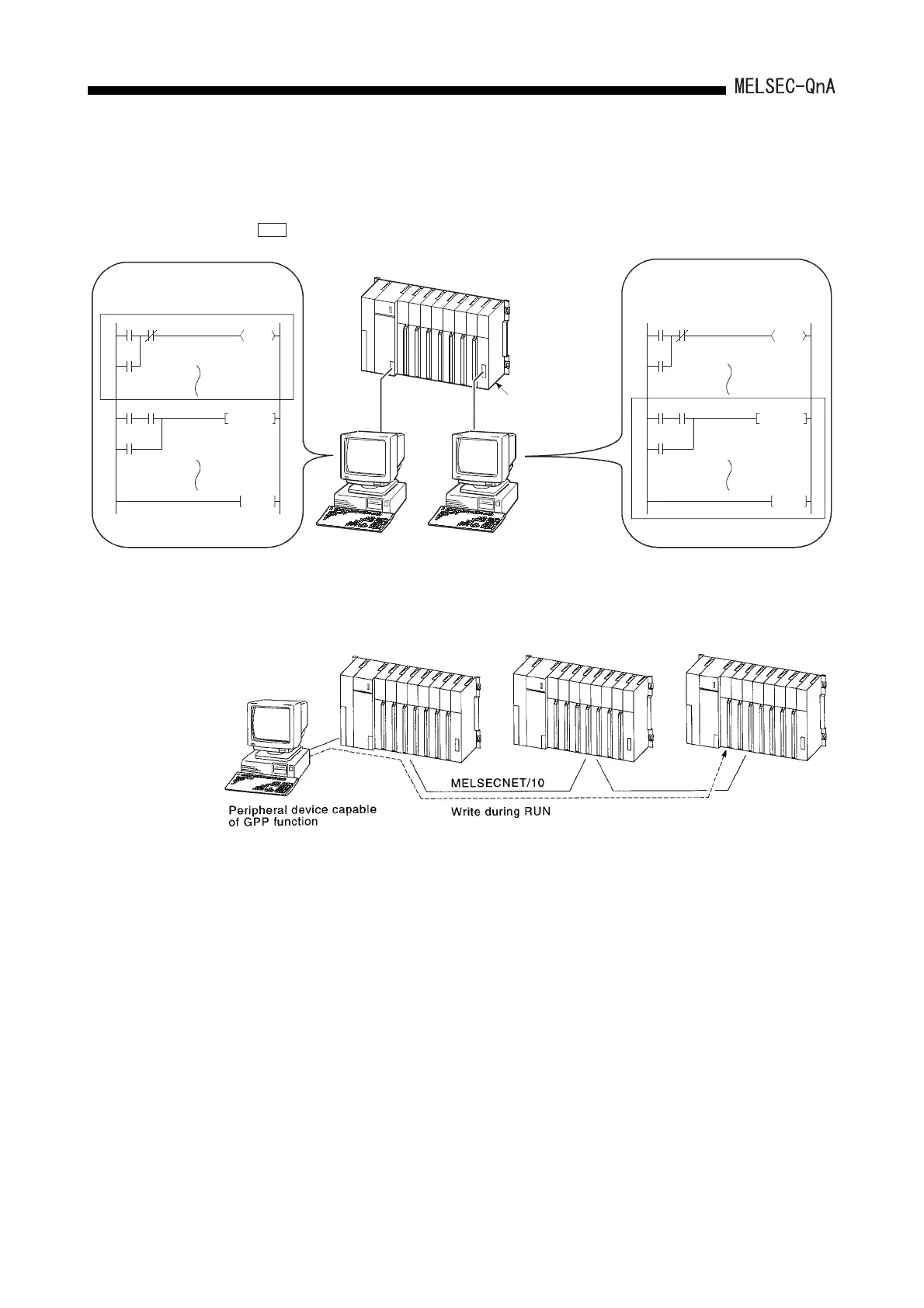

The example below shows a case where peripheral device capable of GPP functions
A performs write during RUN from P0, and peripheral device capable of GPP
functions B performs write during RUN from P1. The program enclosed in the frame
is the program subject to write during RUN.
(2) It is possible to write programs from peripheral devices capable of GPP functions that
are connected to other stations in the network during the RUN.
AJ71QC24N
P1
END
X0 X2
X1
P0
SET M10
P1
END
P0
SET M10
Y30Y30
X3 X4
X5
X3 X4
X5
X0 X2
X1
The machining program
from P0 onward is obtained
by write during RUN.
The machining program
from P1 onward is obtained
by write during RUN.
Peripheral device
capable of GPP
function A
Peripheral device
capable of GPP
function B
Serial communi-
cation module
