Mitsubishi Q2ACPU User Manual

3.
3 - 2
SYSTEM CONFIGURATION

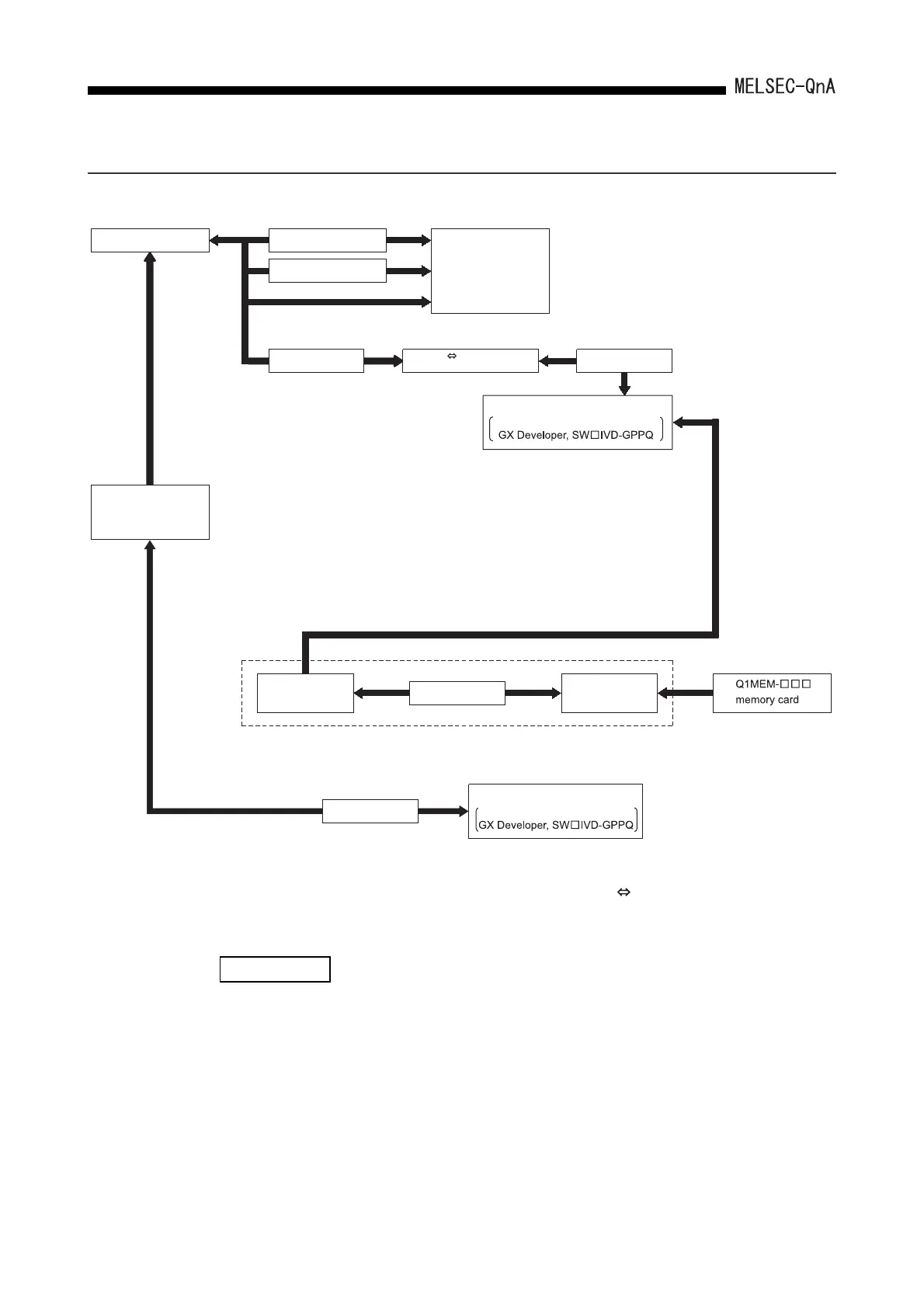

3.1.2 Configuration of peripheral devices capable of QnACPU
*1 For details on the IC memory card reader/writer setting, refer to Operating Manual for the
peripheral device capable of GPP functions.
*2 For connection to RS-422 interface, use the RS-422 RS-232C converter.
*3 When connecting the serial communication module and the peripheral devices capable of
GPP function, see User's Manual of the serial communication modules.
REMARK
1. For details on the system configuration for each peripheral device, refer to
the Operating Manual for each.
2. QnACPU can connect a peripheral device capable of ACPU only when
accessing an ACPU in another station via a MELSECNET/10 or
MELSECNET data link. (However, QnACPU cannot be accessed. ) In this
case, set SW2 of system setting switch 2 on the CPU module ON.
*1
*2
*3
software package used:
(To RS-422 interface)
AC30R4-PUS cable
AC20R4-A8PU cable
RS-422 cable
RS-232C cable
AJ71QC24 serial
communication module
Q6PU
programming unit
Option board
IC memory card
reader/writer
(To option board slot)
(Mounted to the
base unit)
QnACPU
Dedicated cable
RS-232C cable
IBM-PC/AT-compatible
IBM-PC/AT-compatible
(To RS-422 interface/RS-232C)
*2
software package used:
RS-422 RS-232C
convertor
