22.

22 - 8

TROUBLESHOOTING

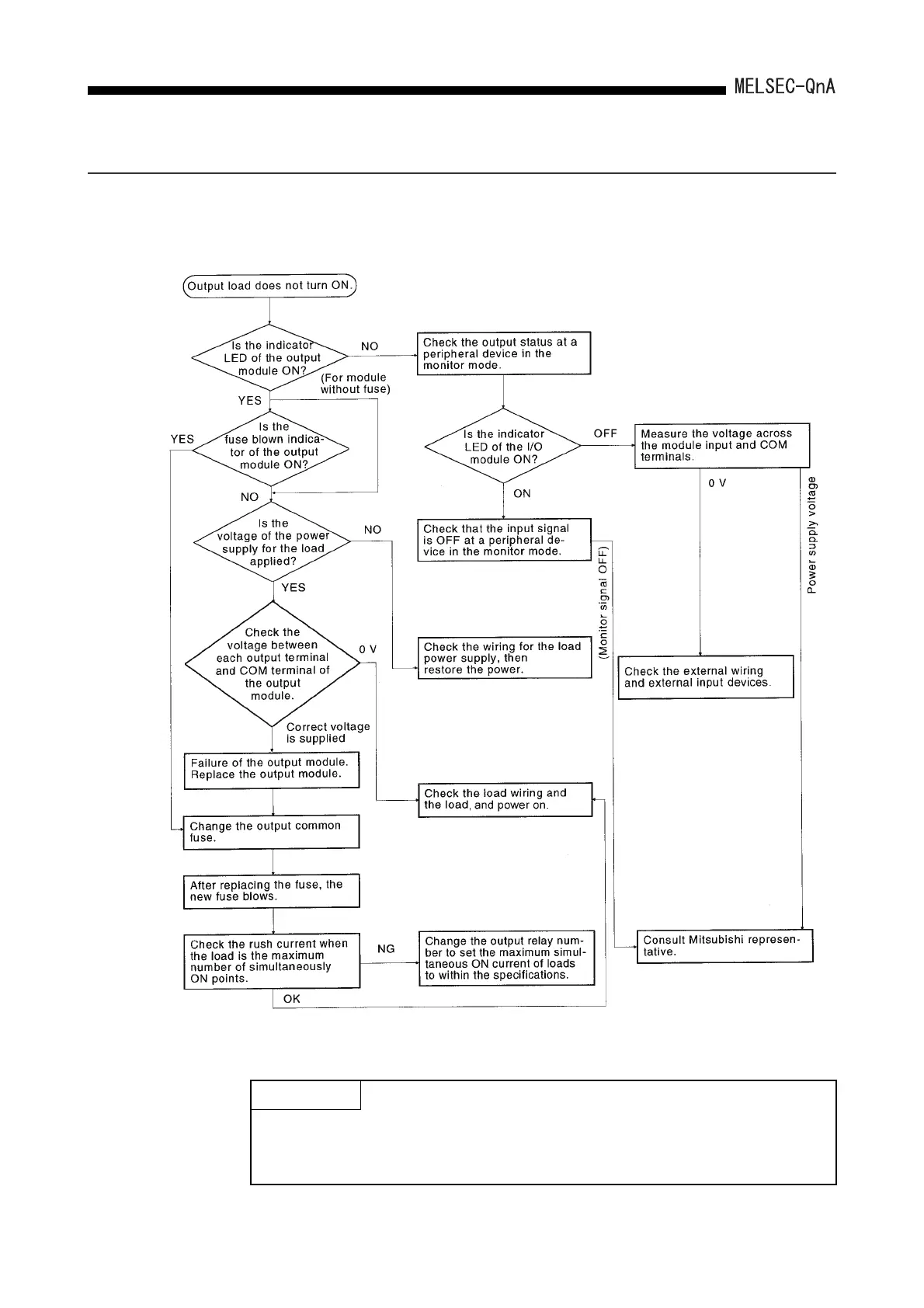

22.2.8 Flow for actions when the output module's output load does not turn ON

The flow when the output load of the output module is not turned ON during operation is

described.

POINT

For problems when the input signal does not turn off or output load does not turn

off, perform troubleshooting by referring to the fault examples for the I/O modules

in Section 22.5.
