DEBUGGING FUNCTION
8.4.2 Interrupt program monitor list
This function displays the number of executions of interrupt programs.
This is used to check the execution status of interrupt programs.
This function allows display of the execution counts of interrupt programs.
All operations are performed using the monitor/test menu in the ladder mode.
(1) Select "Program Batch Monitor".
(2) Select "Interrupt Program List Monitor".

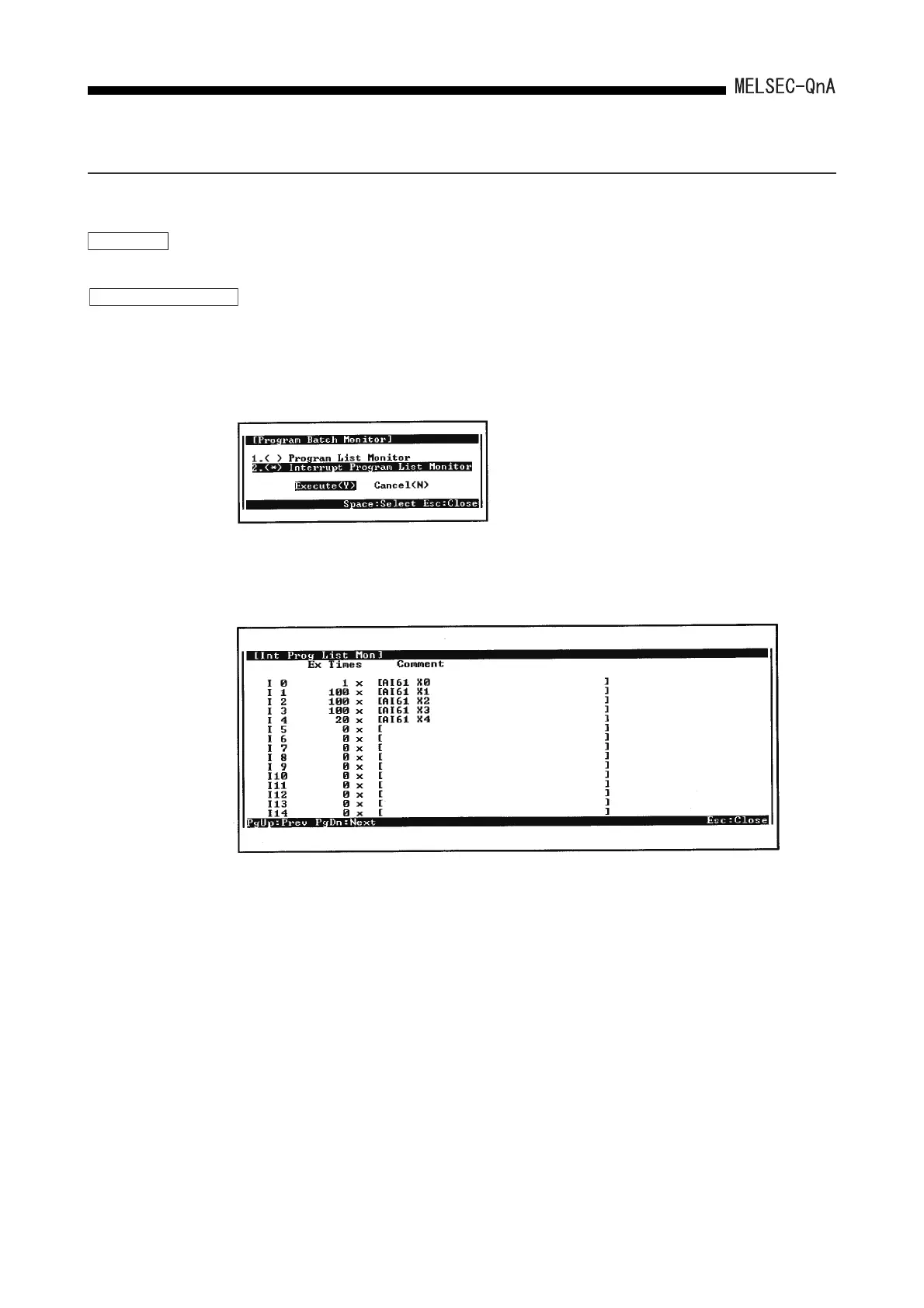

The following shows an example of the display when the interrupt program monitor
list function is run.
The following shows an explanation of the screen above:
(a) "Ex Times"
The number of times the program has been executed, taking the point when
monitoring started as 0 in the count, is displayed here.
(When reaching the maximum times of 65536, the count returns to 0.)
The count is cleared to zero when switching to RUN.
(b) "Comment"
The comments set in the documentation mode are displayed here.
