8. DEBUGGING FUNCTION

(2) Basic operation

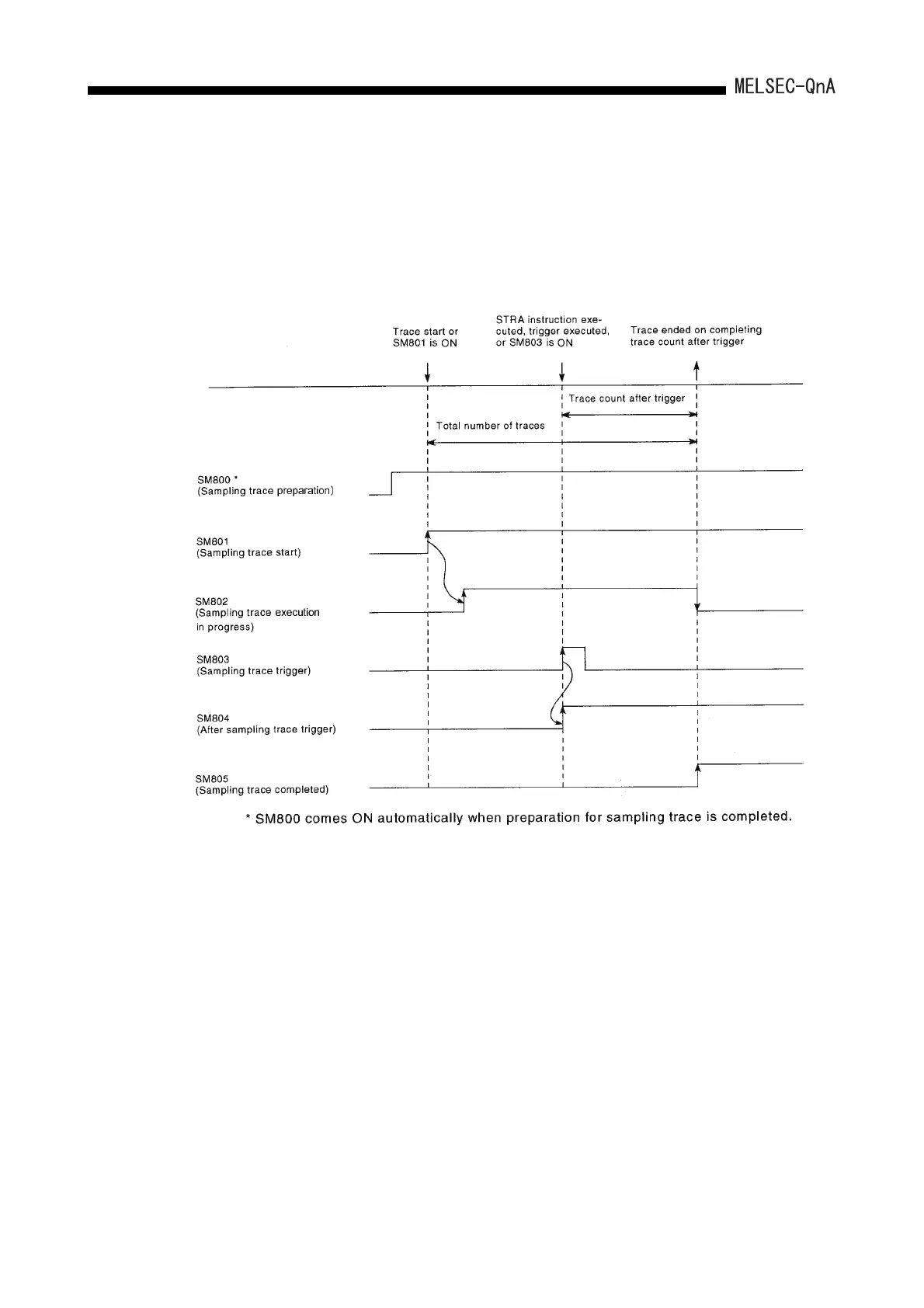

The basic operation for sampling trace is shown below.

The statuses during execution of the sampling trace function can be confirmed by

monitoring special relays SM800 to SM805 and SM826.

• Trace execution
