8 - 29

8. DEBUGGING FUNCTION

The following shows the procedures of sampling trace.

These operations are performed on the "Sampling Trace" screen of the trace menu in the

online mode.

(1) Set the trace devices and trace conditions with GPP function.

(a) Setting the trace devices

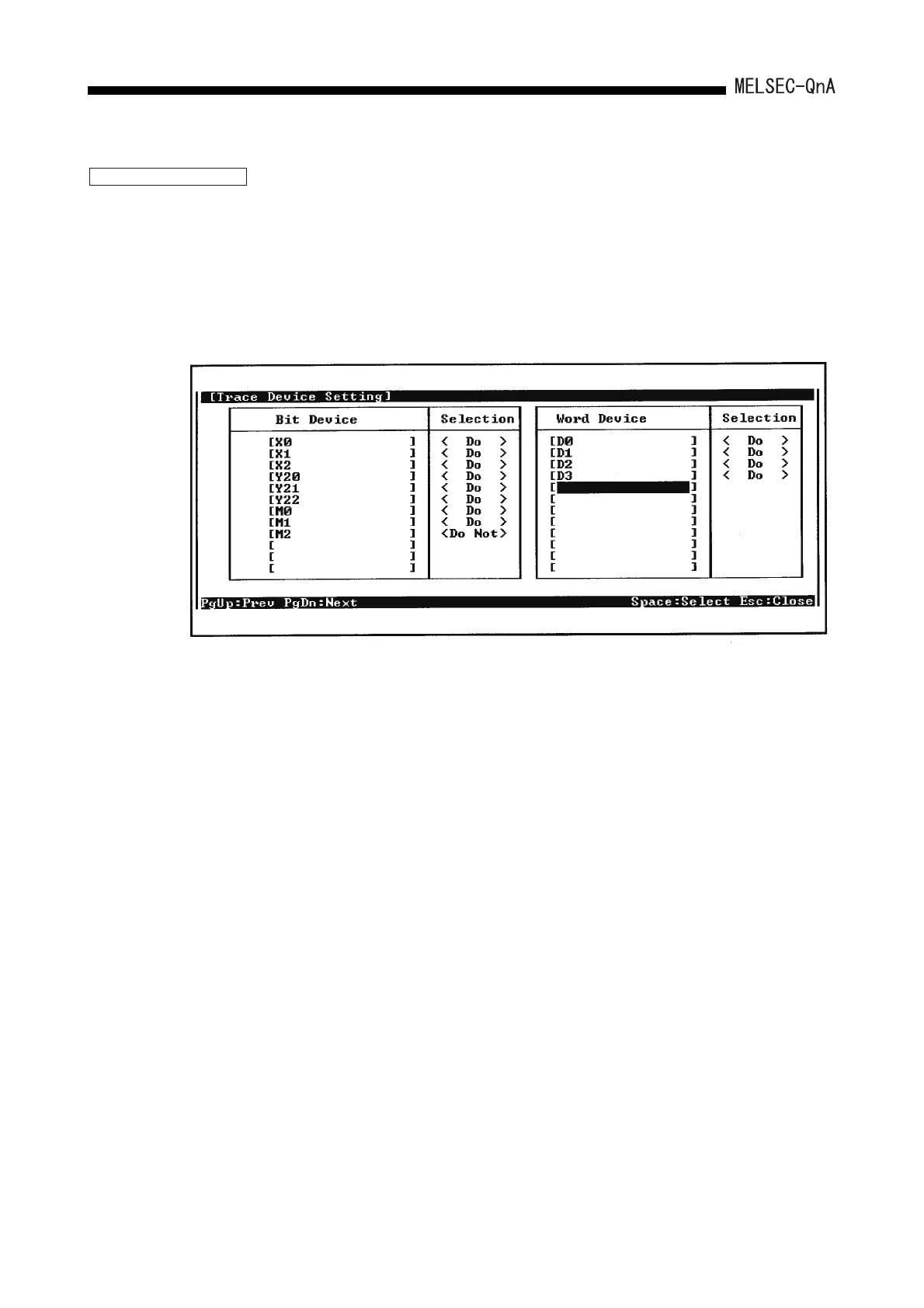

Set the devices at "Trace Device Setting" on the "Sampling Trace" screen.

Operation Procedures

Default Chapter12
