10. OTHER FUNCTIONS

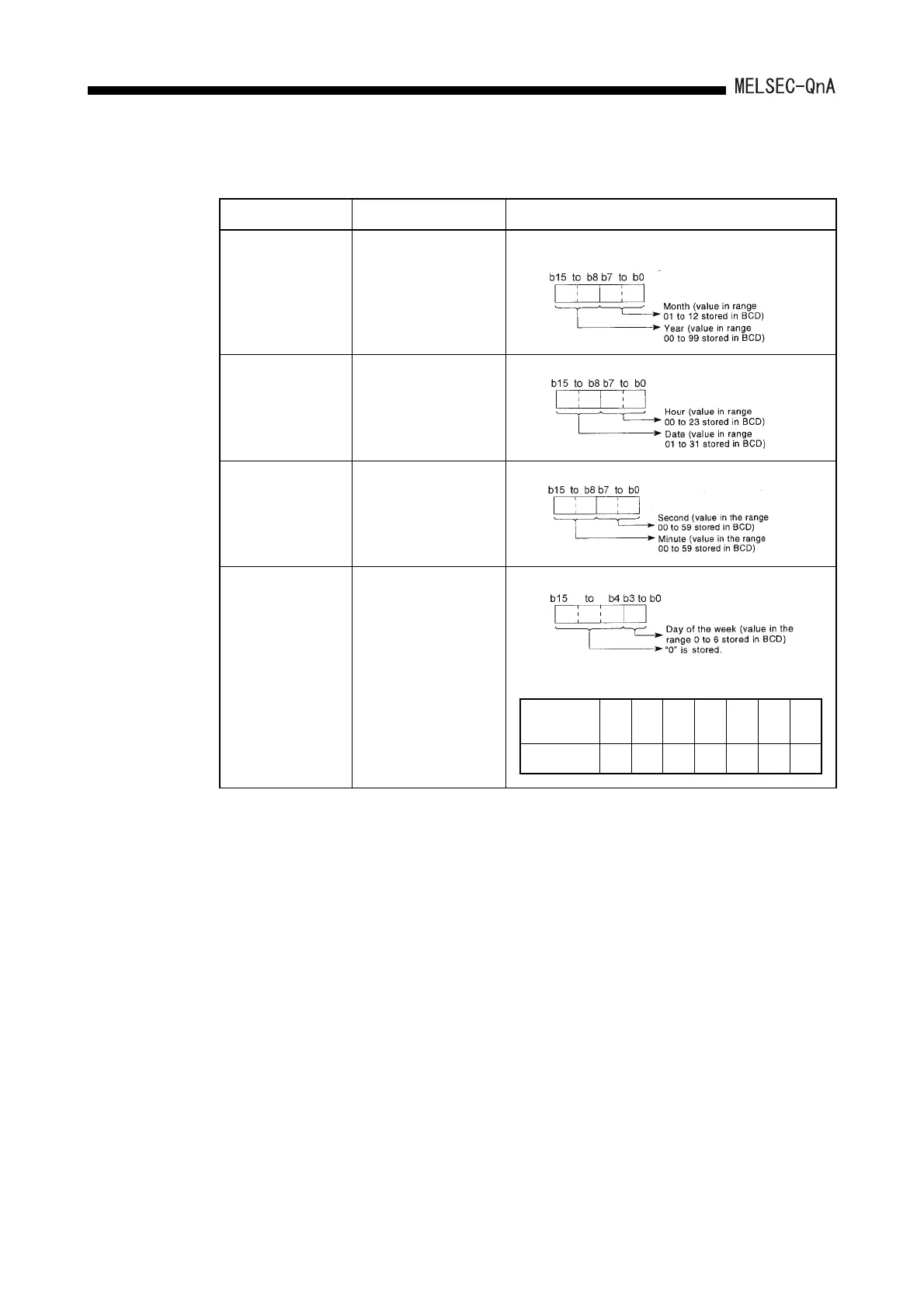

(b) Special registers used for clock data
Device Name Description
SD210
Clock data
(year, month)
• The year and month are recorded as follows.The year
data is the last two digits of the year.
SD211
Clock data
(day, hour)
• The day and hour are recorded as follows.
SD212
Clock data
(minute, second)
• The minute and second are recorded as follows.
SD213
Clock data
(day of the week)
• The day of the week is recorded as follows.
• The settings for the day of the week are as follows:
Day of the
week
SunMonTueWedThu Fri Sat
Storage data0123456
