19 - 16

19. LOADING AND INSTALLATION

(2) Removal

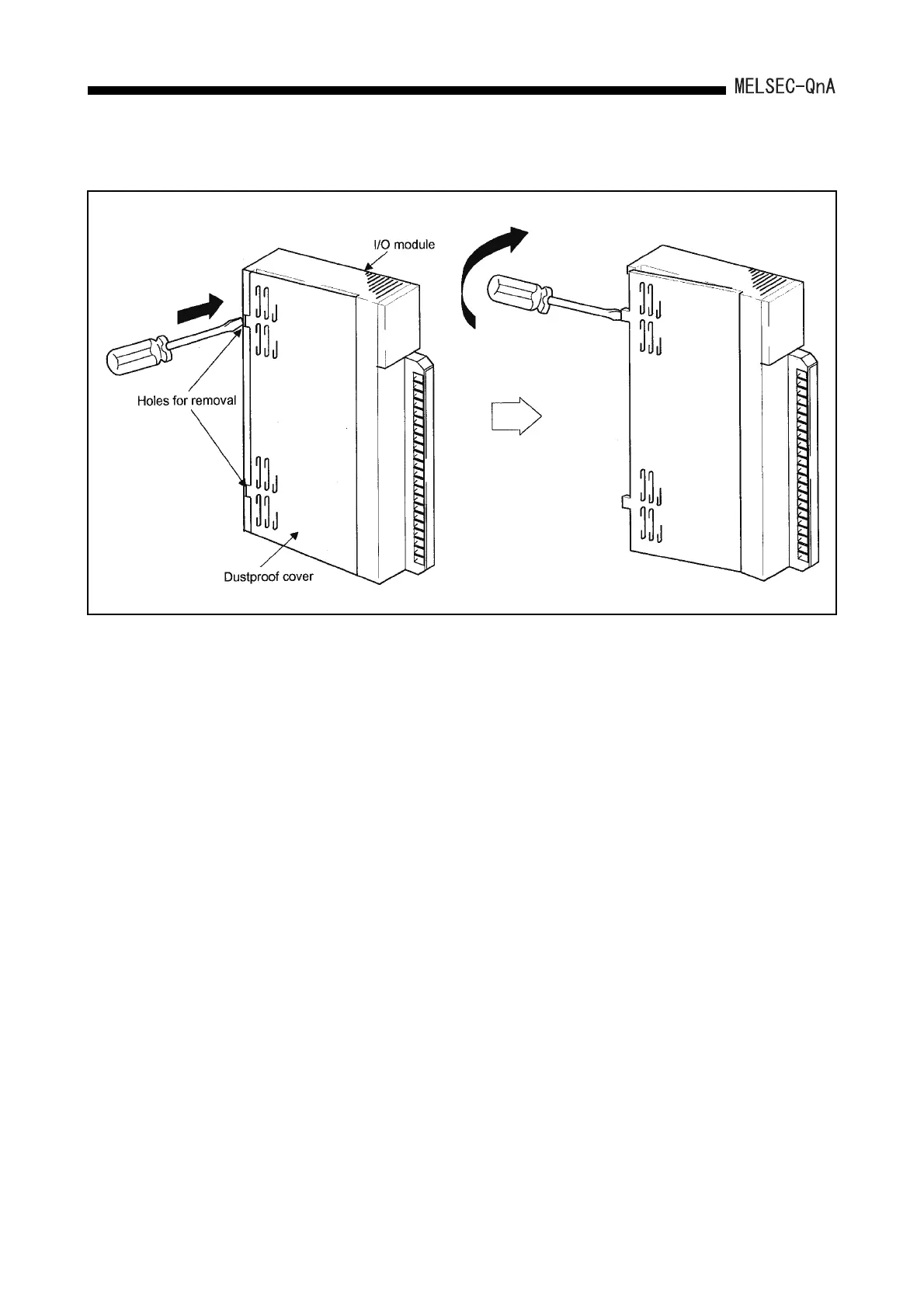

To remove the dustproof cover from the I/O module, insert the tip of a flat-head

screwdriver into the hole as shown in the figure, then pry the tab of the cover out from the

hole using the screwdriver.
