Dissociation/
Association
• Dissociates the 16-bit data specified at (S) into 4-bit units, and stores
these data in the least significant four bits of n devices starting with
the one specified at (D). (n 4)
• Associates the least significant 4-bit data of n devices starting from
the one specified at (S) and stores this data in the device specified at
(D). (n 4)
• Dissociates data of the devices starting with the one specified at (S1)
into the specified bits starting with the one specified by (S2), and
stores this data in sequence starting at the device specified at (D).
• Associates each of the data starting from the one specified at (S1) to
the data of the devices starting from the one specified by (S2) and
stores the data to the devices in equence starting at the device
specified at (D).
• Dissociates the 16-bit data that starts from the device specified at (S)
into 8-bit units, and stores the n points of data to the devices in
sequence starting from the one specified at (D).
• Associates the lower 8 bits of 16-bit data for n points starting from the
one specified at (S) to give 16-bit data, and stores the data to the
devices in sequence starting from the one specified at (D).
Search
• Searches the n points of data starting from the device specified at (S)
in 16-bit units, and stores the maximum value to the device specified
at (D).
• Searches the n points of data starting from the device specified at (S)
in 16-bit units, and stores the minimum value to the device specified
at (D).
• Searches the 2 n points of data starting from the device specified at
(S) in 32-bit units, and stores the maximum value to the device
specified at (D).
• Searches the 2 n points of data starting from the device specified at
(S) in 32-bit units, and stores the minimum value in the device
specified at (D).
Sort
• Sorts n points of data starting from the device specified at (S1) in 16-
bit units.
[Max. number of scans required: {n (n – 1)}/2 scans]
• Sorts 2 n points of data starting from the device specified at (S1) in
32-bit units.
[Max. number of scans required: {n (n – 1)}/2 scans]

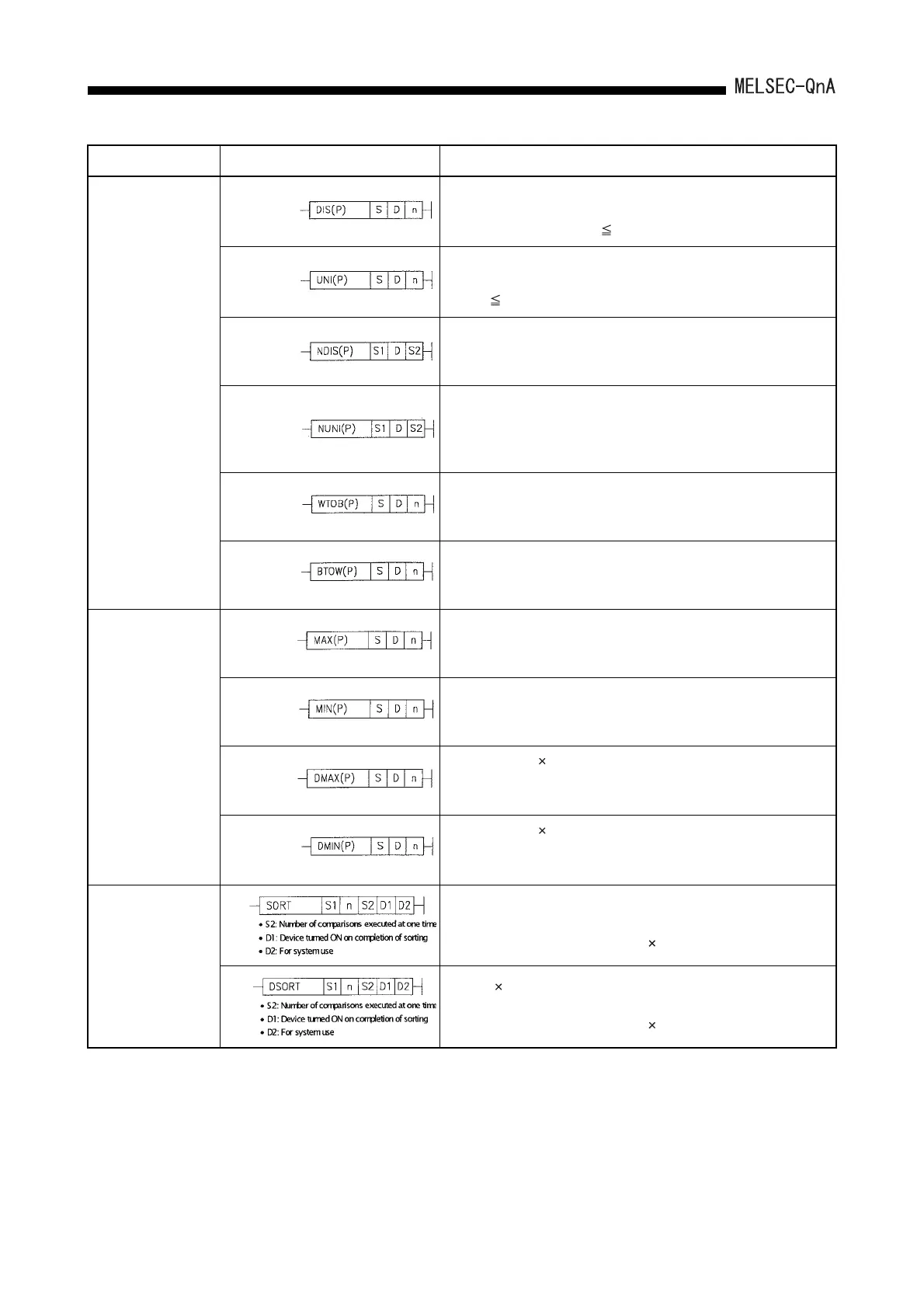

Classification Symbol Description
