App - 34
APPENDICES

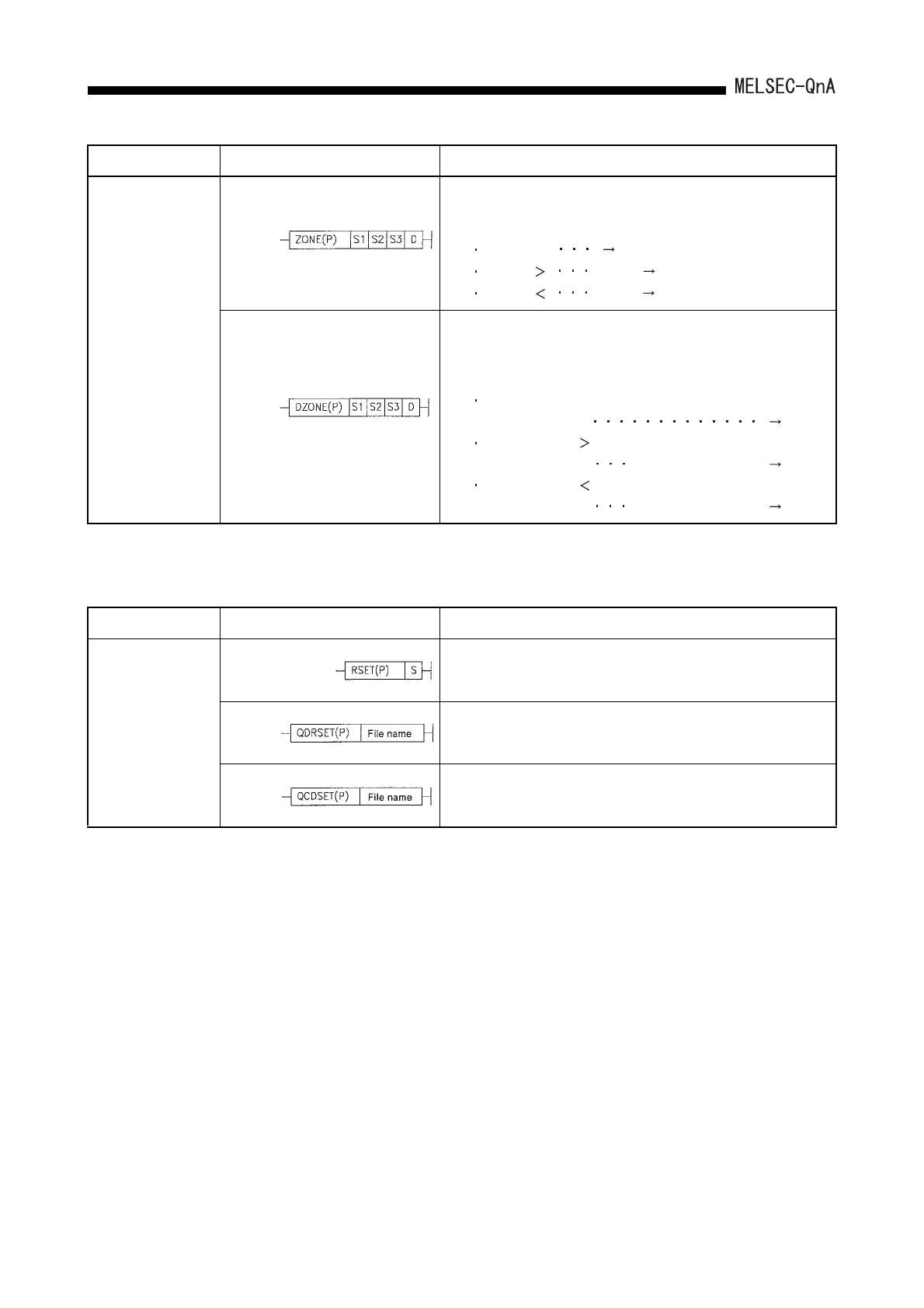

(14) Switching instructions
Zone control
• By setting positive and negative bias values for the input value
specified at (S3) with (S1) and (S2), calculates the value for S1 +
bias, and stores it to the word device specified at (D).
When S3 = 0 0 D
When S3 0 S3 + S2 D
When S3 0 S3 – S1 D
• By setting positive and negative bias values for the input value
specified at (S3+1, S3) with (S1+1, S1) and (S2+1, S2), calculates
the value for S1 + bias, and stores it to the word device specified at
(D+1, D).
When (S3+1, S3) = 0
0 (D+1, D)
When (S3+1, S3) 0
(S3+1, S3) – (S2+1, S2) (D+1, D)
When (S3+1, S3) 0
(S3+1, S3) + (S1+1, S1) (D+1, D)
Classification Symbol Description
Block No. setting
• Changes the block No. of an extension file register to the number
specified at (S).
• Sets the name of a file to be used as a file register.
• Sets the name of a file to be used as a comment register.
Classification Symbol Description
To Next Page
