App - 40
APPENDICES

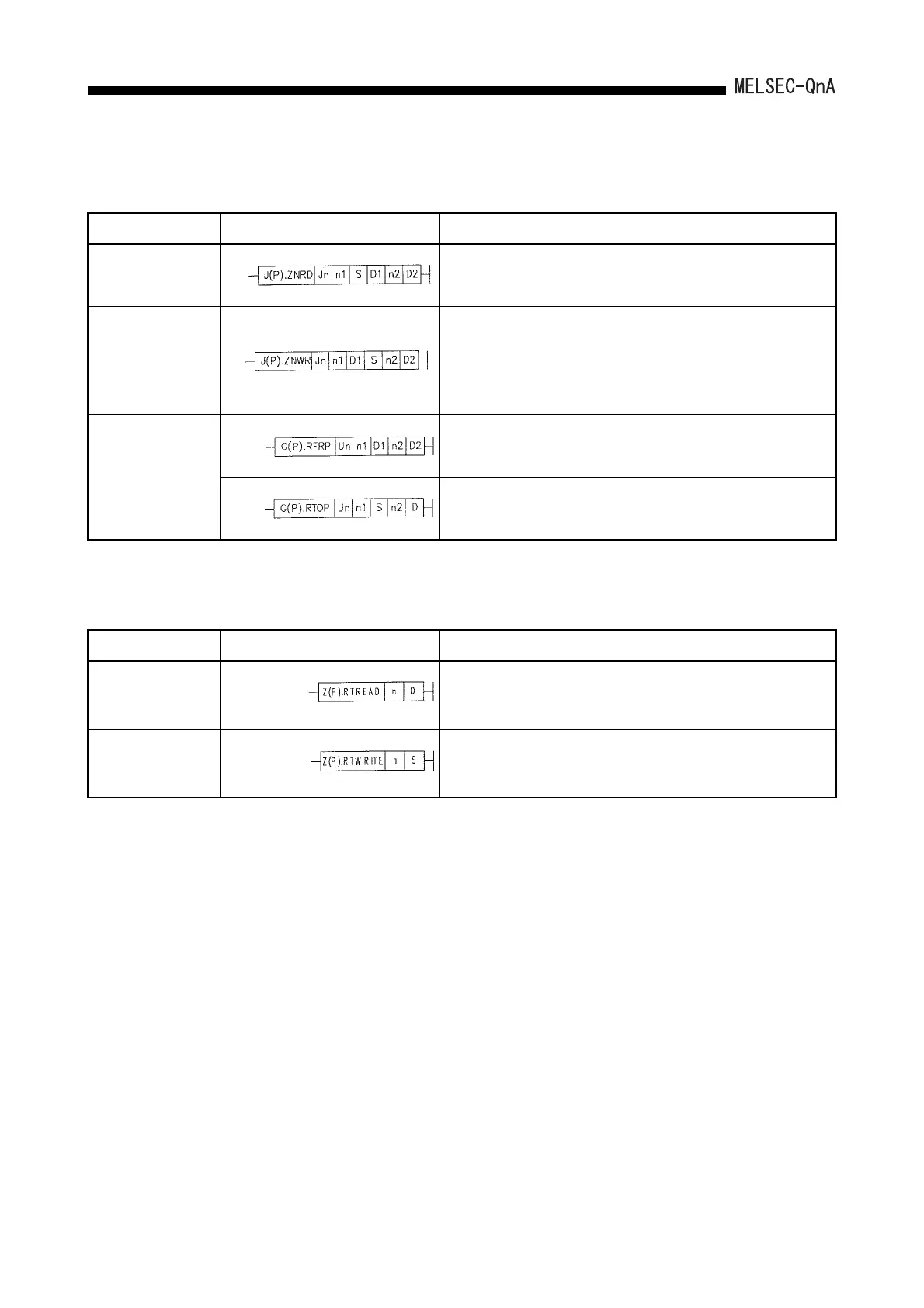

(3) A series link instructions
(4) Routing parameter instructions
Classification Symbol Description
Word device read
from specified station
• Reads the data of T, C, D, and W devices of other stations in the
MELSECNET(II) or MELSECNET/10 system.
Word device write
to specified station
• Reads the data of T, C, D, and W devices of other stations on the
MELSECNET(II) or MELSECNET/10 network.
Data read/write
from a special
function module
at a remote I/O station
• Reads data from the special function module installed at a remote I/O
station in the MELSECNET(II) system.
• Writes data to the special function module installed at a remote I/O
station in the MELSECNET(II) system.
Classification Symbol Description
Routing information
read
• Reads the data of the transfer destination network with the number
specified by n in the routing parameters and stores the data to the
devices starting from (D).
Routing information
registration
• Registers the routing data in the devices starting from (S) to the area
for the transfer destination network with the number specified by n in
the parameters.
