5. I/O NUMBER ASSIGNMENT

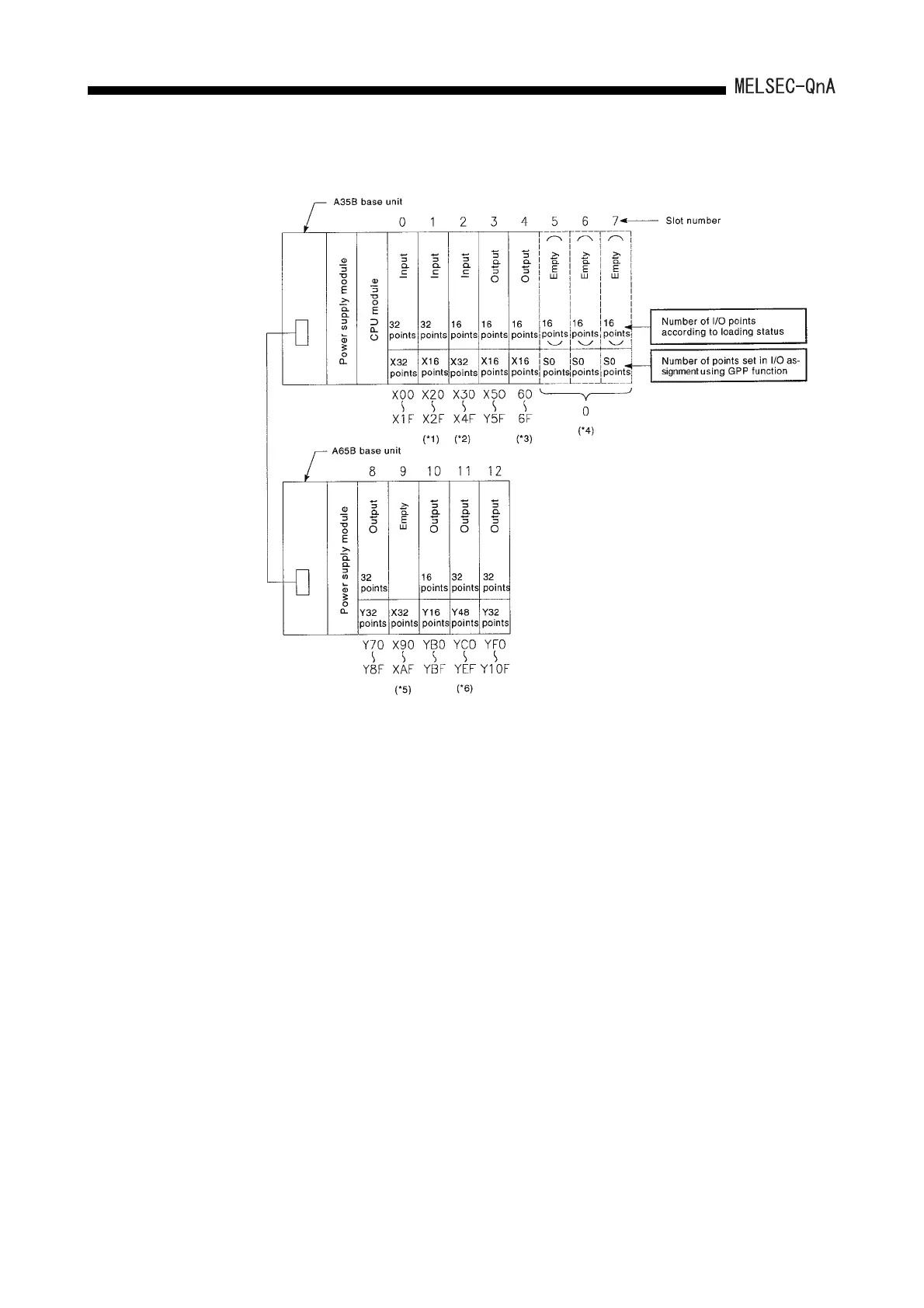

2) I/O numbers after performing I/O assignment using GPP functon
*1 Since 16 points is set, the latter 16 points of inputs cannot be used.
*2 Since 32 points is set, the points from 40 to 4F is occupied with dummy points.
*3 Since "Empty (S), 16 points" is set, the points cannot be used for outputs.
*4 Since "Empty (S), 0 points" is set, the number of I/O points for the three slots are not lost.
*5 Since "input (S), 32 points" is set, there are 32 input points.
*6 Since 48 points are set, E0 to EF is occupied with dummy points.
