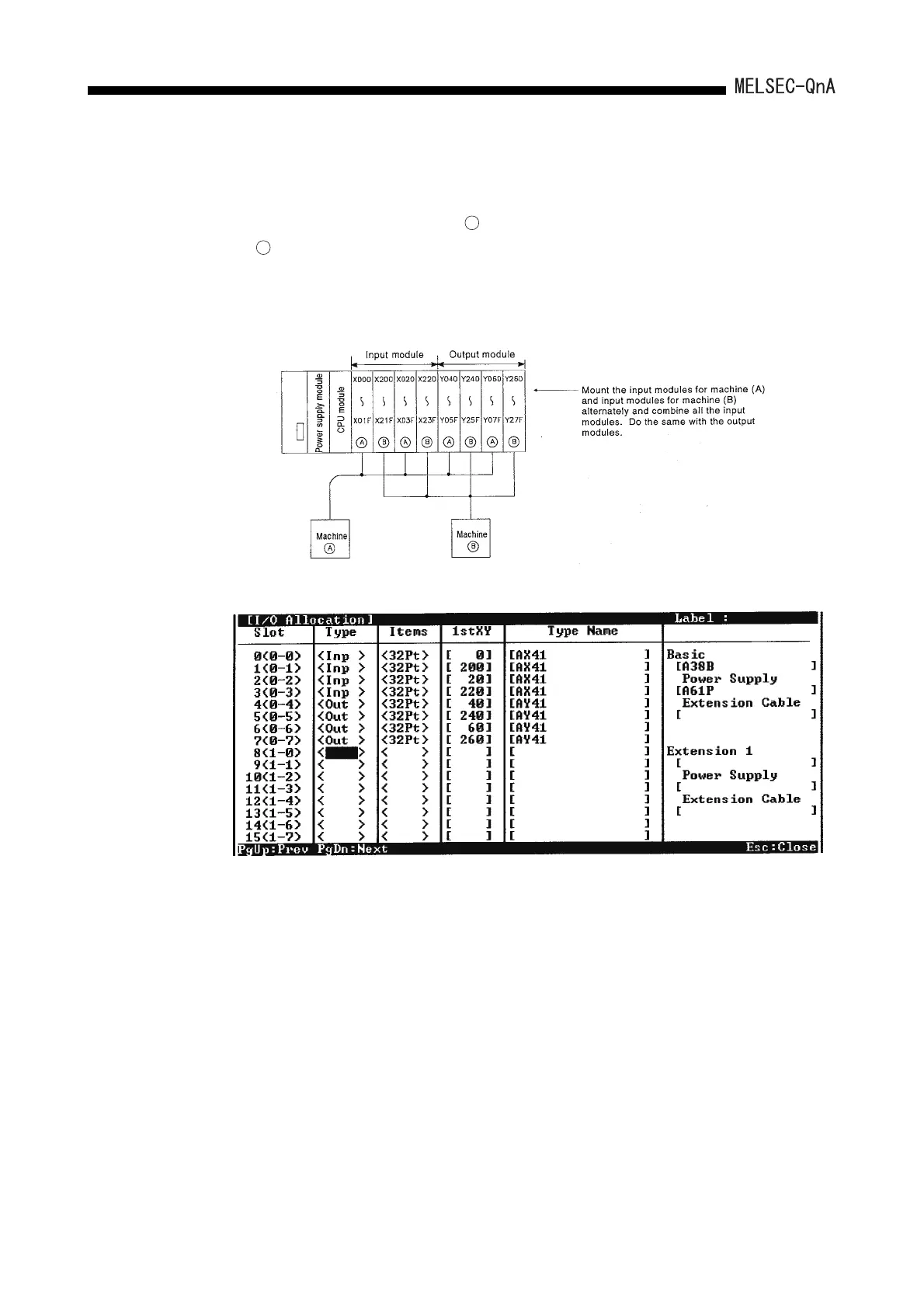

5. I/O NUMBER ASSIGNMENT
(3) When combining an input module and output module having non-consecutive I/O
numbers on a base unit
When controlling the machine (I/O numbers X0 to X3F, Y40 to Y7F) and machine
(I/O numbers X200 to X23F and Y240 to Y27F) with a single PLC, it is desired to
combine input modules and output modules on the base unit. To achieve this
operation, perform I/O assignment as follows.
(a) Loading status and I/O numbers to be set
(b) The example of I/O Allocation with GPP function
A
B
