8. DEBUGGING FUNCTION
POINT

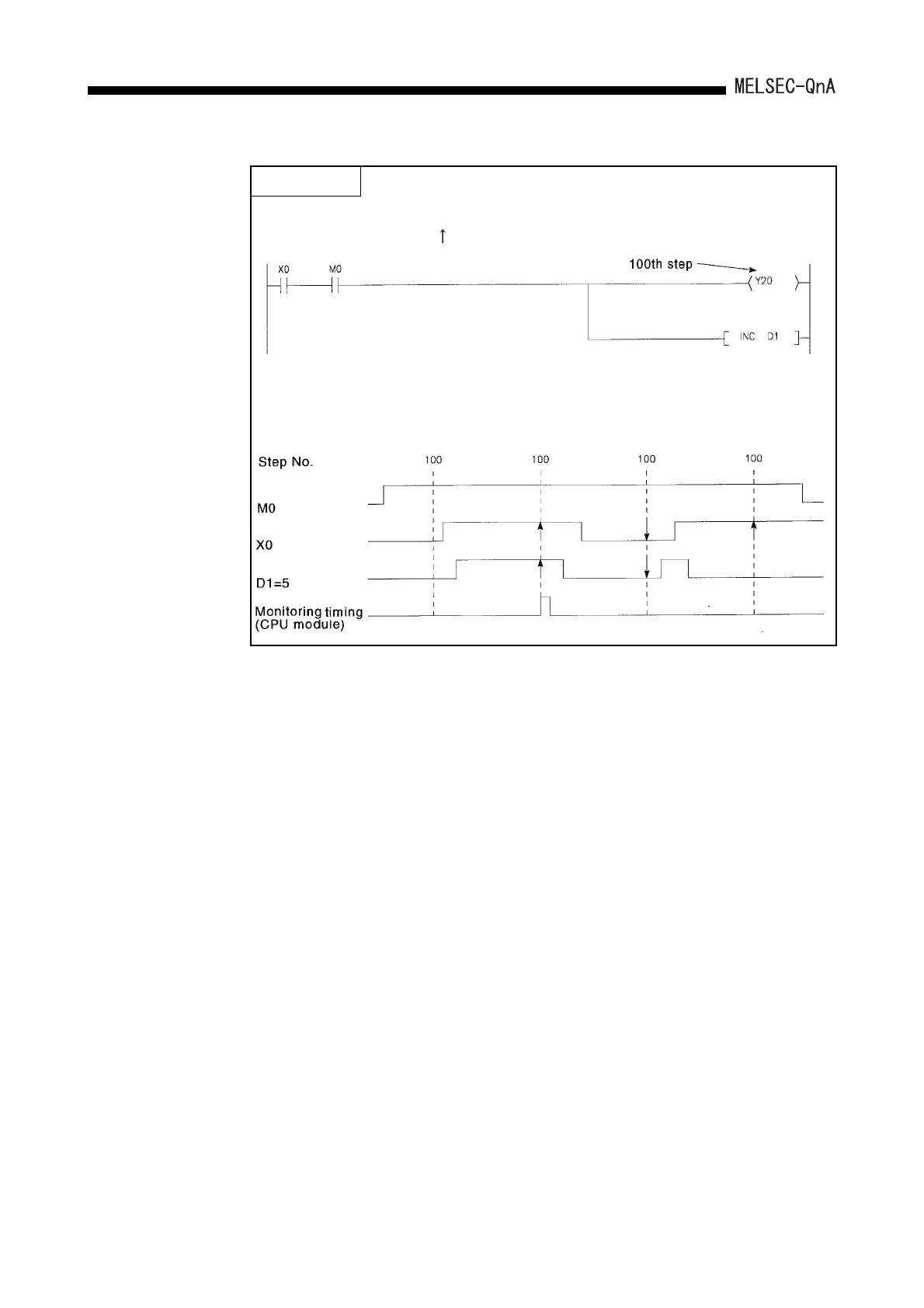

In the ladder block shown below, assuming that the detailed condition is set as
follows: "Step # [100] = < >, Word device [D1 ] = [K5 ]".
The monitor timing is shown below. However, the monitoring interval at a
peripheral device capable of GPP functions depends on the processing speed of
that peripheral device. Even if data changes occur faster than the monitor interval,
data can be collected only once during the interval.
