Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH
FUEL INJECTION NOZZLES FUEL SYSTEM
21.3 Reassembly
7  6  5  4  3  2  1

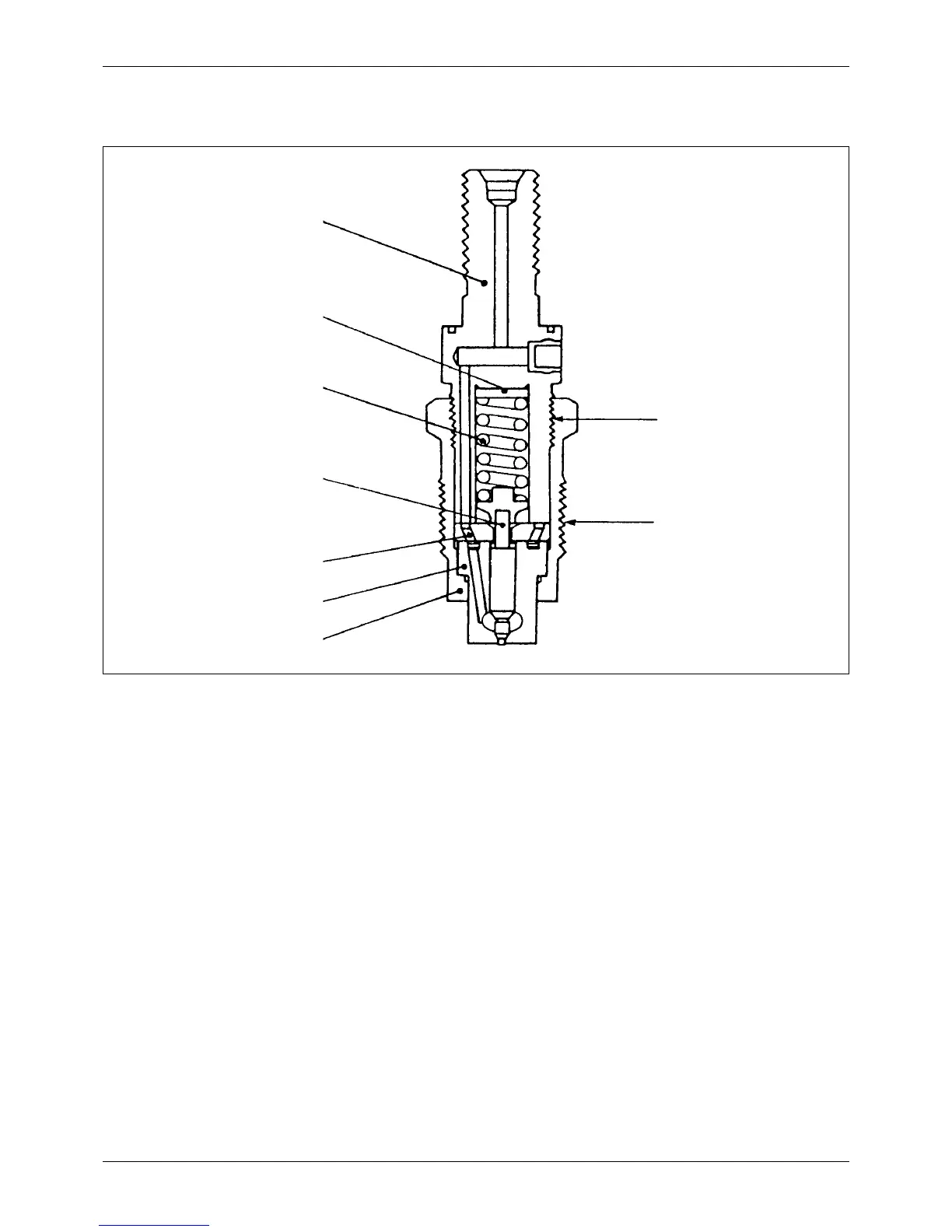

Figure 174 Ressembly sequence
Retaining nut
Tightening torque:
37 ± 2.5 N·m
(3.77 ± 0.25 kgf·m)
[27 ± 1.8 lbf·ft]
Tightening torque for fuel
injection nozzle:
59 ± 10 N·m
(6.0 ± 1 kgf·m)
[44 ± 7 lbf·ft]
7
6
5
4
3
2
1
