Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH
STARTER ELECTRICAL SYSTEM
3) Holding test
With the battery connected to terminals S and
the body of the magnetic switch, pull out the
pinion fully with fingers. The pinion should not
return to the original position when it is
released.
4) Return test
With the battery connected to terminals M and
the body of the magnetic switch, pull out the
pinion fully with fingers. The pinion should
return immediately to the original position
when it is released.
27.2 Removal
1. Disconnect the cables from the battery terminals.
Be sure to disconnect the negative (-) cable first.
2. Disconnect the wires from the starter.
3. Remove the two starter mounting nuts, and
dismount the starter.

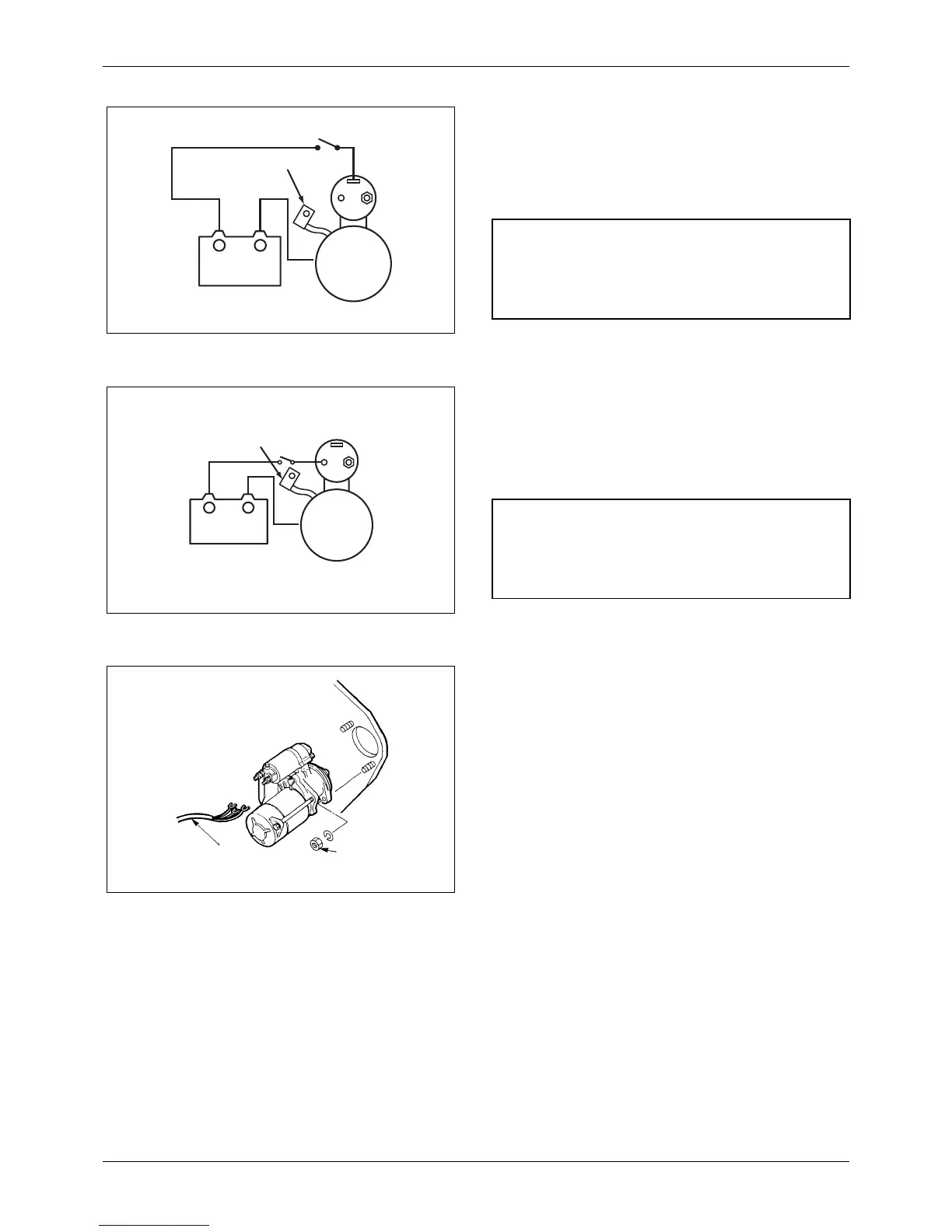

Figure 184 Holding test
+
12V
M
S
Disconnect connector
24V (option)
Battery
CAUTION
Do not supply electricity for more than 10 continuous
seconds.
Figure 185 Return test
+
12V
M
Disconnect connector
24V (option)
Battery
CAUTION
Do not supply electricity for more than 10 continuous
seconds.
Figure 186 Removal of starter
Nut
Wires
