Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ETR type stop solenoid
ENGLISH
ELECTRICAL SYSTEM
29.2 Solenoid specification
Notice that the housing is ungrounded.
Replace the complete solenoid if not within the above
mentioned specification.
NOTE
If the electrical system includes a control timer to stop
the engine, the starter switch should be turned in the
"OFF" position for at least 10 seconds before making
another start attempt in order to reset the control
timer automatically.

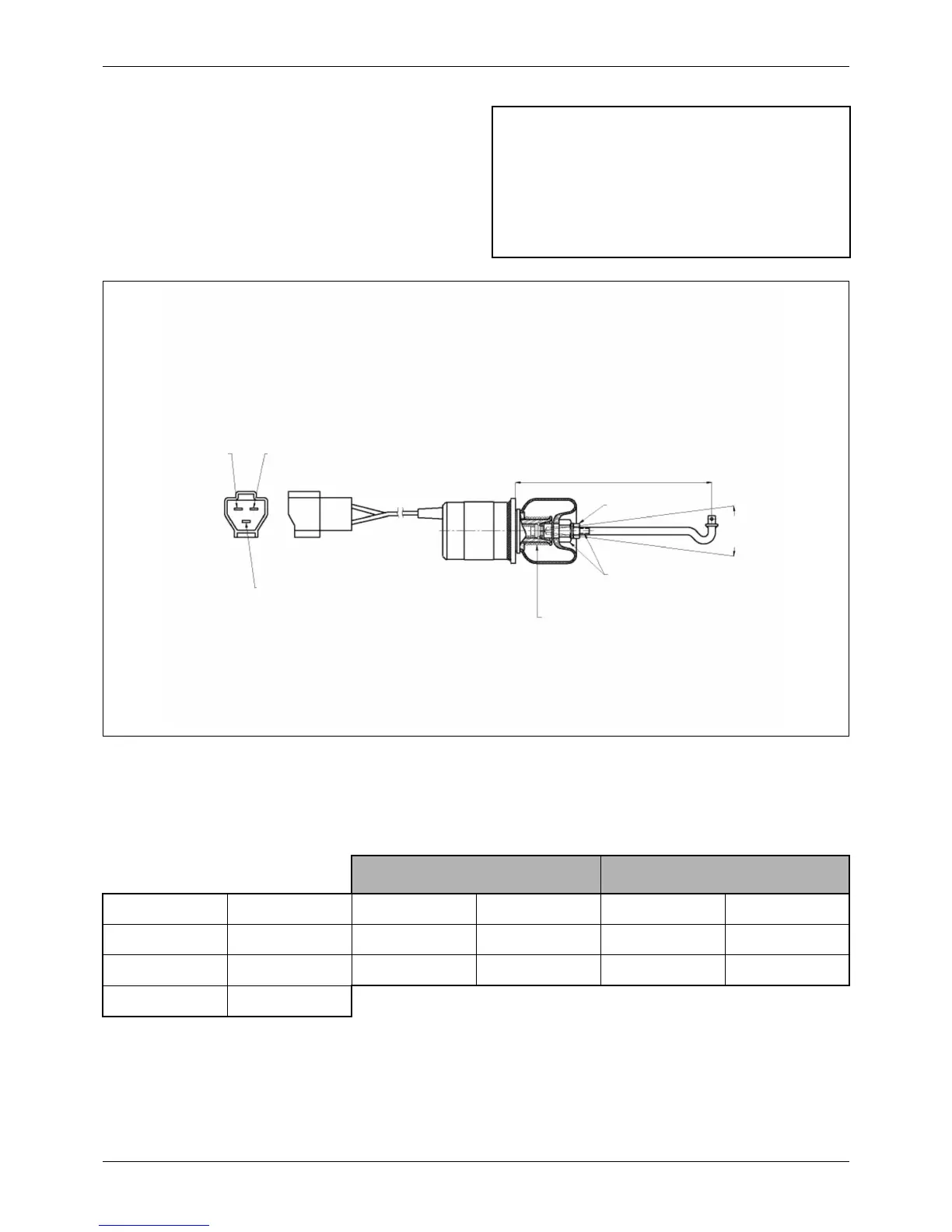

Figure 206
10º Min.
Spherical
movement
Pull coil
White
Hold coil
Red
Common ground
Black
Return spring
Colour code blue
Lock nut
Adjustment location
Note: Plunger shown in energized position
152±1
current resistance (+/-10%) at 20 ºC
connection wire color rated 12V rated 24V rated 12V rated 24V
hold coil red 55 A 29 A 11.15
Ω 41.35 Ω
pull coil white 1.1 A 0.6 A 0.217 Ω 0.817 Ω
common ground black
