Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM
27.4.4 Overrunning Clutch

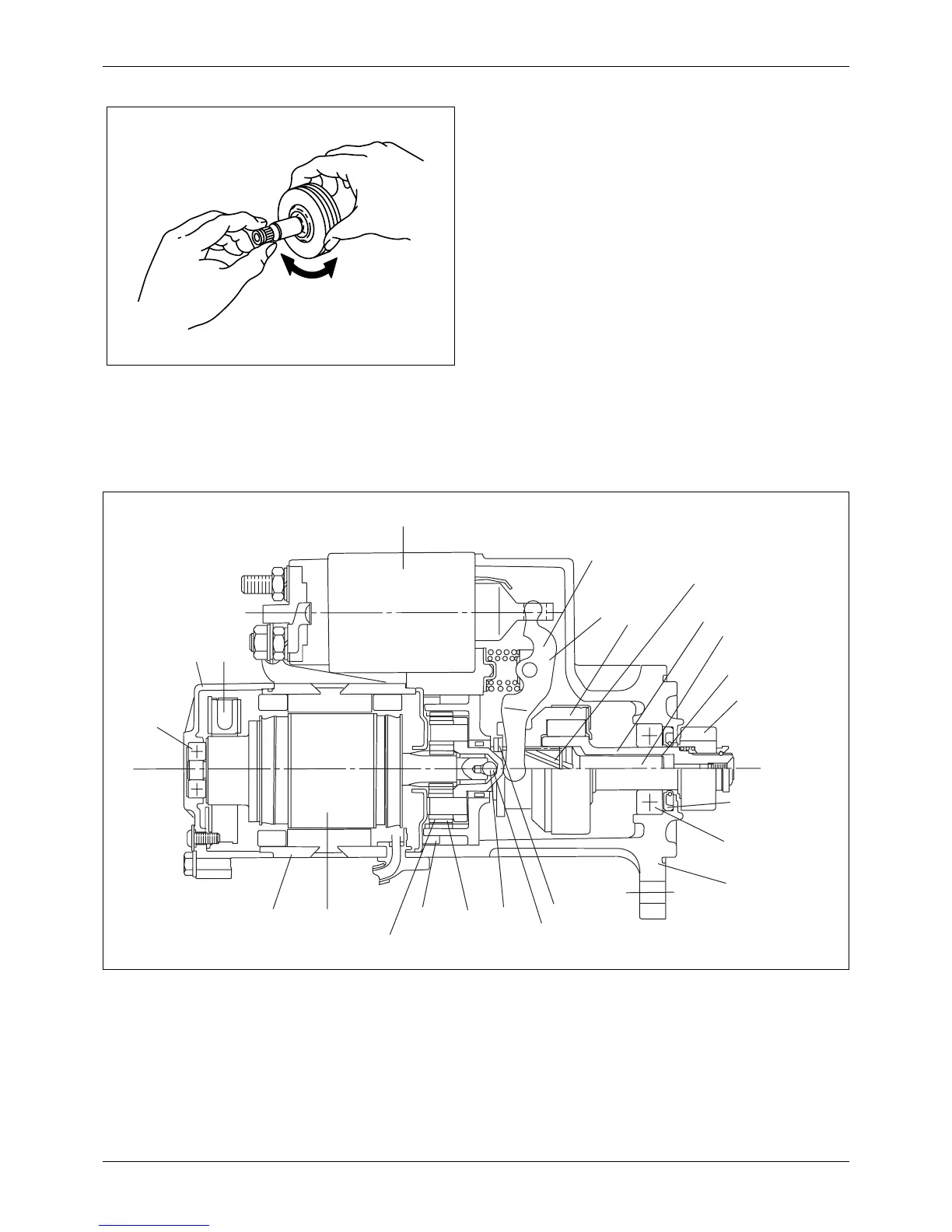

Make sure that the pinion shaft turns freely when
turned in the direction of driving (clockwise) and it is
locked when turned in the opposite direction. If not,
replace the overrunning clutch.
27.5 Reassembly
To reassemble, follow the disassembly sequence in
reverse. Be sure to observe the following during
reassembly.
Reassembly sequence
18 → 17 → 16 → 12 → 13 → 14 → 15 → 1 → 10 → 11
→ 9 → 8 → 5 → 6 → 7 → 4 → 3 → 2
Apply grease
Apply grease
Apply grease
Apply grease
Apply grease to sliding
surface of lever
2
4
3
7
5
6
9
10
8
12
16
17
18
1
13
15
14
11
