Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM
27.3 Disassembly

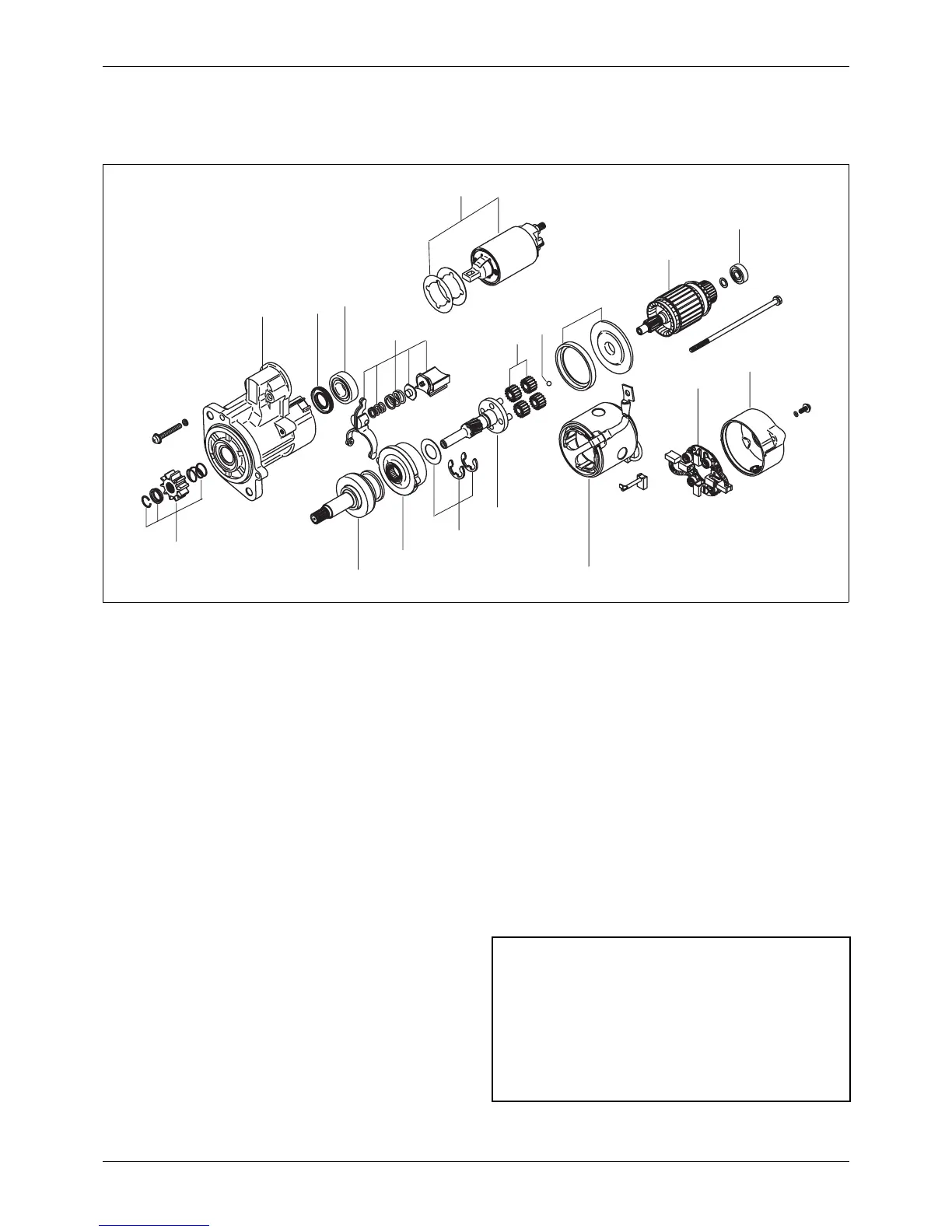

Disassembly sequence
1. Pinion set
2. Magnetic switch
3. Rear bracket
4. Brush holder
5. Yoke
6. Armature
7. Ball bearing
8. Ball
9. Packing set
10. Gear
11. Lever
12. Washer set
13. Gear shaft
14. Internal gear
15. Overrunning clutch
16. Front bracket
17. Bearing
18. Oil Seal
2
11
17
18
16
1
15
14
12
13
5
10
8
9
6
7
4
3
CAUTION
Before disassembling or replacing the following parts,
remove the pinion.
Remove the pinion before disassembling:
1. Front bracket, or bracket bearing and oil seal
2. Reduction gears
3. Overrunning clutch
