53 / 174
Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
TIMING GEARS, CAMSHAFT AND OIL
PAN
ENGLISH
ENGINE MAIN PARTS
9.3 Reassembly
1. Installing front end plate
1) Put the front end plate and gasket on the front
face of the crankcase. Make sure the locating
dowels enter their holes in the plate and
gasket.
2) Tighten two bolts to the specified torque.
2. Installing camshaft
1) Apply engine oil to the journals and lobes of
the camshaft.
2) Install the camshaft (with gear) in the
crankcase.
3) Tighten the thrust plate bolts to the specified
torque with a torque wrench and socket
(34491–00300).
4) Make sure the camshaft rotates smoothly.
Move the camshaft back and forth in the axial
direction to make sure it has correct end play.

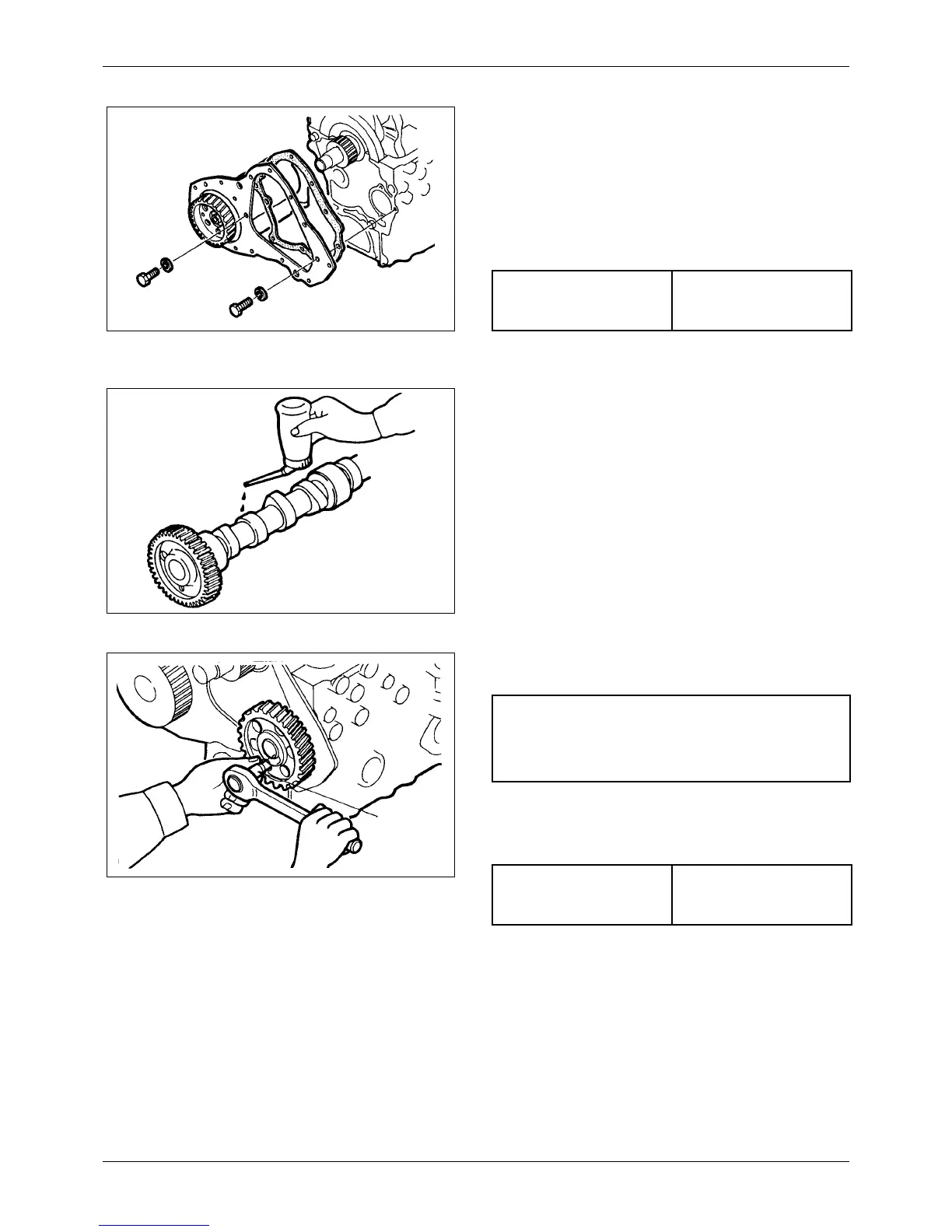

Figure 81 Installing front end plate
Tightening torque
12 ± 1 N·m
(1.2 ± 0.1 kgf·m)
[9 ± 1 lbf·ft]
Figure 82 Applying engine oil to camshaft
Apply engine oil
Figure 83 Installing camshaft
Socket
NOTE
Do not cause damage to the journals and lobes.
Tightening torque
12 ± 1 N·m
(1.2 ± 0.1 kgf·m)
[9 ± 1 lbf·ft]
To Next Page
