Mitsubishi S4Q2 - 9 Timing Gears, Camshaft and Oil Pan; Disassembly

43 / 174
Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
TIMING GEARS, CAMSHAFT AND OIL
PAN
ENGLISH
ENGINE MAIN PARTS
ENGINE MAIN PARTS
9 TIMING GEARS,
CAMSHAFT AND OIL
PAN
9.1 Disassembly
1. Crankshaft pulley
2. Cover
3. Timing gear case
4. Baffle plate
5. Idler gear
6. Oil pan
7. Oil pump
8. Camshaft
9. Front end plate

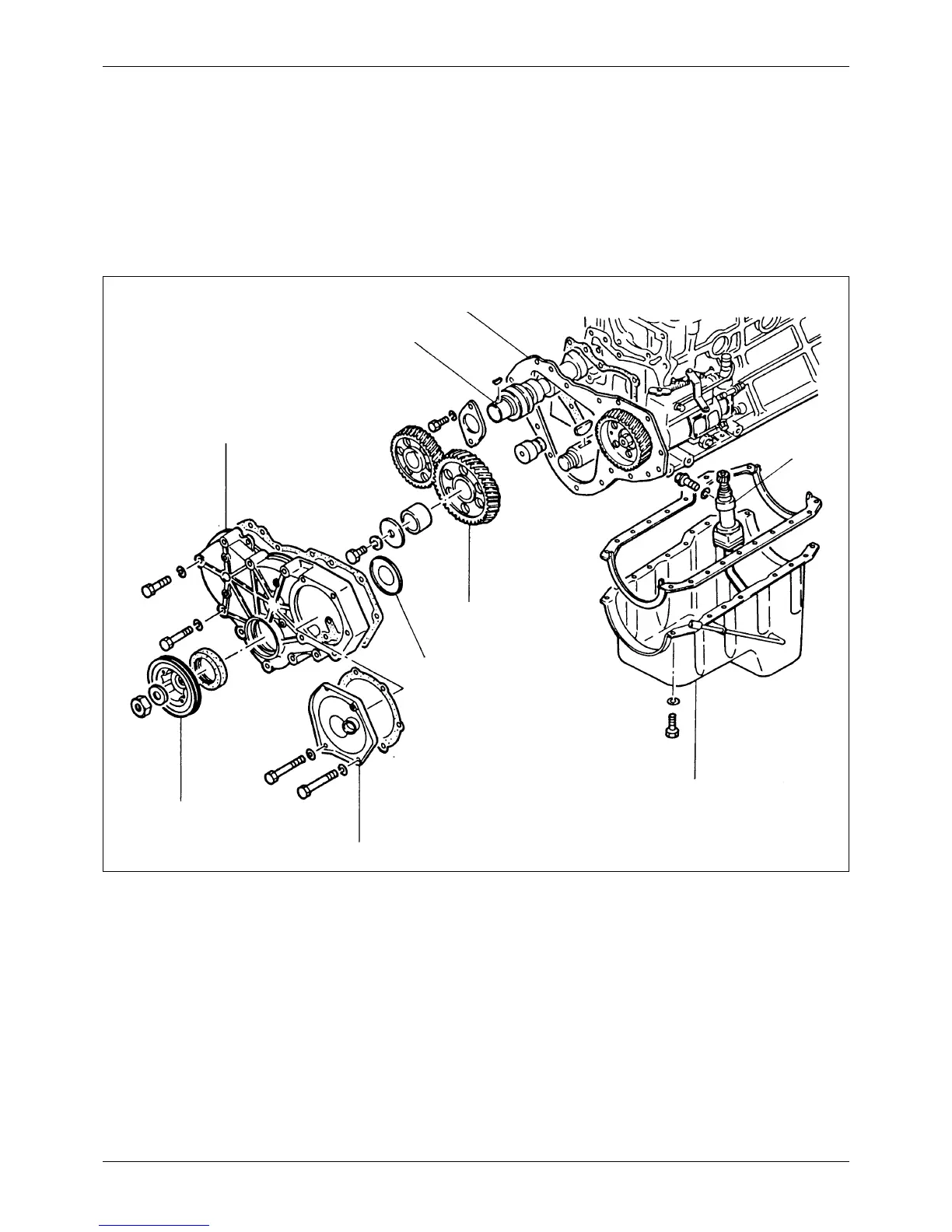

Figure 58 Disassembly sequence
8
9
3
7
1
6
5
2
4
