Service Manual Mitsubishi SQ-Series diesel engines

Version 08/2004

ENGLISH

CYLINDER HEADS AND VALVE

MECHANISM ENGINE MAIN PARTS

ENGINE MAIN PARTS

7 CYLINDER HEADS AND

VALVE MECHANISM

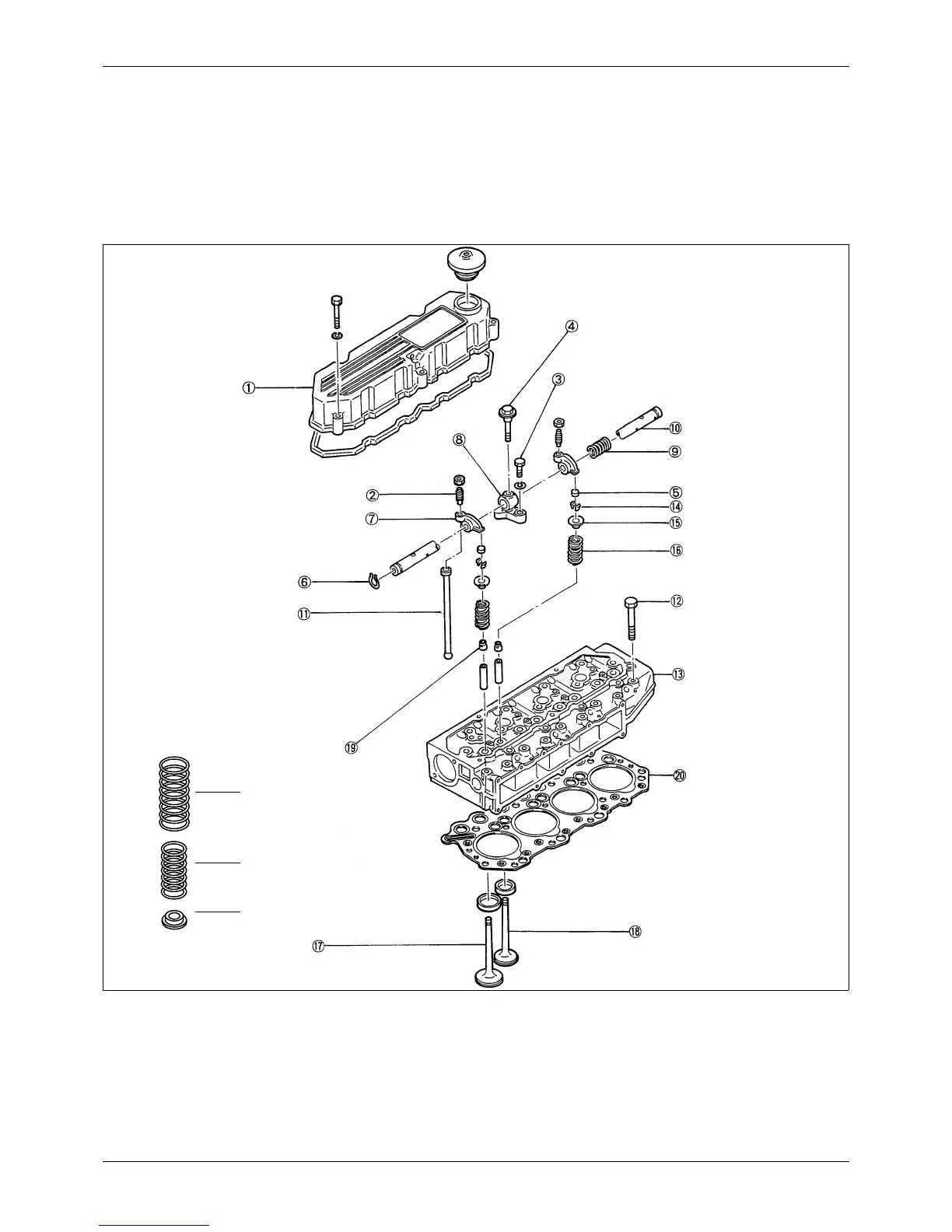

7.1 Disassembly

1. Rocker cover

2. Adjusting screw

3. Bolt (short)

4. Bolt (long)

5. Valve cap

6. Snap ring

7. Rocker arm

8. Rocker shaft bracket

9. Rocker shaft spring

10. Rocker shaft

11. Valve pushrod

12. Cylinder head bolt

13. Cylinder head

14. Valve cotters

15. Upper valve retainer

16. Valve spring

17. Valve (inlet)

18. Valve (exhaust)

19. Valve stem seal

20. Cylinder head gasket

21. Inner valve spring

22. Lower valve spring
