Service Manual Mitsubishi SQ-Series diesel engines
V
ersion 08/2004
ALTERNATOR
ENGLISH
ELECTRICAL SYSTEM
28.3

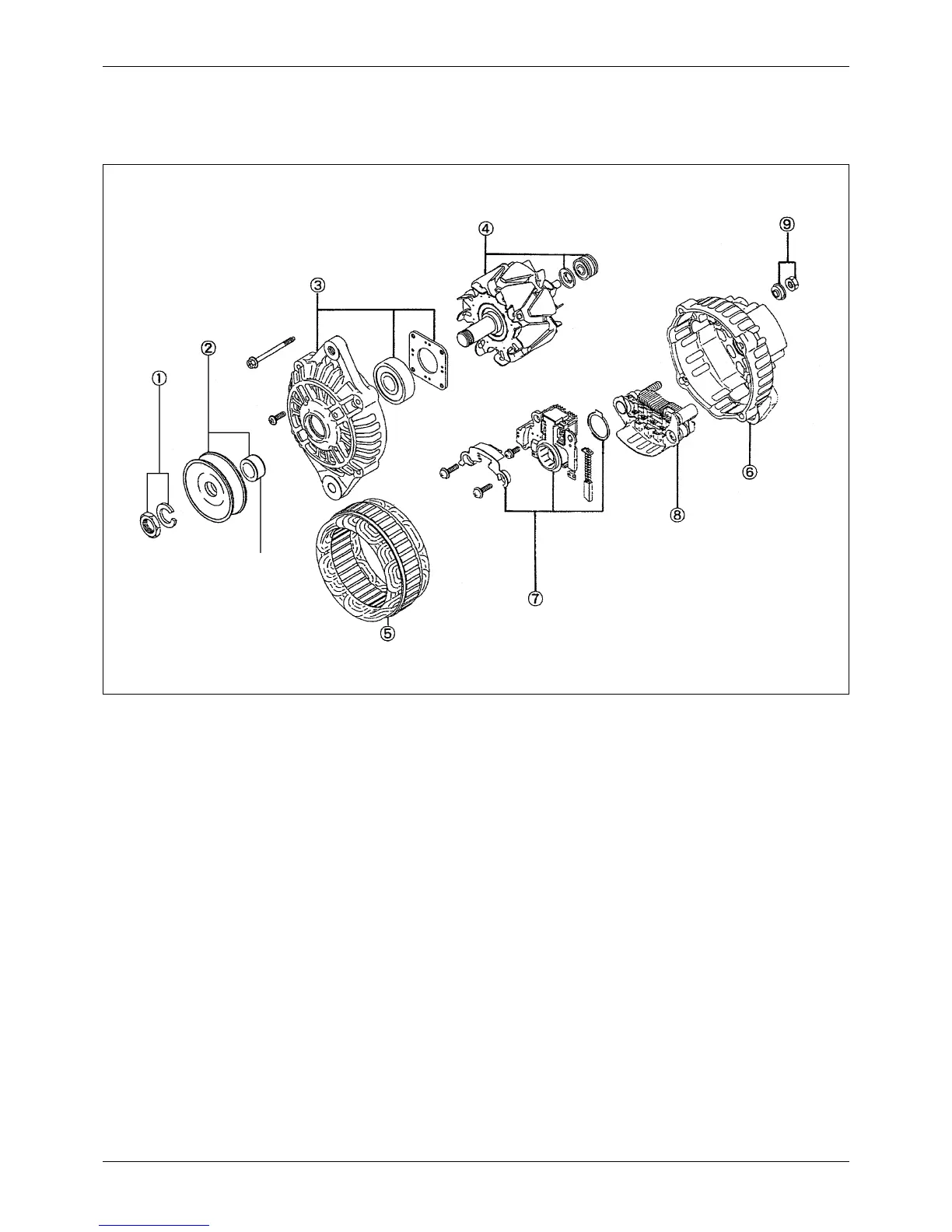

Disassembly
Disassembly sequence
1.
Nut and washer
2.
Pulley and spacer
3.
Front bracket assembly
4.
Rotor assembly
5.
St
ator
6.
Rear brac
ket
7.
Regulator as
sembly
8.
Rectifier assembly
9.
Nut set
Not provided in 24V
-35A
(A3TN5776)
126
128
