Mitutoyo AT211 - Installing the Intermediate Support

13
2 Setup for Installation
No. 99MBE011A
2.2.4 Installing the Intermediate Support
Tips
Install the intermediate support for a scale unit that is xed at both ends and has an e󰀨ective length of 500 mm
or more.

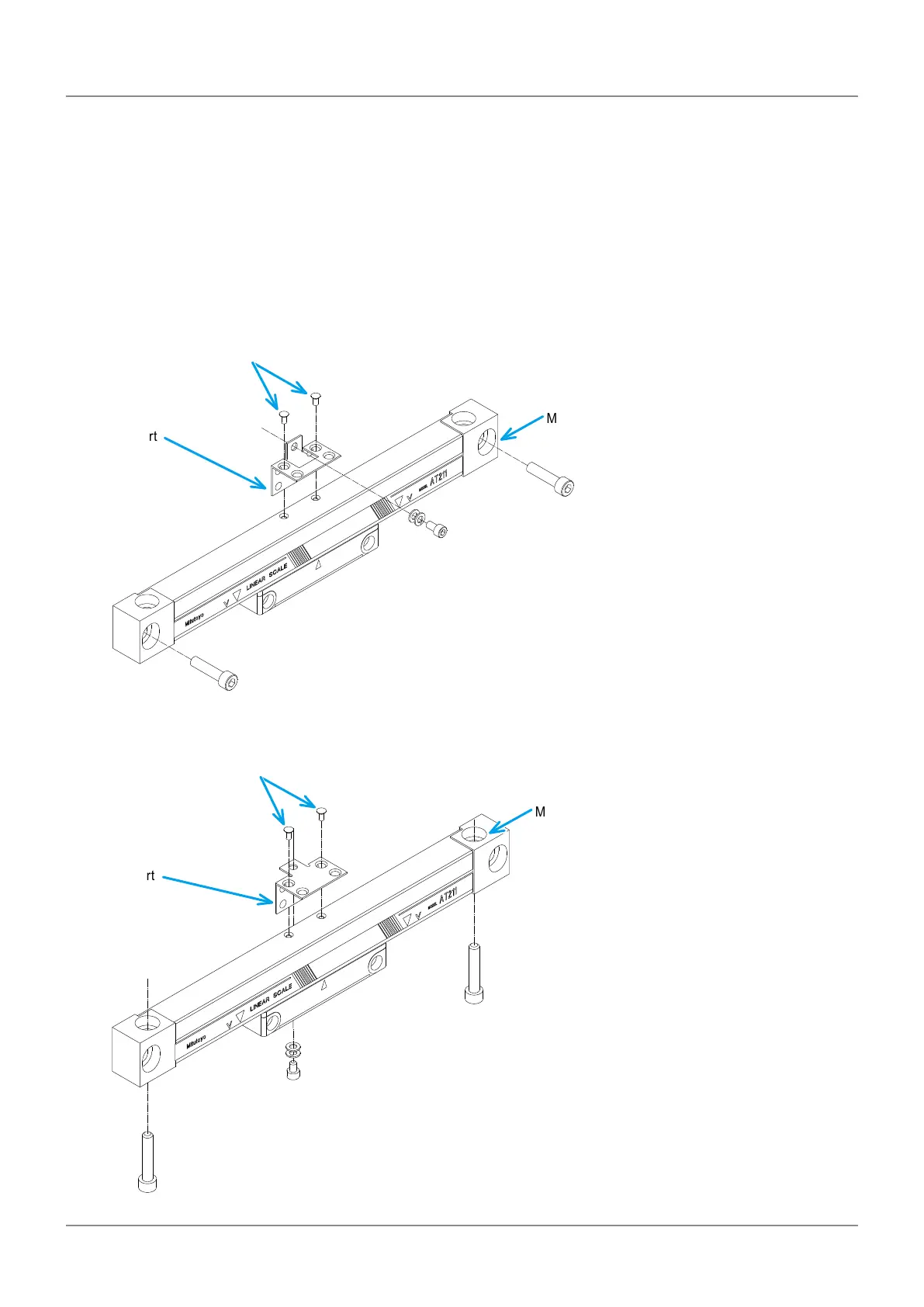

Use the following procedure to install the intermediate support on the scale main unit.

To x the scale main unit using mounting hole A
Intermediate support mounting screw (M3 countersunk screw)
Intermediate
support
Mounting hole A

To x the scale main unit using mounting hole B
Intermediate support mounting screw (M3 countersunk screw)
Intermediate
support
Mounting hole B
